10.4 Inch TFT LCD Display 1024×768 LVDS High Brightness 600nits Wide Temperature LCD Display For Automotive

10.4 Inch Automotive Display Overview

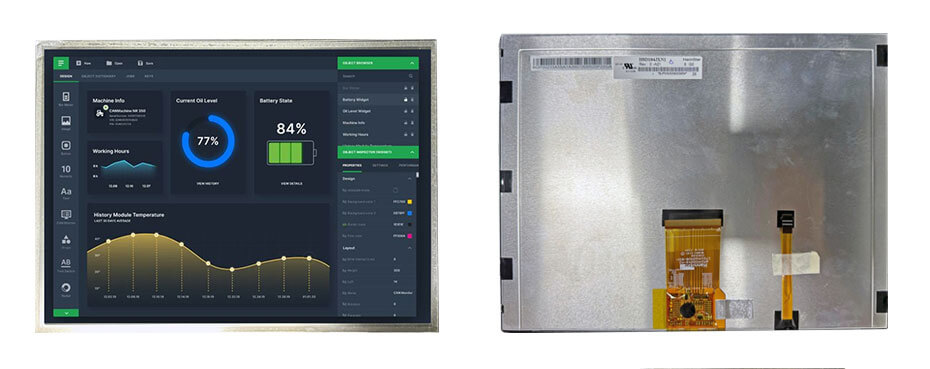

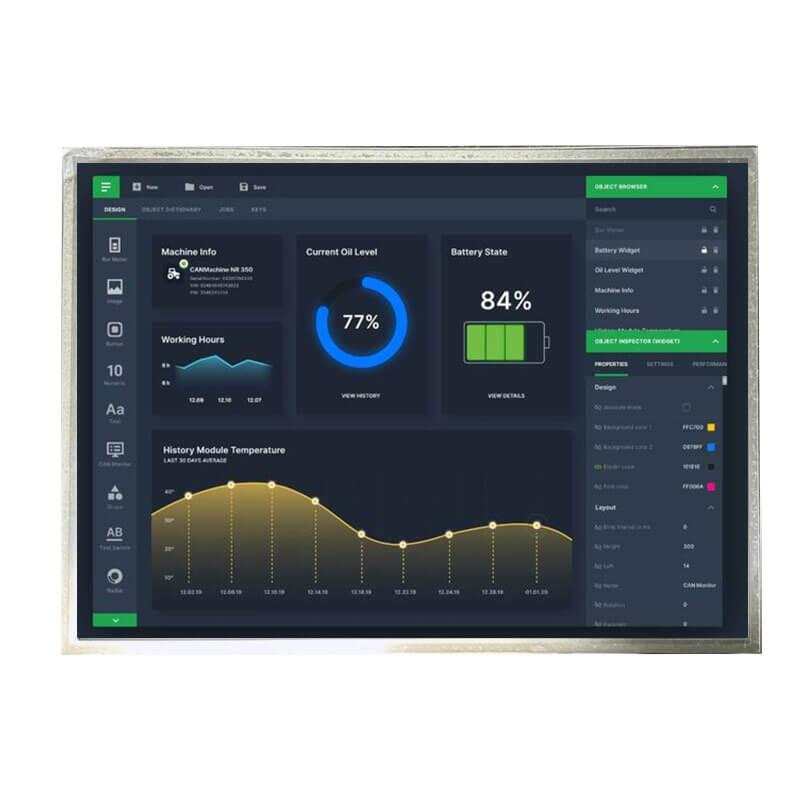

HSD104JXN1-A21 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 211.2(W)×158.48(H) mm, outline size of 225.8(W)×174.3(H)×9.22(D) mm, viewing area size of 213.2(W)×160.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 375g (Typ.). As a IPS Pro, Normally Black, Transmissive LCM product, HSD104JXN1-A21 can provides 600 cd/m² display brightness 900:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 72% (NTSC). This product adopted 8S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. HSD104JXN1-A21 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/12.1/25/-10V (Typ.)(DVDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

More 10.4 Inch Automotive Display For Reference
TM104SDHG40 (800×600, LVDS, TN, 400nits, -20~70°C, 243×184mm)
HSD104JPW1-B10 (960×1280, LVDS, IPS, 1000nits, -30~85°C, 172.4×227.9mm)
HSD104JXN1-A21 (1024×768, LVDS, IPS, 600nits, -30~85°C, 225.8×174.3mm)
