10.4 Inch TFT LCD Display 800×600 LVDS LCD Display For Automotive

10.4 Inch Automotive Display Overview

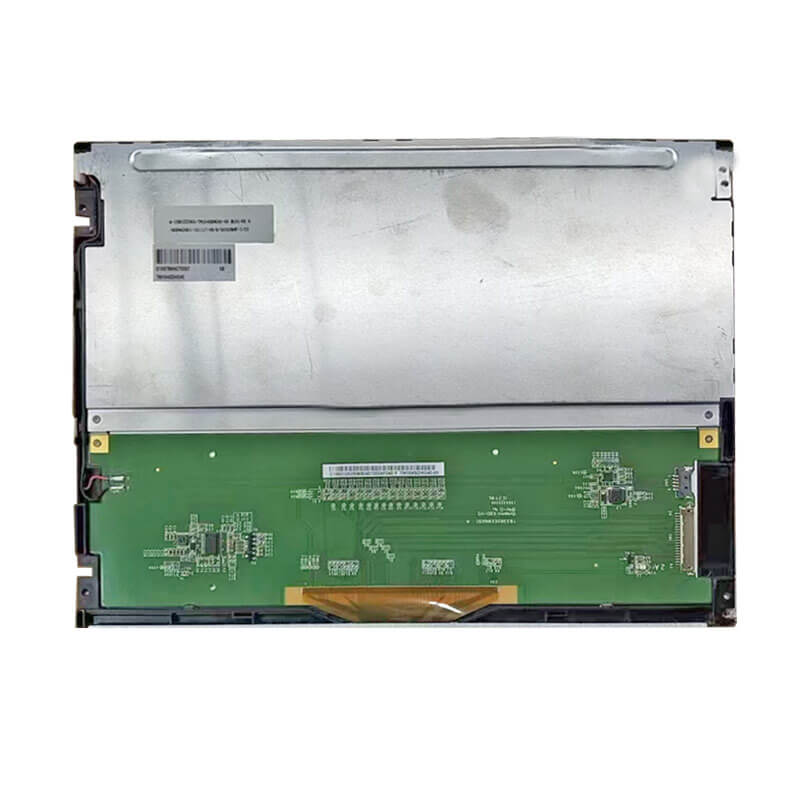

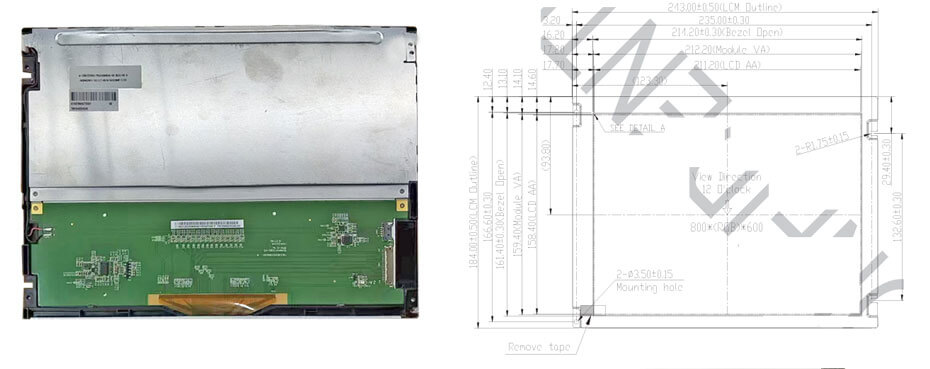

TM104SDHG40 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 211.2(W)×158.4(H) mm, outline size of 243(W)×184(H)×7(D) mm, viewing area size of 214.2(W)×161.1(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of TBD. As a TN, Normally White, Transmissive LCM product, TM104SDHG40 can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. TM104SDHG40 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3/11.0/25/-7.0V (Typ.)(VCC/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

More 10.4 Inch Automotive Display For Reference
TM104SDHG40 (800×600, LVDS, TN, 400nits, -20~70°C, 243×184mm)
HSD104JPW1-B10 (960×1280, LVDS, IPS, 1000nits, -30~85°C, 172.4×227.9mm)
HSD104JXN1-A21 (1024×768, LVDS, IPS, 600nits, -30~85°C, 225.8×174.3mm)
