10.3 Inch TFT LCD Display 1920×720 LVDS High Brightness 800nits Wide Temperature LCD Display For Automotive

10.3 Inch Automotive Display Overview

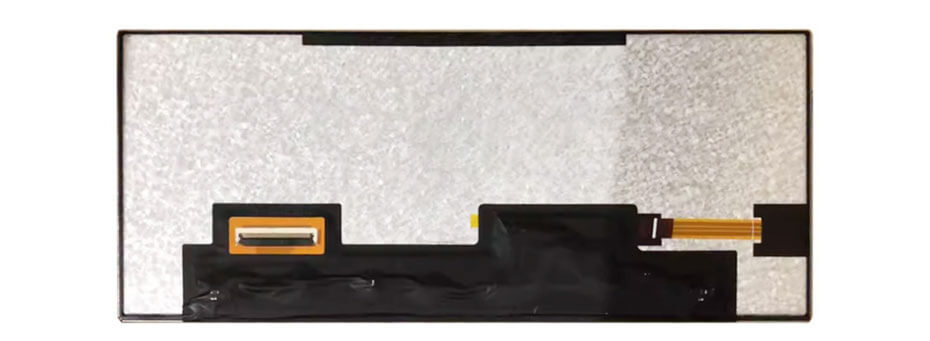

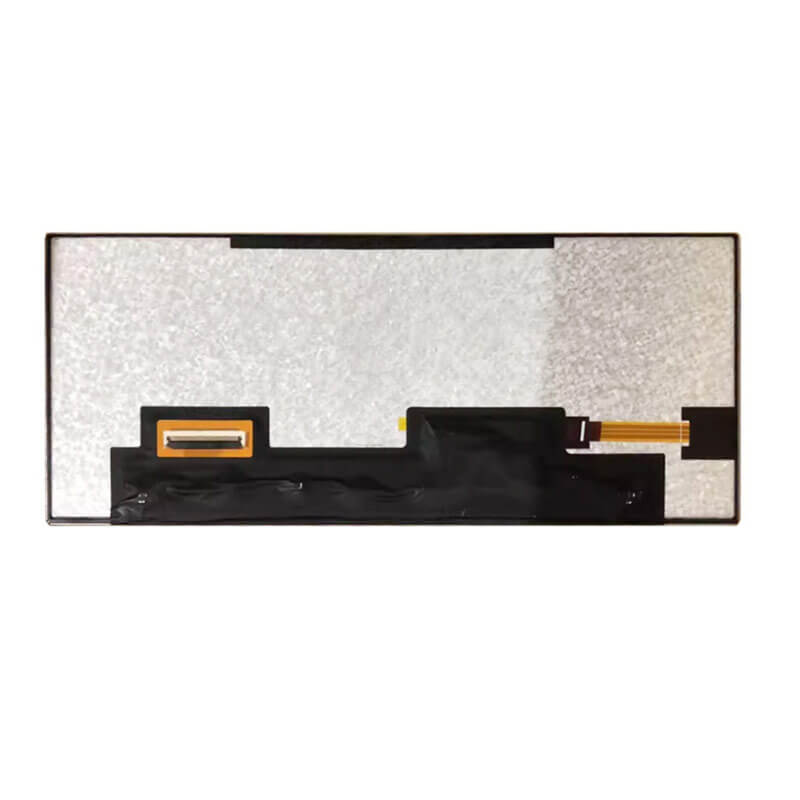

TM103XDGP01 supports display 1920(RGB)×720 with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 243.65(W)×91.37(H) mm, outline size of 262.04(W)×110.3(H)×11.9(D) mm, viewing area size of 245.65(W)×93.66(H) mm, with surface treament of Hard coating, net weight of 447g (Typ.). As a SFT, Normally Black, Transmissive LCM product, TM103XDGP01 can provides 800 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 75% (NTSC). This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM103XDGP01 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 10.3 Inch Automotive Display For Reference
HSD103KPW2-A10 (1920×720, LVDS, IPS, 850nits, -30~85°C, 259.8×112mm)
TX26D206VM0BAA (1920×720, LVDS, IPS, 1000nits, -40~85°C, 259×111.4mm)
ET103BA01-T (1920×720, LVDS, IPS, 1000nits, -20~70°C, 258.8×111.1mm)
TM103XDGP01 (1920×720, LVDS, IPS, 800nits, -30~85°C, 262.04×110.3mm)
