6"-15.6" Touch Screen (10.1")

10.1 Inch Capacitive Touch Screen GT9271 G+G Sructure Touch Display For Industrial Instruments Home Appliances

Part No.:ET101CTP01
Size:10.1″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:251x165mm
Active Area:217x136mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

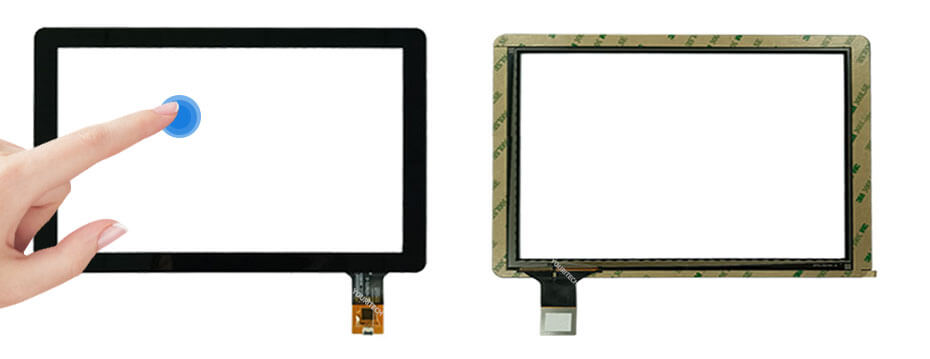

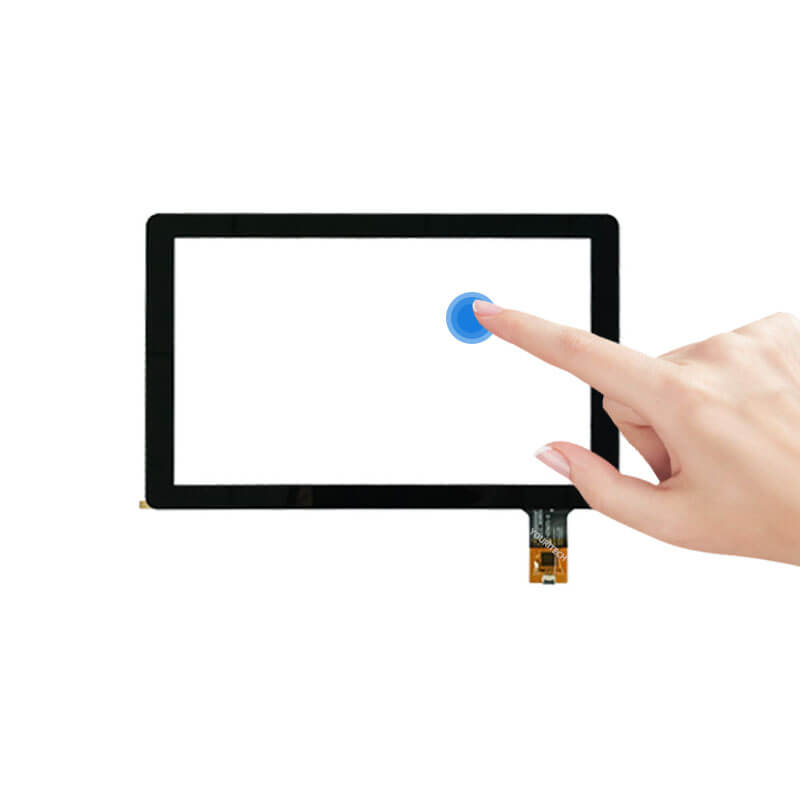

10.1 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C
Display Area: 217x136 mm
Outline Dim.: 251x165 mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C

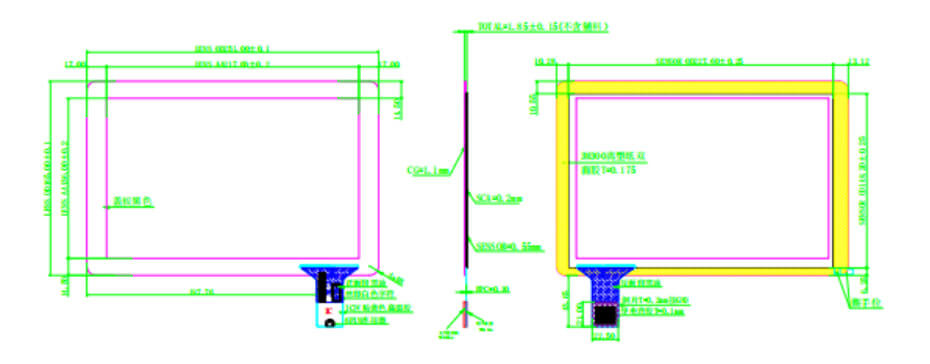

10.1 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
