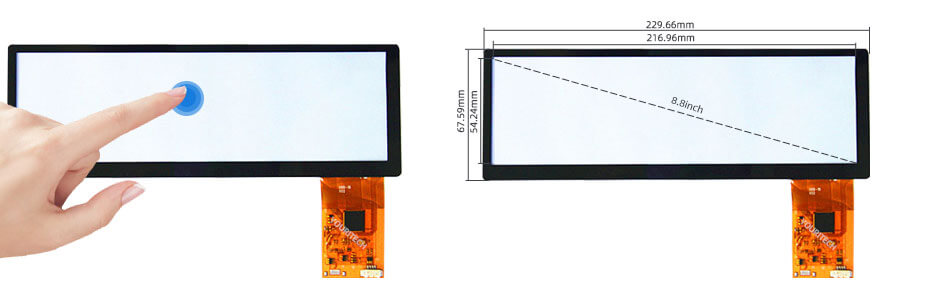

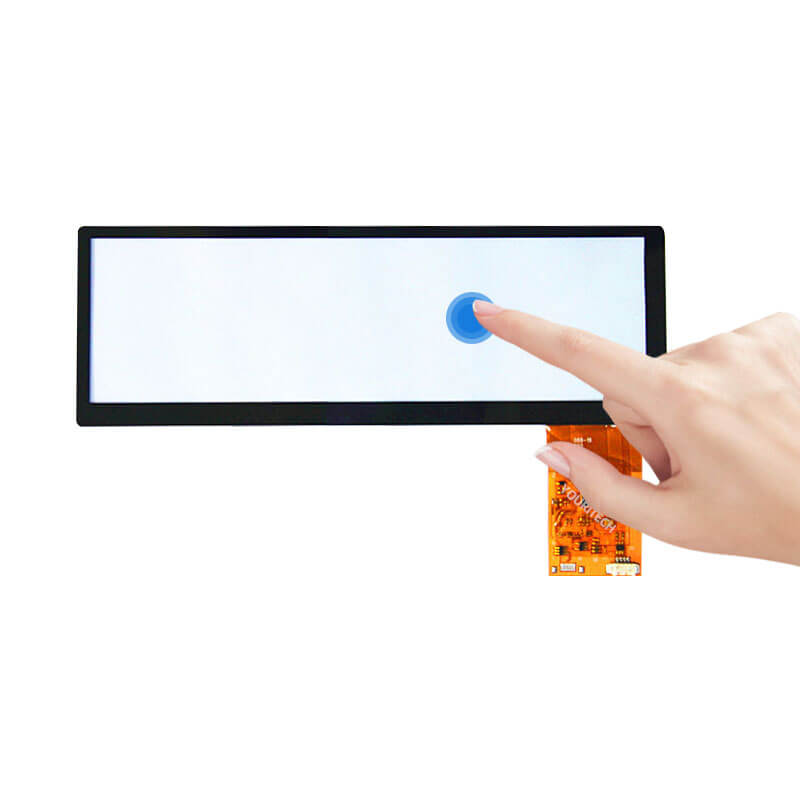

8.8 Inch Bar Capacitive Touch Screen 1280x320 G+G 10-point Touch USB/I2C ILI2511 Touch Display

Part No.:ET088CTP01
Size:8.8″ inch
Resolution:1280x320
Panel Interface:I2C,USB
Display mode:PCAP
Outline Dimension:229.66x67.56mm
Active Area:217.96x55.24mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

8.8 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C
Display Area: 217.96x55.24 mm
Outline Dim.: 229.66x67.56 mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C

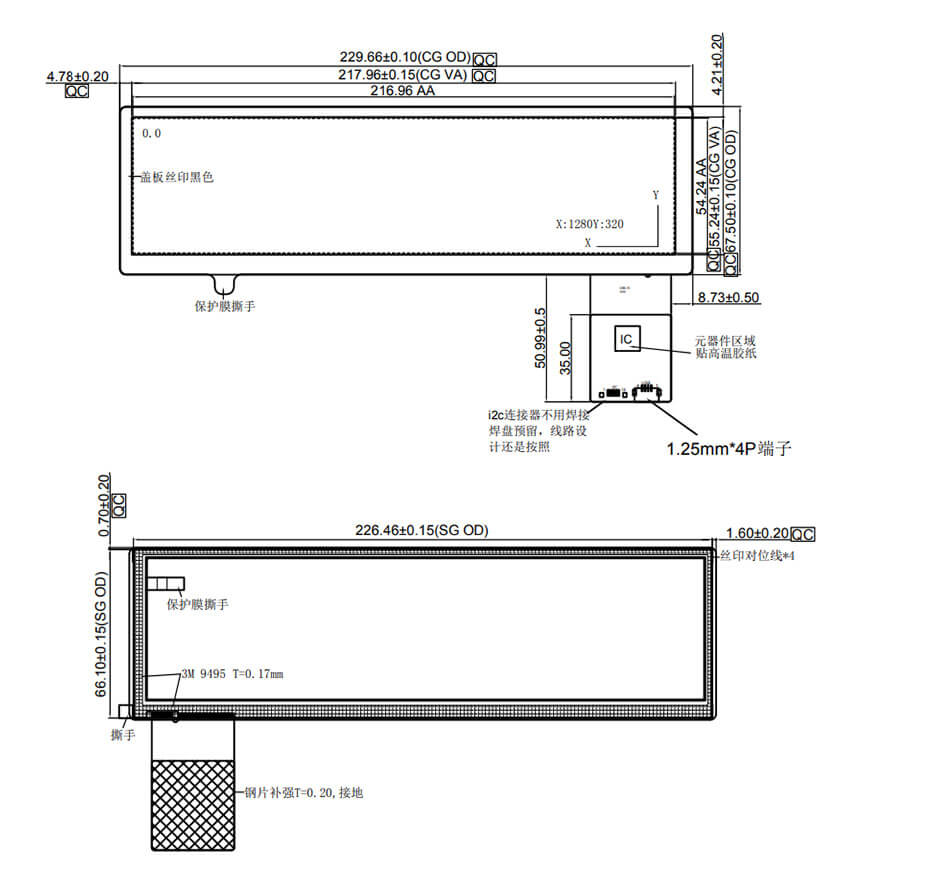

8.8 Inch Capacitive Touch Screen Drawing

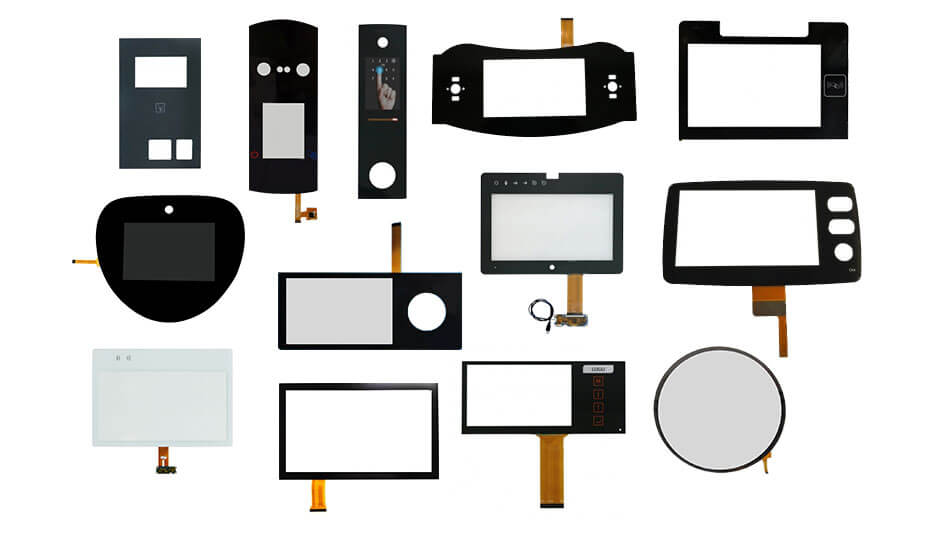

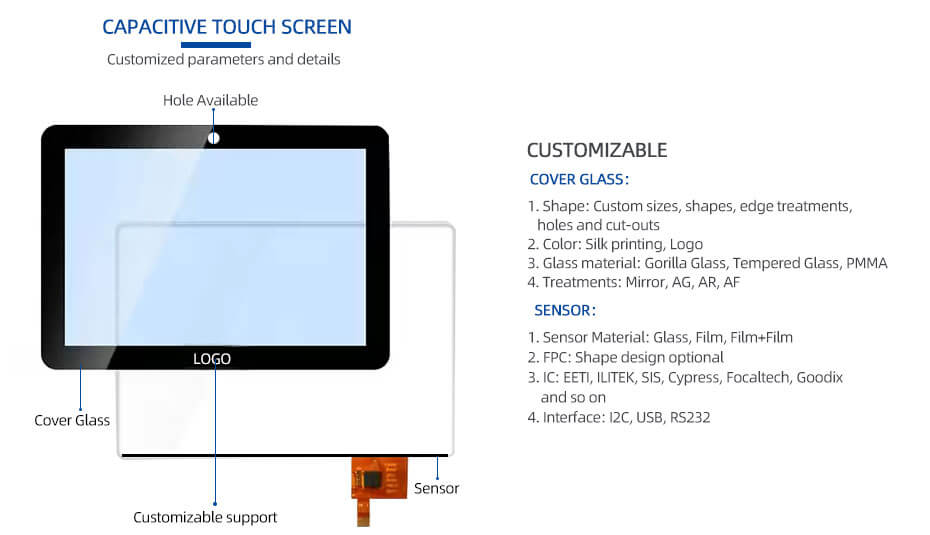

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
