6"-15.6" Touch Screen (10.1")

10.1 Inch PCAP Touch Screen G/G Mechanism EETI IC COB Type USB Multi-touch Display

  • Part No.:ET101CTP03
  • Size:10.1″ inch
  • Resolution:Optional
  • Panel Interface:USB
  • Display mode:PCAP

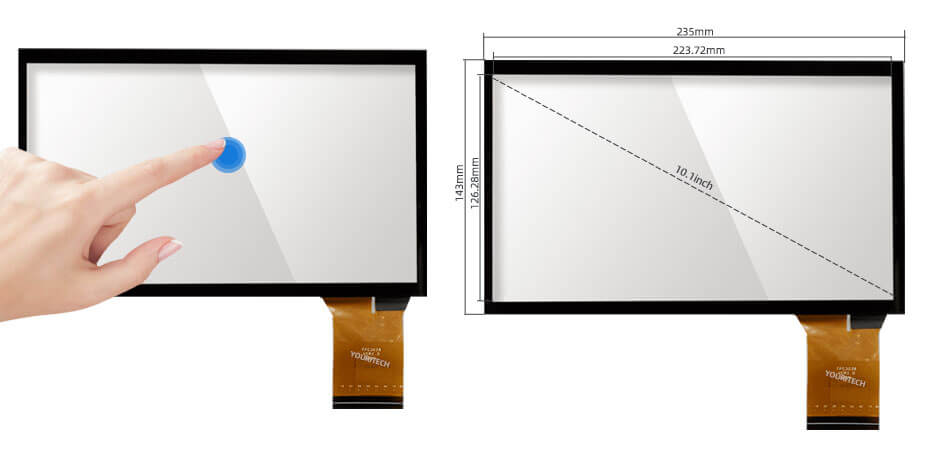

  • Outline Dimension:235x143mm
  • Active Area:223.72x126.28mm
  • Viewing Angle L/R/U/D:Full view
  • Brightness（cd/m2）:Optional
  • Operation / Storage Temp:-10~60°C / -20~70°C
  • Touch:yes
Get a quote



10.1 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: USB
Display Area: 228.31x148.39 mm
Outline Dim.: 235x143 mm
Operation Temperature: -10 ~ 60°C
Storage Temperature: -20 ~ 70°C

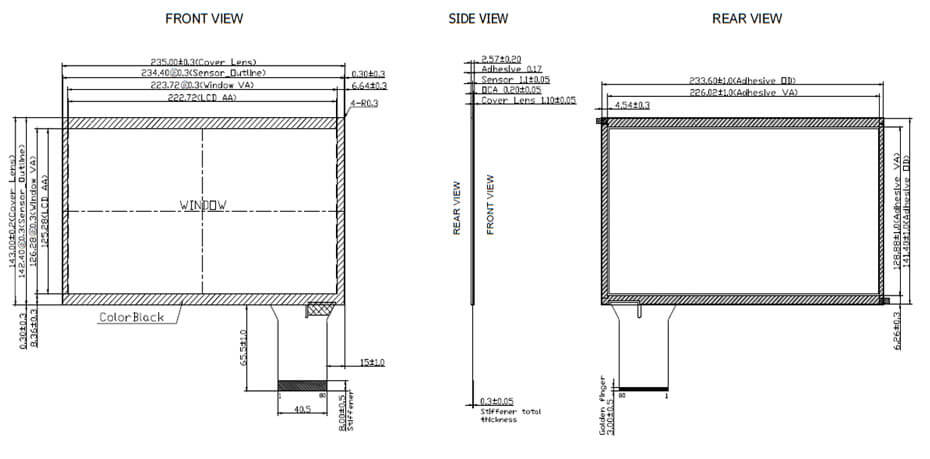

10.1 Inch Capacitive Touch Screen Drawing





The touch screens can be matched and integrated by all kinds of display panels



SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
