6"-15.6" Touch Screen (10.1")

10.1 Inch Capacitive Touch Screen G+G Multi-touch 16:10 Capacitive Touch Display For AUO Innolux BOE

  • Part No.:ET101CTP04
  • Size:10.1″ inch
  • Resolution:Optional
  • Panel Interface:I2C,USB,UART
  • Display mode:PCAP
  • Outline Dimension:249.96x176.6mm
  • Active Area:217.56x136.20mm
  • Viewing Angle L/R/U/D:Full view
  • Brightness（cd/m2）:Optional
  • Operation / Storage Temp:-20~70°C / -40~80°C
  • Touch:yes
Get a quote

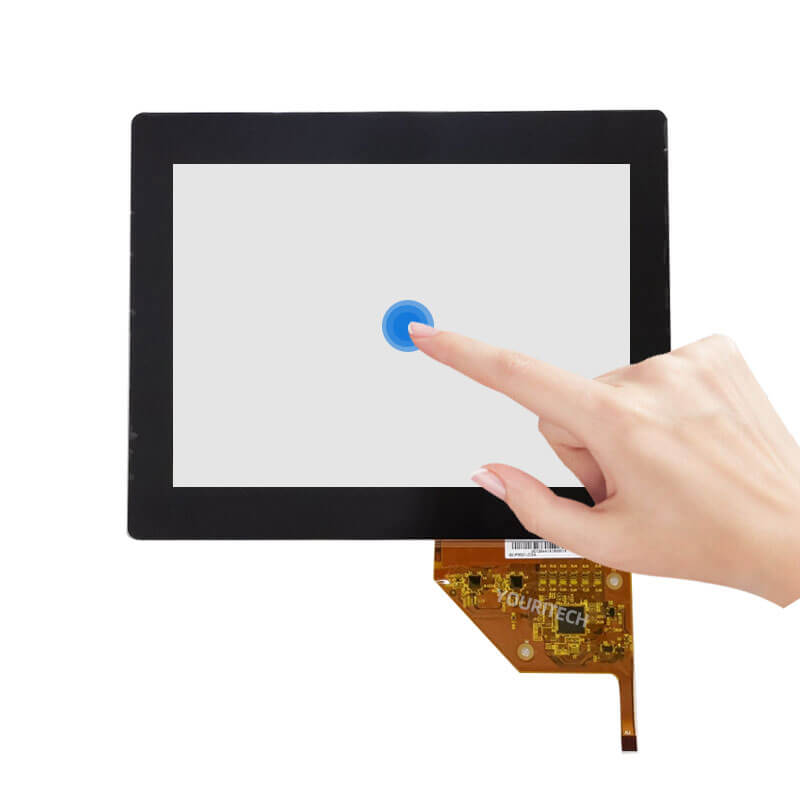

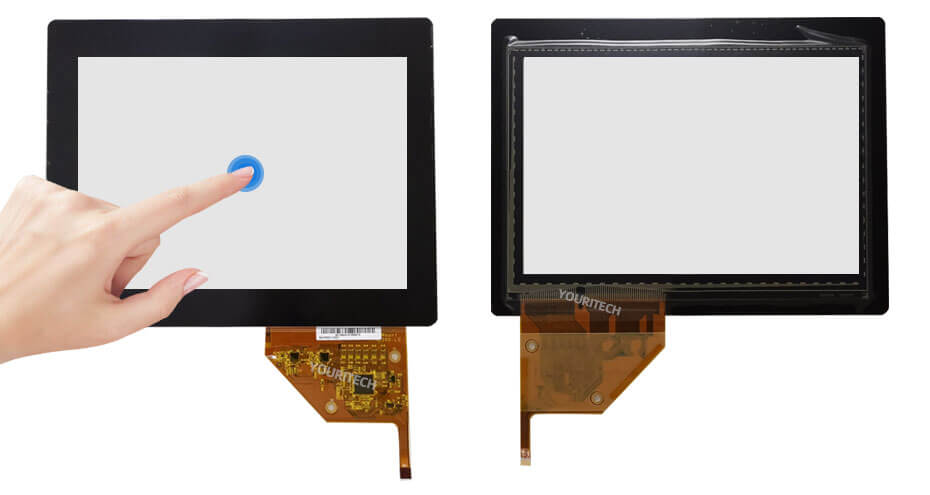

10.1 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C,USB,UART
Display Area: 217.56x136.20 mm
Outline Dim.: 249.96x176.6 mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -40 ~ 80°C

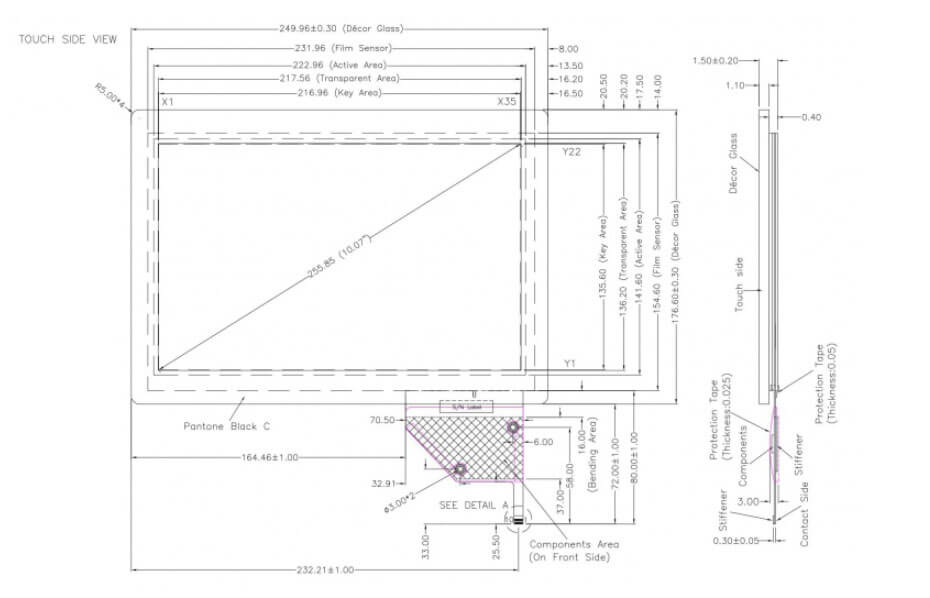

10.1 Inch Capacitive Touch Screen Drawing





The touch screens can be matched and integrated by all kinds of display panels



SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
