6"-15.6" Touch Screen (11.6")

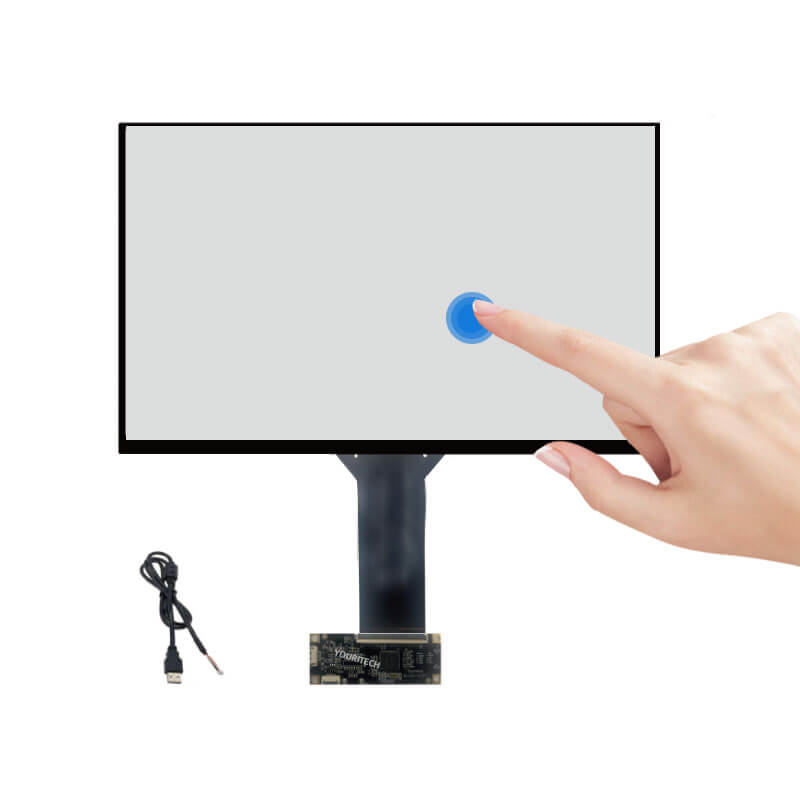

11.6 Inch Capacitive Touch Screen Narrow Side G+G Multi-touch USB Capacitive Touch Display

Part No.:ET116CTP02
Size:11.6″ inch
Resolution:Optional
Panel Interface:USB
Display mode:PCAP

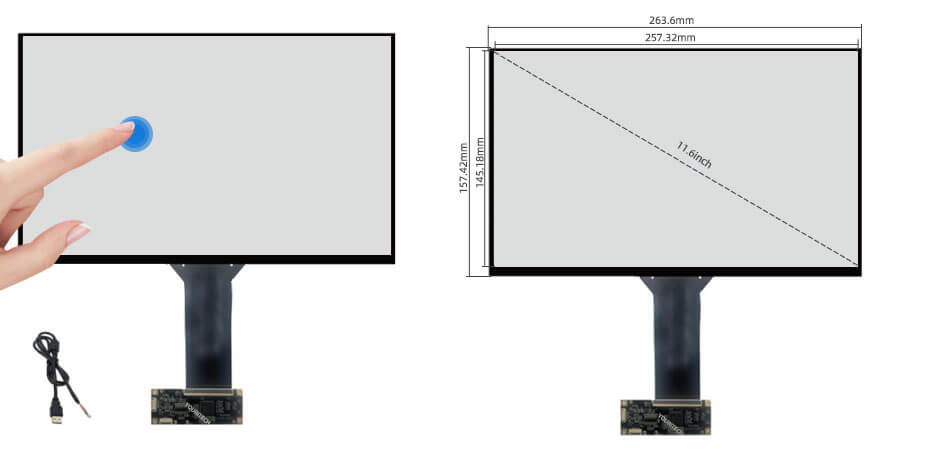

Outline Dimension:263.6x157.42mm
Active Area:257.32x145.18mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~75°C / -30~80°C
Touch:yes

11.6 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Appearance thickness: 1.6 mm
Touch Points: Multi-touch
Interface Type: USB
Display Area: 257.32x145.18 mm
Outline Dim.: 263.6x157.42 mm
Operation Temperature: -20 ~ 75°C
Storage Temperature: -30 ~ 80°C

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
