1.39 Inch AMOLED Display Overview

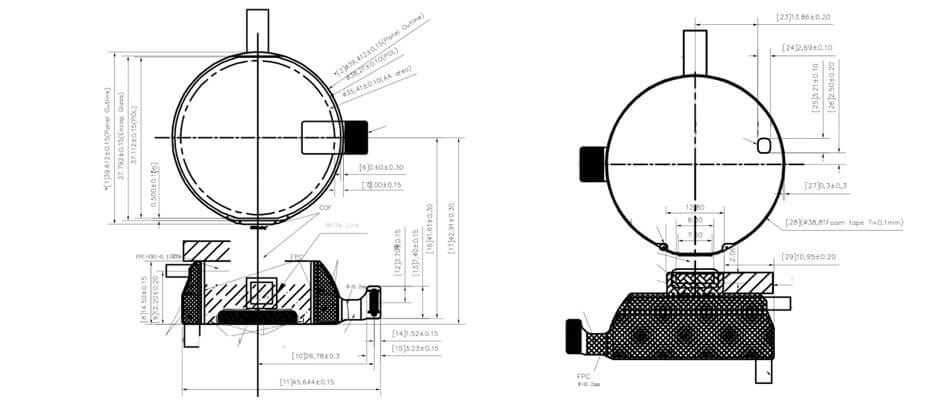

ET014WVC01-T is a 1.39 inch diagonal circular AMOLED display screen product, featuring self-emissive technology. ET014WVC01-T supports a resolution of 454×454 with a 1:1 aspect ratio (W:H) and offers viewing angles of 80/80/80/80 (L/R/U/D). It features an active area of 35.41(W) × 35.41(H) mm and an outline dimension of 39.41(W) × 39.61(H) mm, and supports MIPI, CPU, and SPI interfaces for signal transmission. The display provides a brightness of 450 nits and operates within a temperature range of -20°C to 70°C (storage: -20°C to 80°C). Designed without a touch function, ET014WVC01-T is suitable for compact, high-brightness, high-resolution circular display applications.
More 1.39 Inch AMOLED Displays For Reference

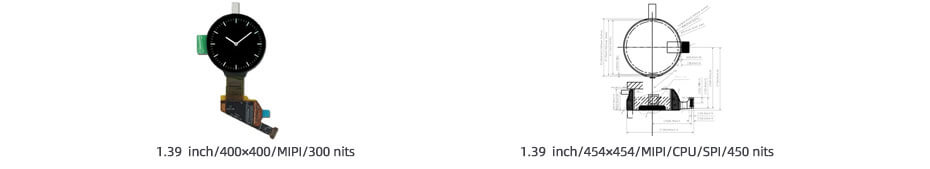

E1393AA61.C (400×400, MIPI, IPS, 300nits, -20~60°C, 38.6×40.5mm)
ET014WVC01-T (454×454, MIPI/CPU/SPI, IPS, 450nits, -20~70°C, 39.41×39.61mm)
AMOLED Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
