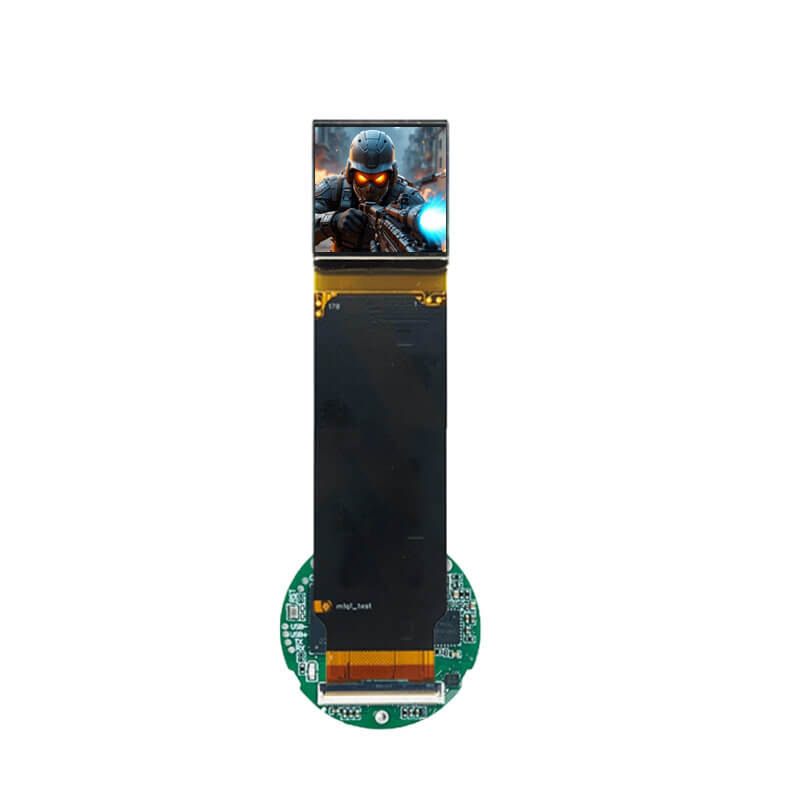

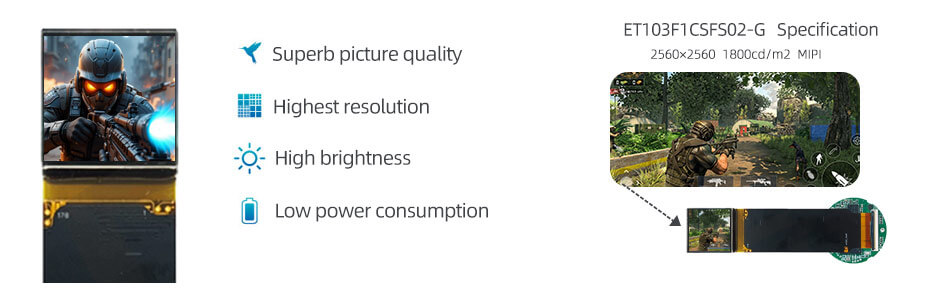

1.03 Inch Micro OLED Display 2560×2560 MIPI 1800nits High Brightness OLED Display With CVBS Driver Board For EVF AR Red Dot Sight Display Solutions Overview

ET103F1CSFS02-G is a 1.03-inch diagonal Si-OLED display featuring self-emissive technology. It supports a 2560 × 2560 resolution with a 1:1 aspect ratio (W:H) and utilizes a MIPI interface for high-speed signal transmission. The display features an active area of 18.43(W) × 18.43(H) mm, delivering ultra-high-definition image quality with excellent detail and clarity. ET103F1CSFS02-G provides a typical display brightness of 1800 cd/m², making it suitable for use in demanding lighting environments. It operates reliably within a temperature range of -20°C to 70°C and can be stored in environments from -40°C to 80°C. With no integrated touch function, it is an ideal micro OLED display solution for electronic viewfinders (EVF), augmented reality (AR) devices, red dot sights, near-eye display systems, and other compact optical applications.

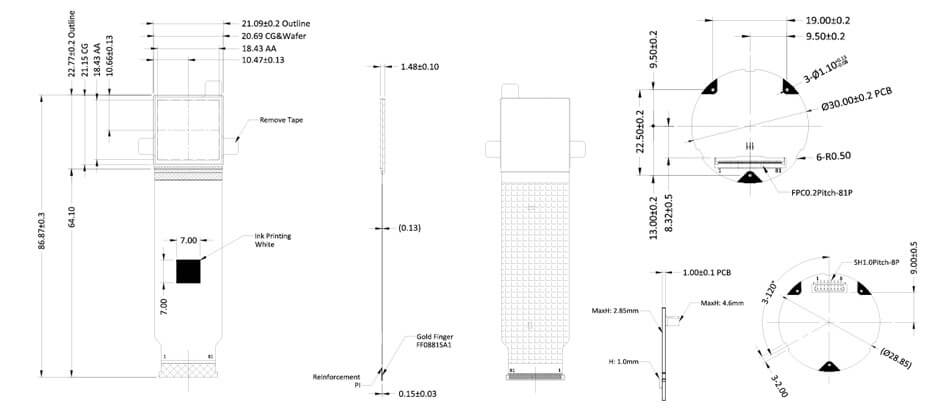

1.03 Inch Micro OLED Display 2560×2560 MIPI 1800nits High Brightness OLED Display With CVBS Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

1.03 Inch Micro OLED Display Solution For Reference
ET103F1CSFS02-G
5B0103R01-1

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
