SY083WAM01 0.83 Inch Micro OLED Display 2560×1440 MIPI 1800nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

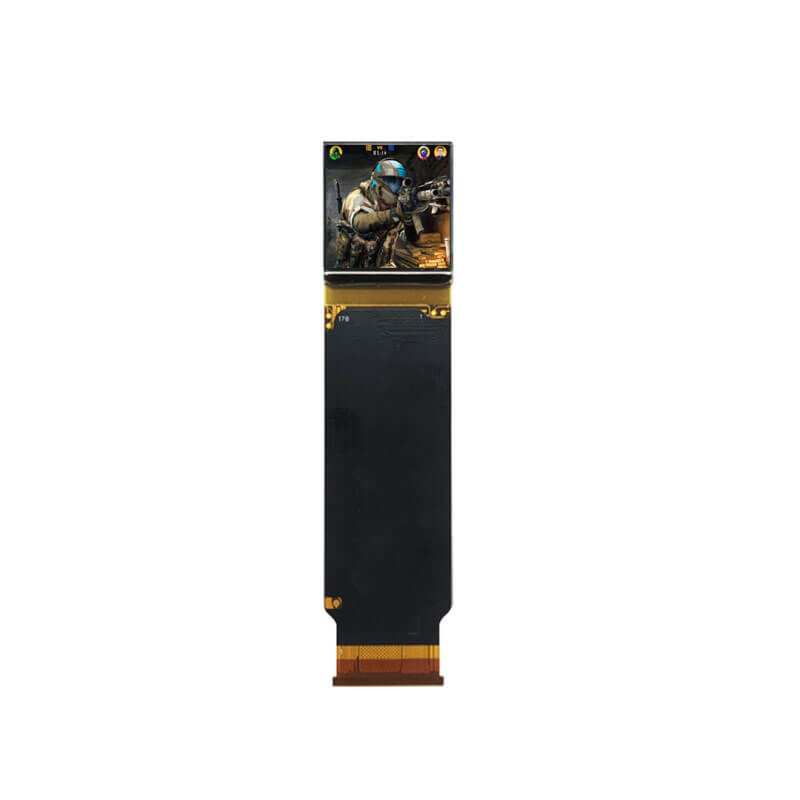

SY083WAM01 is a 0.83 inch diagonal Si-OLED display screen product, it self emiting. SY083WAM01 supports display 2560(RGB)×1440 (Quad-HD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB π typeit's pixel density is 3527 PPI. As for mechanical detail, it features active area of 18.432(W)×10.368(H) mm, outline size of 21.09(W)×22.77(H)×1.58(D) mm. SY083WAM01 can provides 1800 cd/m² display brightness 500000:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 1 (Max.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 85% (DCI-P3). This product emiting itself . SY083WAM01 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 81 pins FPC. It's typical vertical frame rate (Fv) is 90Hz.

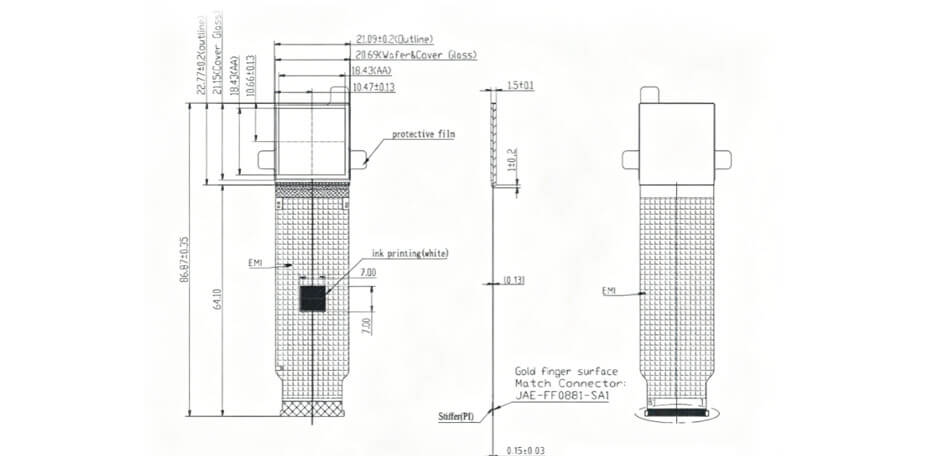

SY083WAM01 0.83 Inch Micro OLED Display 2560×1440 MIPI 1800nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

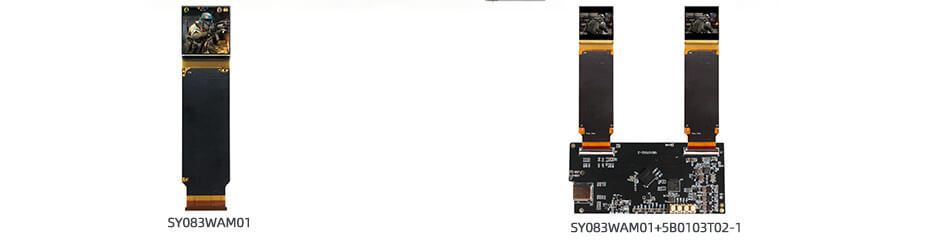

SY083WAM01 0.83 Inch Micro OLED Display Solution For Reference
SY083WAM01
SY083WAM01+5B0103T02-1

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
