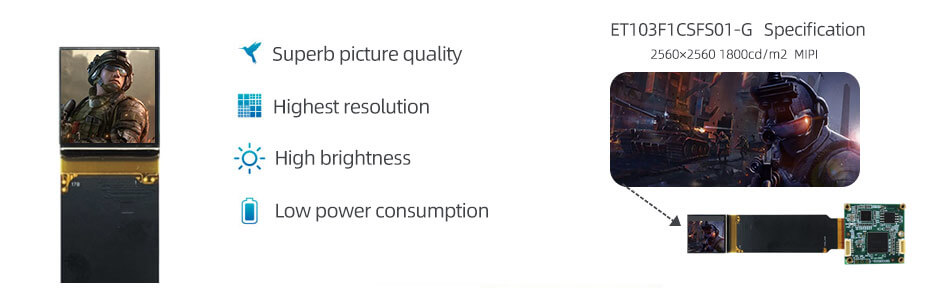

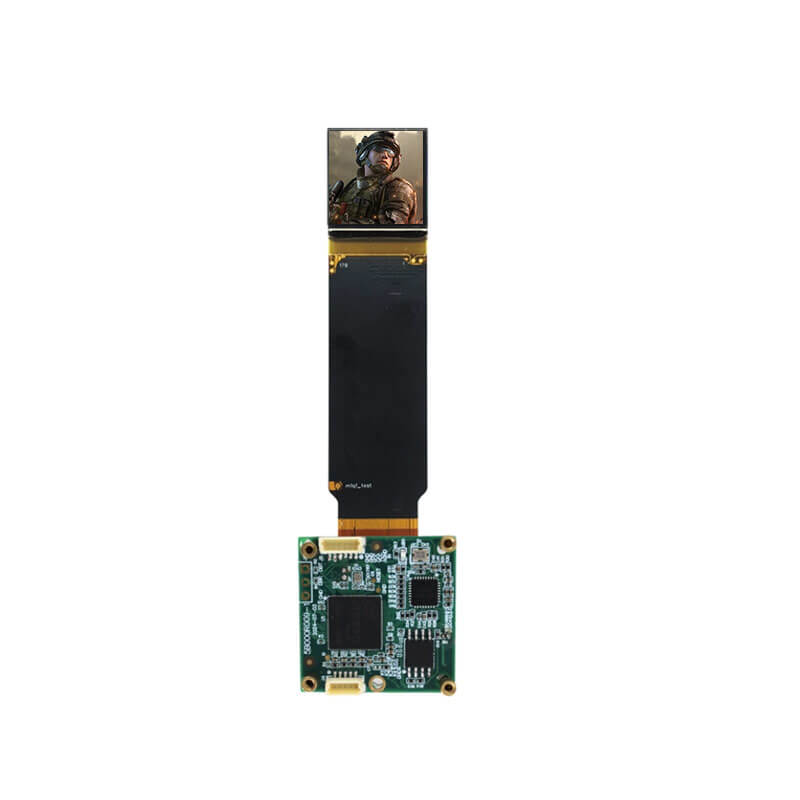

1.03 Inch Micro OLED Display 2560×2560 MIPI 1800nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

ET103F1CSFS01-G is a 1.03 inch diagonal Si-OLED display screen product, it is self-emitting. ET103F1CSFS01-G supports a 2560 × 2560 resolution with an aspect ratio of 1:1 (W:H). It features an active area of 18.43(W) × 18.43(H) mm and adopts a MIPI interface for high-speed signal transmission. ET103F1CSFS01-G can provide 1800 cd/m² display brightness, delivering outstanding image clarity and excellent visibility in bright ambient environments. It operates within a temperature range of -20°C to 70°C and can be stored at temperatures from -40°C to 80°C. With no touch function, ET103F1CSFS01-G is an ideal display solution for electronic viewfinders (EVF), augmented reality (AR) devices, red dot sights, near-eye display systems, and other compact optical applications.

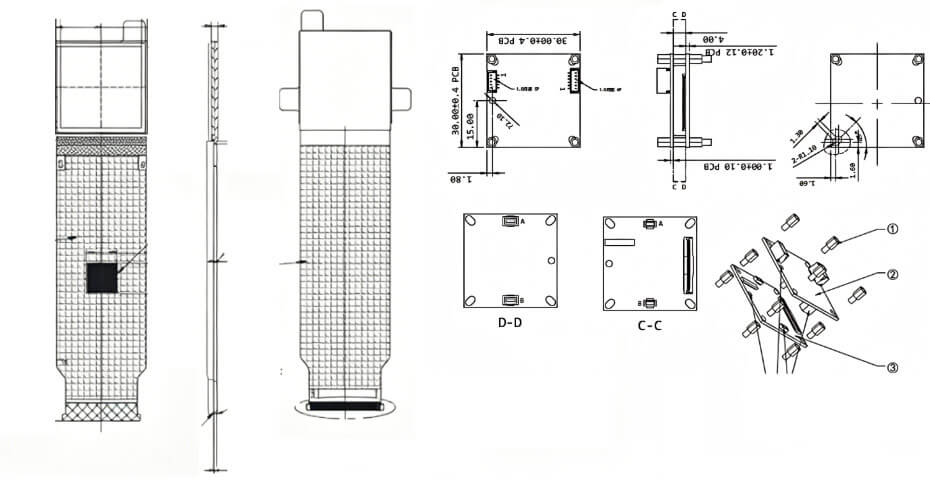

1.03 Inch Micro OLED Display 2560×2560 MIPI 1800nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
