0.91 Inch Wide Temperature PMOLED Display Overview

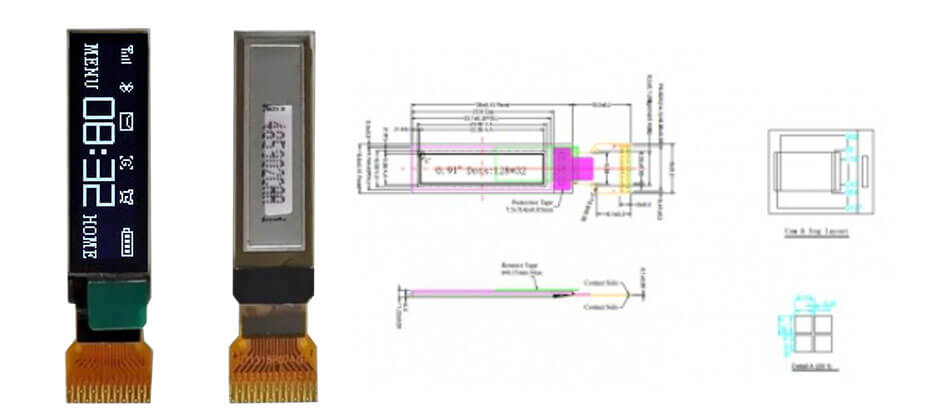

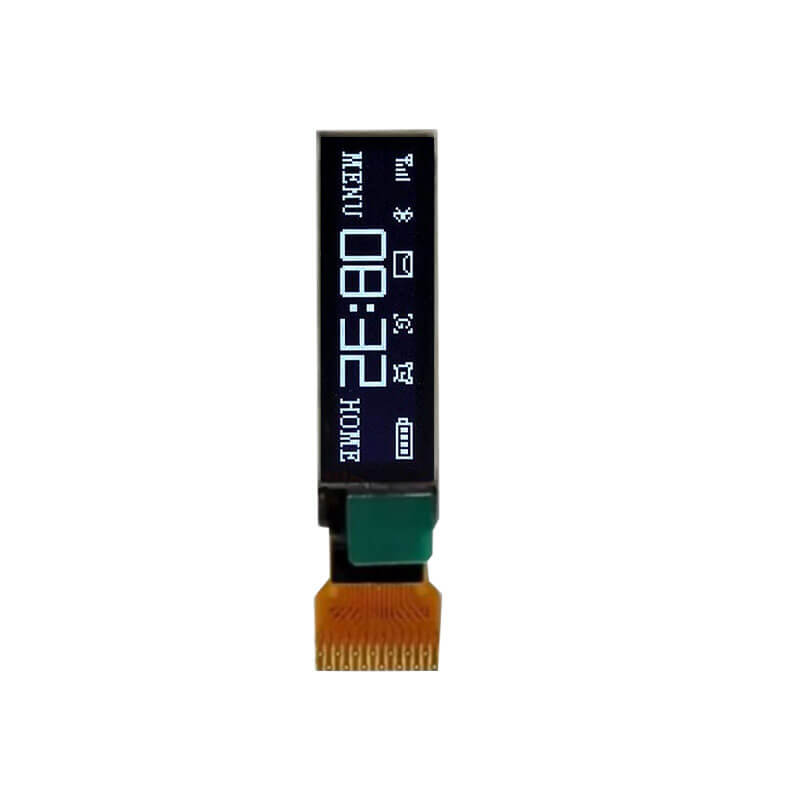

ET091WT01-T is a 0.91 inch diagonal PM-OLED display screen product, self-emitting. ET091WT01-T supports a display resolution of 128×32 with a typical wide aspect ratio, whose pixels are arranged in a passive matrix structure. It features an active area of 22.38(W) × 5.58(H) mm and an outline dimension of 29(W) × 8.8(H) mm. This display utilizes an I2C interface for communication and provides a typical brightness of 160 cd/m². ET091WT01-T offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from multiple directions. Designed for reliable performance in harsh environments, it supports an operating temperature range of -40°C to 70°C and a storage temperature range of -40°C to 85°C. This module does not include a touch panel.
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
