1.45 Inch Wide Temperature OLED Display 160×128 CPU RGB SPI -40°C to 70°C PMOLED Display

1.45 Inch Wide Temperature PMOLED Display Overview

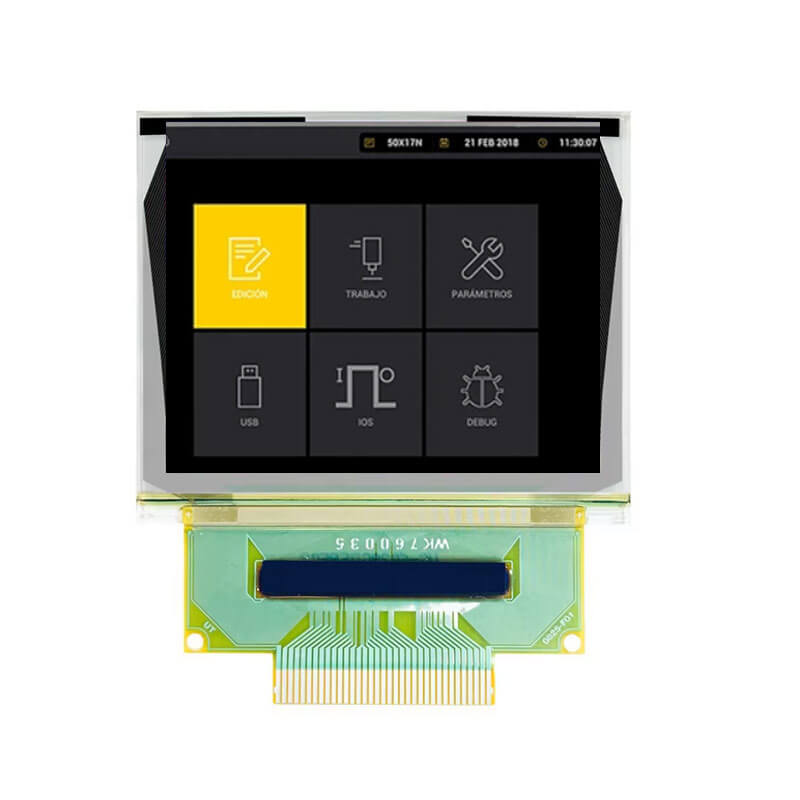

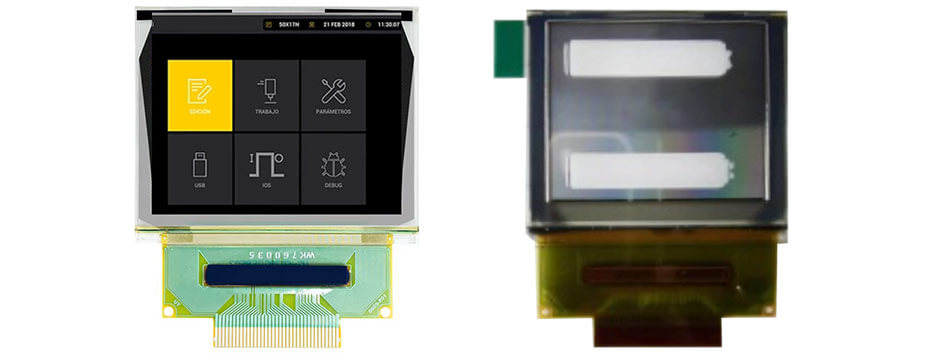

ET015WT01-UG is a 1.45 inch diagonal PM-OLED display screen product, self-emitting. ET015WT01-UG supports a display resolution of 160×128, whose pixels are arranged in a passive matrix structure. It features an active area of 28.78(W) × 23.024(H) mm and an outline dimension of 35.8(W) × 30.8(H) mm. The module supports multiple interfaces including CPU, RGB, and SPI, providing flexible integration for various embedded systems. ET015WT01-UG provides a typical display brightness of 100 cd/m² and offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from different directions. Designed for wide temperature applications, it supports an operating temperature range of -40°C to 70°C and a storage temperature range of -40°C to 85°C. This display module does not include a touch panel.

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing
