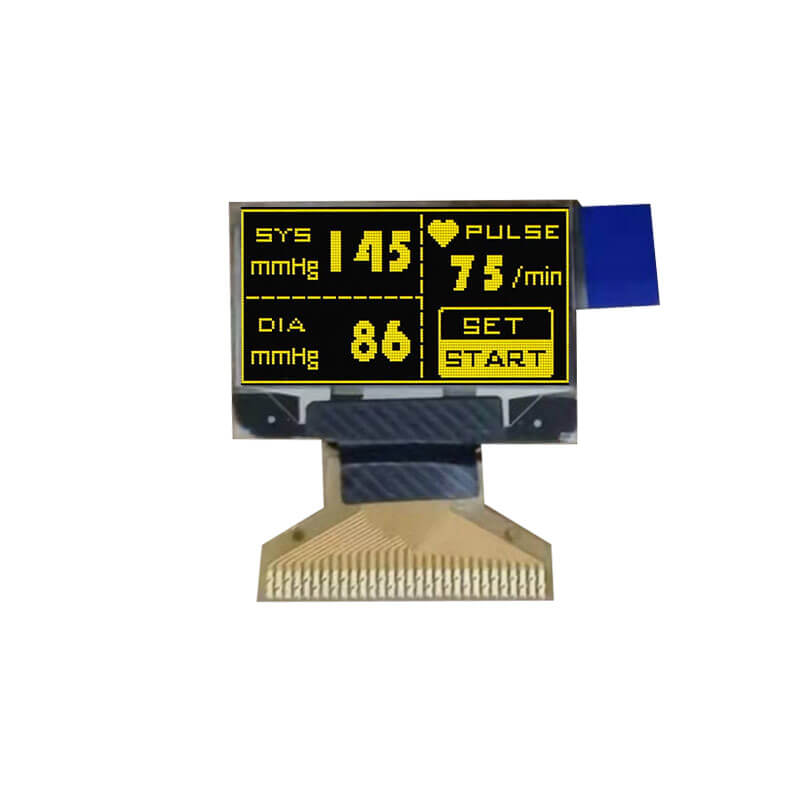

0.96 Inch Wide Temperature PMOLED Display Overview

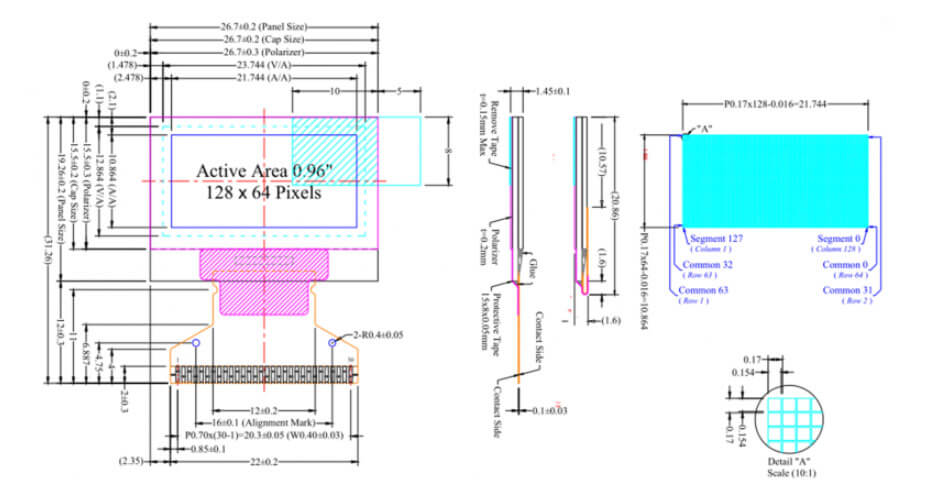

The ET096WT01-PV is a 0.96-inch PM-OLED display with a resolution of 128×64 and supports CPU, SPI, and I²C interfaces. It has an active area of 21.744×10.864 mm within an outline of 26.7×16.26 mm. The display offers 120 cd/m² brightness, 80° viewing angles in all directions, and operates between -30°C and 70°C, with storage from -40°C to 80°C. No touch functionality is included.

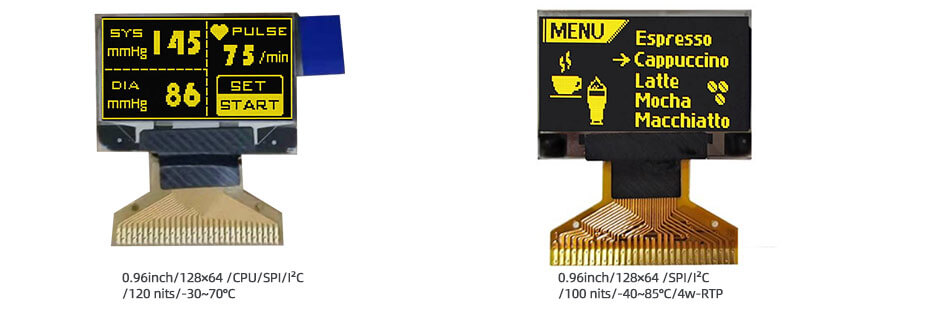

More 0.96 Inch Wide Temperature Displays For Reference
ET096WT01-PV (PMOLED, 128×64, CPU/SPI/I²C, IPS, 120nits, -30~70°C, 26.7×16.26mm)
ET096WT01-JRT (OLED, 128×64, SPI/I²C, IPS, 100nits, -40~85°C, 24.74×16.9mm, 4w-RTP)
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
