0.96 Inch Wide Temperature PMOLED Display Overview

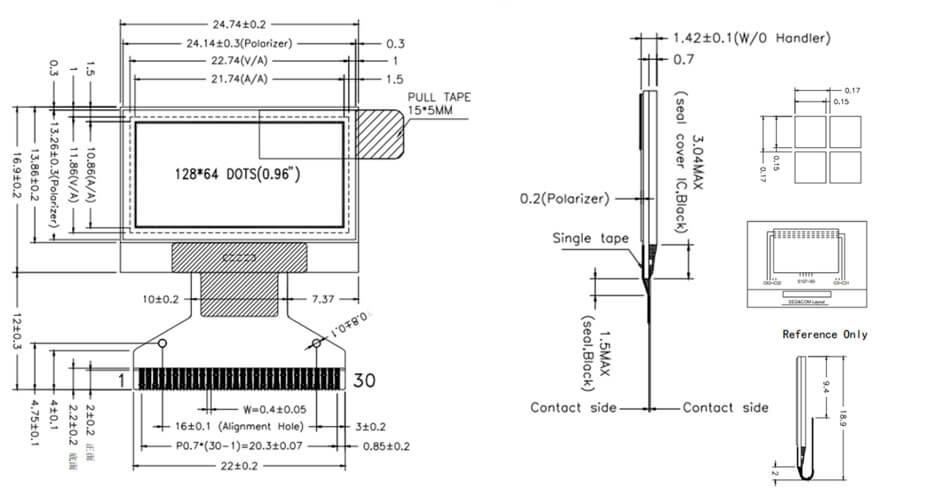

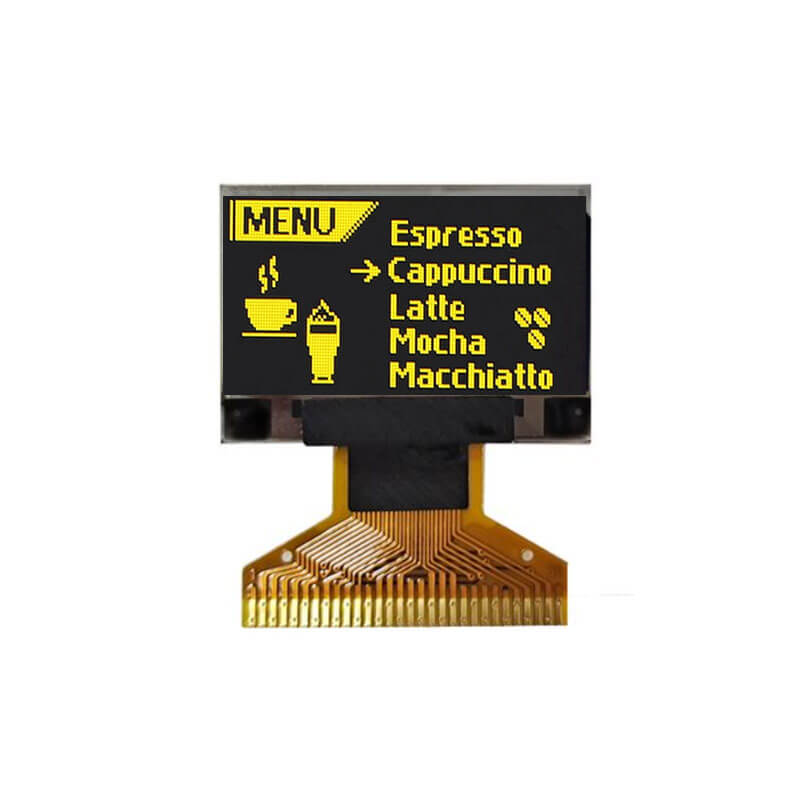

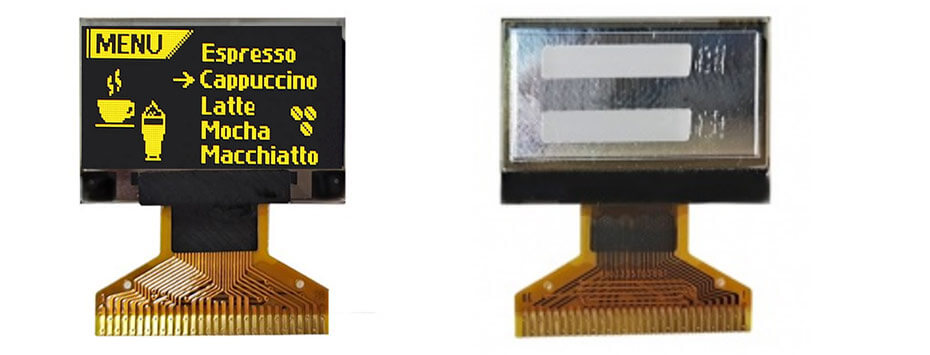

ET096WT01-JRT is a 0.96 inch diagonal PM-OLED display screen product, self-emitting. ET096WT01-JRT supports a display resolution of 128×64, whose pixels are arranged in a passive matrix structure. It features an active area of 21.74(W) × 10.86(H) mm and an outline dimension of 24.74(W) × 16.9(H) mm. The module supports both SPI and I2C interfaces for flexible system integration. It provides a typical brightness of 100 cd/m² and offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from multiple directions. Designed for wide temperature applications, ET096WT01-JRT supports an operating temperature range of -40°C to 85°C and a storage temperature range of -40°C to 85°C. In addition, this display module integrates a 4-wire resistive touch panel, enabling simple and reliable touch input for embedded and industrial applications.
More 0.96 Inch Wide Temperature Displays For Reference
ET096WT01-PV (PMOLED, 128×64, CPU/SPI/I²C, IPS, 120nits, -30~70°C, 26.7×16.26mm)
ET096WT01-JRT (OLED, 128×64, SPI/I²C, IPS, 100nits, -40~85°C, 24.74×16.9mm, 4w-RTP)
