2.1 Inch Wide Temperature PMOLED Display Overview

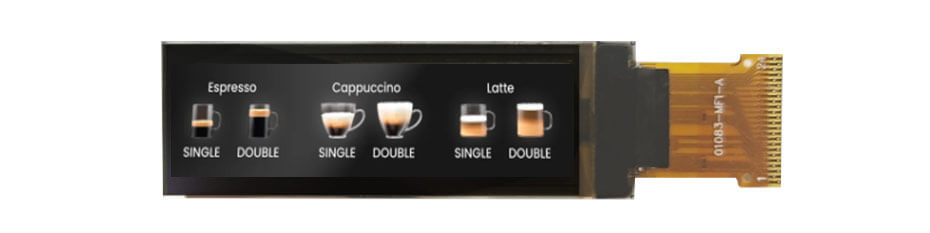

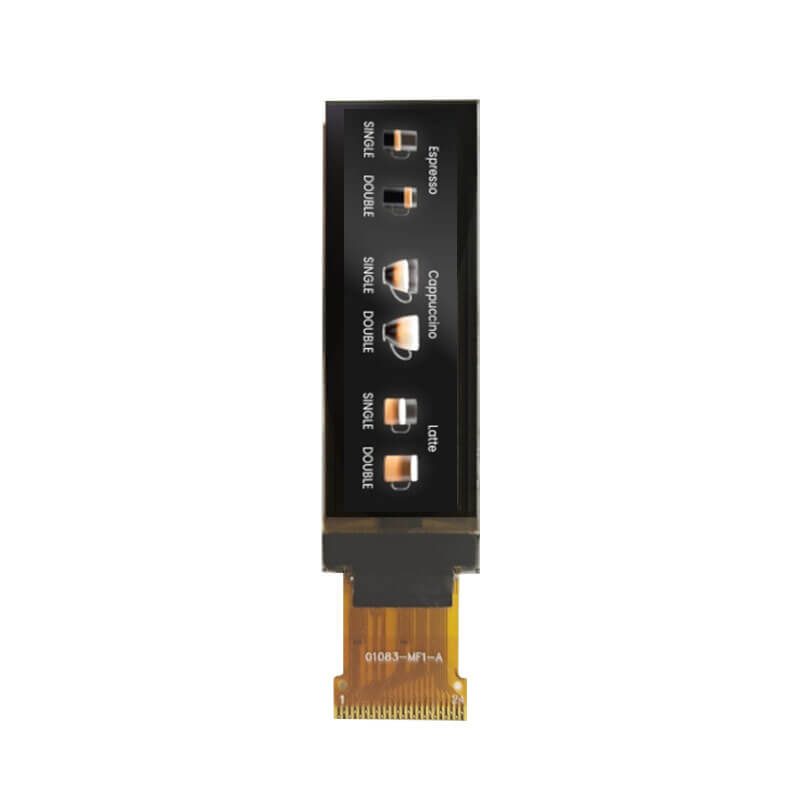

ET021WT01-J is a 2.1 inch diagonal PM-OLED display screen product, self-emitting. ET021WT01-J supports a display resolution of 256×64 with a wide aspect ratio, whose pixels are arranged in a passive matrix structure. It features an active area of 51.18(W) × 12.78(H) mm and an outline dimension of 82.5(W) × 20.6(H) mm. The module supports multiple interfaces including CPU, SPI, and I2C, providing flexible integration for various embedded systems. ET021WT01-J provides a typical display brightness of 100 cd/m² and offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from multiple directions. Designed for wide temperature applications, it supports an operating temperature range of -40°C to 70°C and a storage temperature range of -40°C to 85°C. This display module does not include a touch panel.
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
