1.8 Inch Wide Temperature PMOLED Display Overview

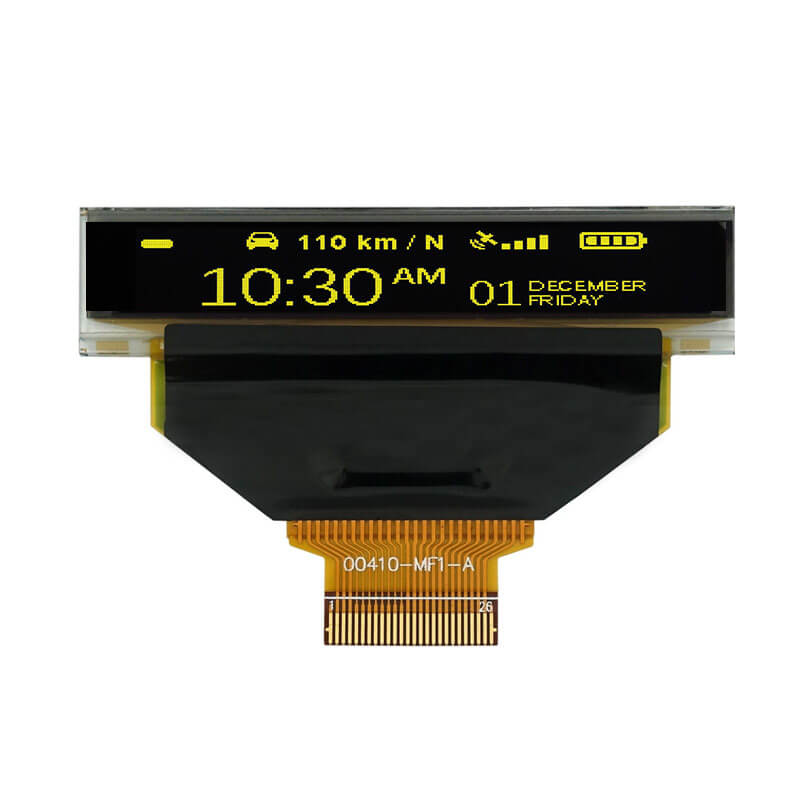

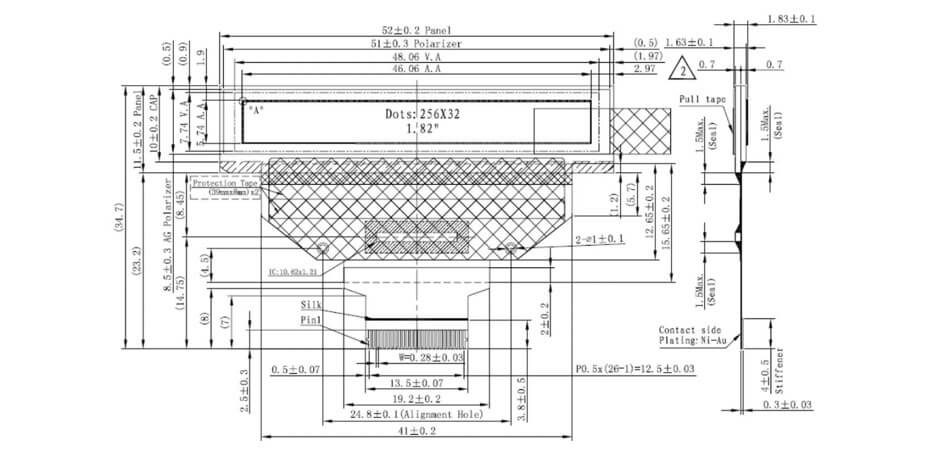

ET018WT01-J is a 1.8 inch diagonal PM-OLED display screen product, self-emitting. ET018WT01-J supports a display resolution of 256×32 with a wide aspect ratio, whose pixels are arranged in a passive matrix structure. It features an active area of 46.06(W) × 5.74(H) mm and an outline dimension of 52(W) × 34.7(H) mm. The module supports multiple interfaces including CPU, SPI, and I2C, providing flexible connectivity for various embedded systems. ET018WT01-J provides a typical display brightness of 100 cd/m² and offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from multiple directions. Designed for wide temperature applications, it supports an operating temperature range of -40°C to 85°C and a storage temperature range of -40°C to 85°C. This display module does not include a touch panel.
More 1.8 Inch Wide Temperature Displays For Reference

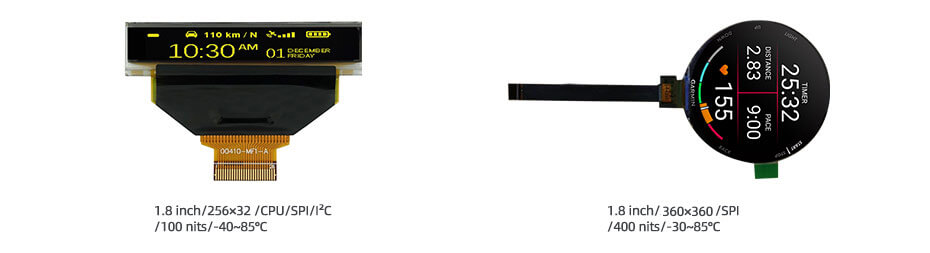

ET018WT01-J (PMOLED, 256×32, CPU/SPI/I²C, IPS, 100nits, -40~85°C, 52×34.7 mm)
ET018WT01-XH (LCD, 360×360, SPI, IPS, 400nits, -30~85°C, 47.99×49.86mm)
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
