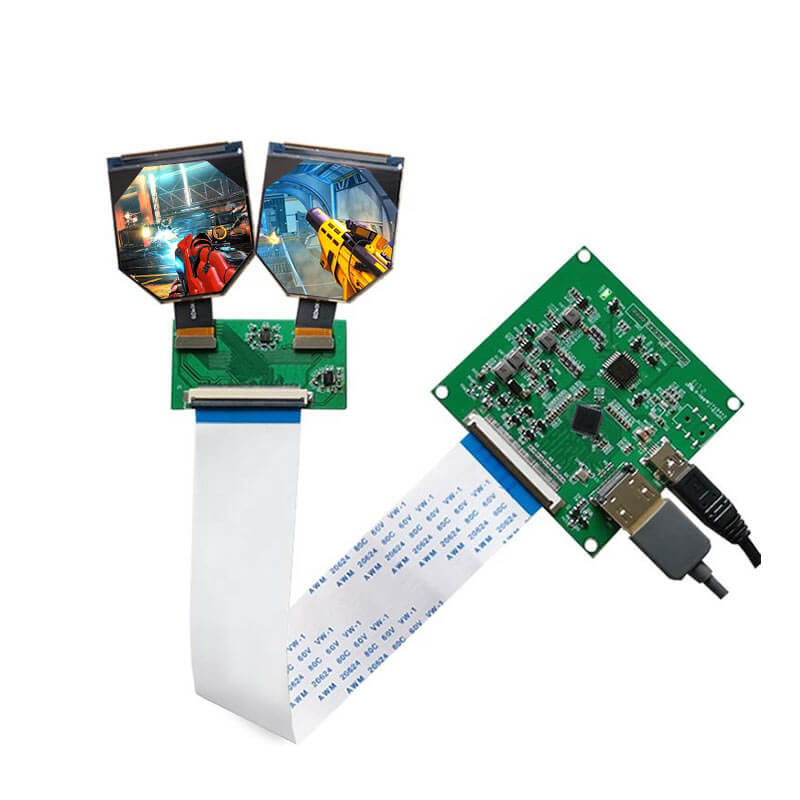

VS021XRM-NW0-6KP0 BOE 2.1 Inch TFT LCD Display 1600x1600 MIPI LCD Module With Driver Board

2.1 Inch LCD Display Overview

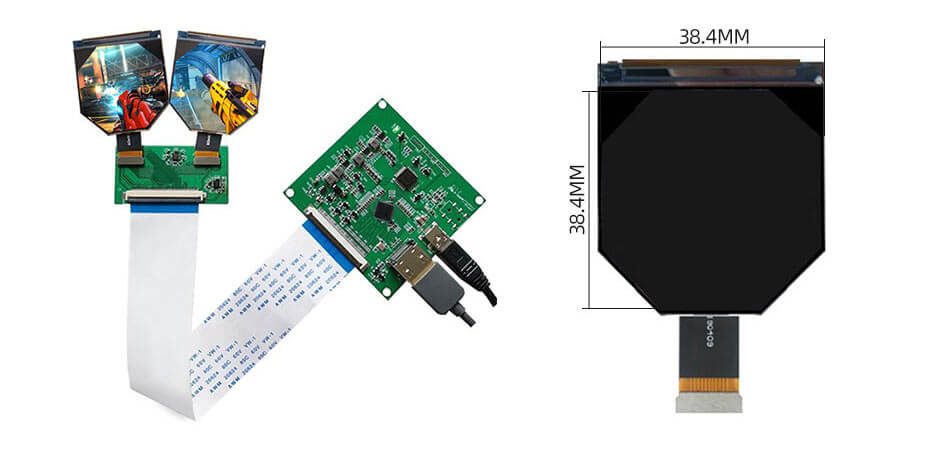

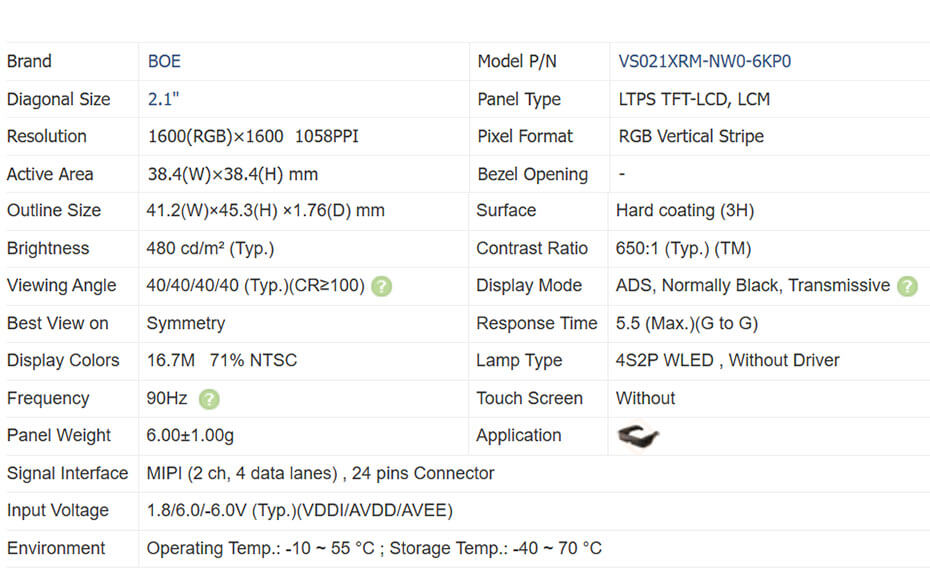

VS021XRM-NW0-6KP0 supports display 1600(RGB)×1600 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 1058 PPI. As for mechanical detail, it features active area of 38.4(W)×38.4(H) mm, outline size of 41.2(W)×45.3(H)×1.76(D) mm, with surface treament of Hard coating (3H), net weight of 6.00±1.00g. As a ADS, Normally Black, Transmissive LCM product, VS021XRM-NW0-6KP0 can provides 480 cd/m² display brightness 650:1 transimissive contrast ratio, 40/40/40/40 (Typ.)(CR≥100) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5.5 (Max.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 71% (NTSC). This product adopted 4S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. VS021XRM-NW0-6KP0 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 24 pins Connector with power supply voltage of 1.8/6.0/-6.0V (Typ.)(VDDI/AVDD/AVEE). It's typical vertical frame rate (Fv) is 90Hz.

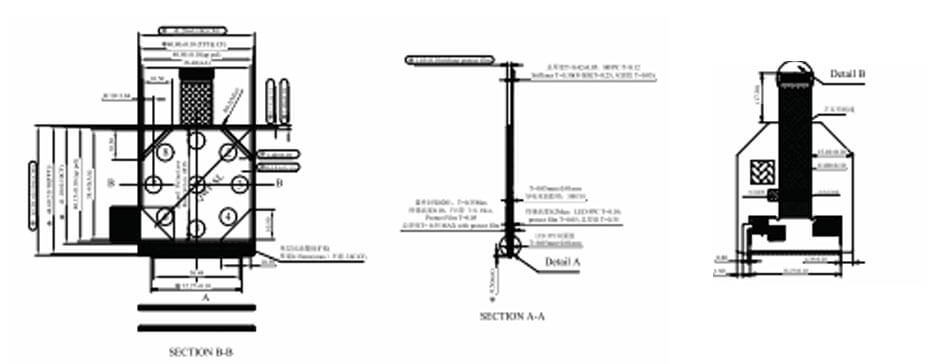

2.1 Inch LCD Display Drawing
