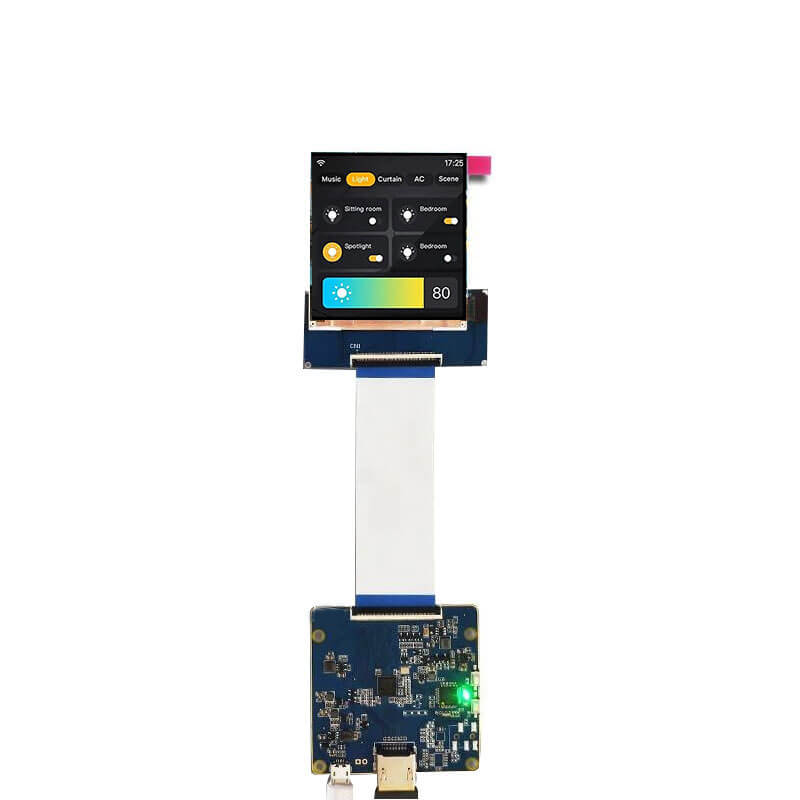

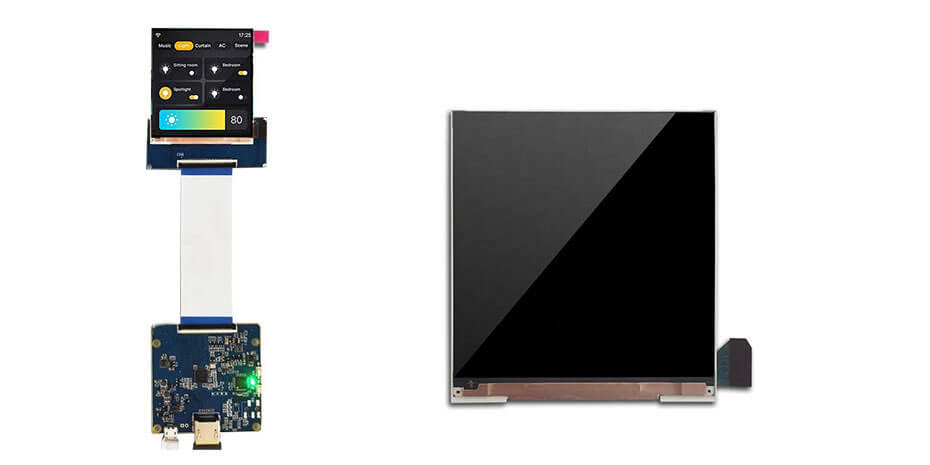

LT031MDZ4000 JDI 3.1 Inch TFT LCD Display 720x720 MIPI LCD Module With Driver Board

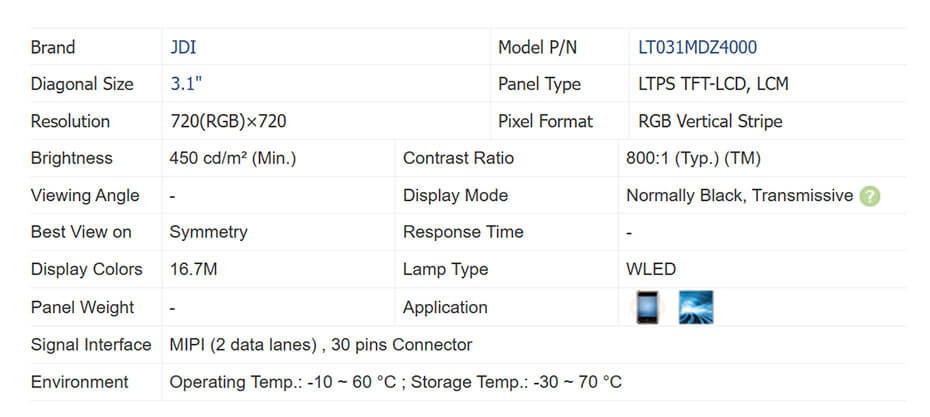

Part No.:LT031MDZ4000
Size:3.1″ inch
Resolution:720x720
Panel Interface:MIPI (2 data lanes)
Display mode:Transmissive
Outline Dimension:/
Active Area:/
Viewing Angle L/R/U/D:/
Brightness（cd/m2）:450cd/m²
Operation / Storage Temp:-10~60°C / -30~70°C
Touch:no

3.1 Inch LCD Display Overview
LT031MDZ4000 is a 3.1 inch diagonal LTPS TFT-LCD display screen product, with an incorporated WLED lighting system. LT031MDZ4000 supports display 720(RGB)×720 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe.. As a Normally Black, Transmissive LCM product, LT031MDZ4000 can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type. LT031MDZ4000 utilizes MIPI (2 data lanes) as it's signal inputting systerm, which connected by 30 pins Connector.
