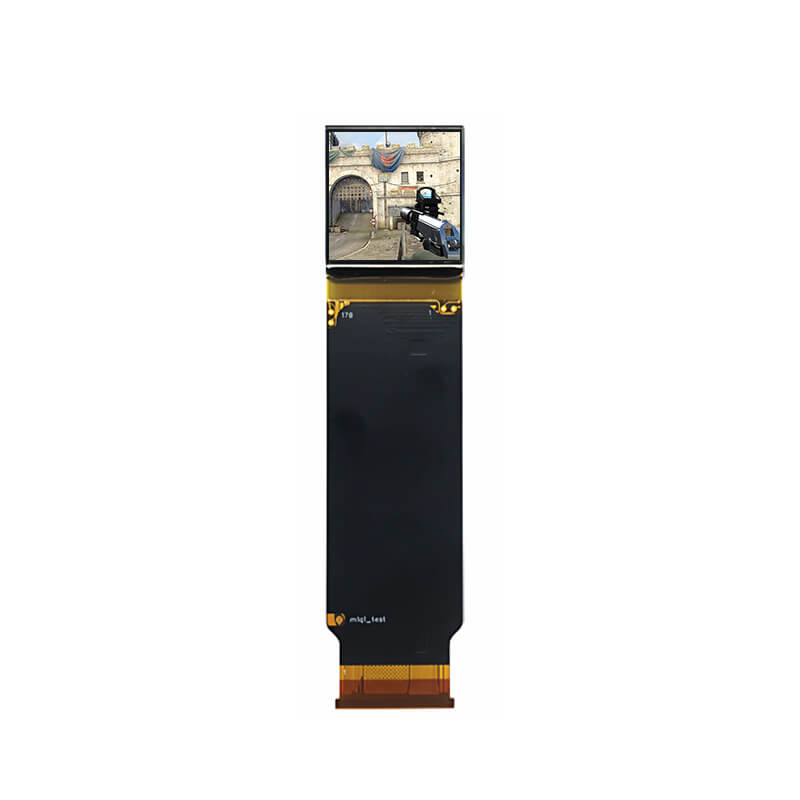

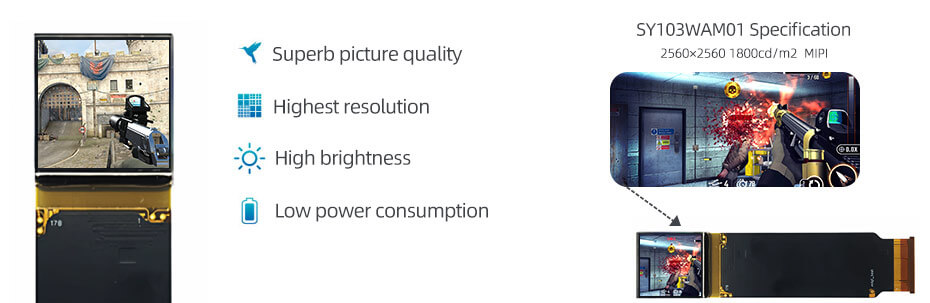

SY103WAM01 1 Inch Micro OLED Display 2560×2560 MIPI 1800nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

SY103WAM01 is a 1.0 inch diagonal Si-OLED display screen product, it self emiting, without touch screen.SY103WAM01 supports display 2560(RGB)×2560 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB π type, according to calculation of Panelook it's pixel density is 3527 PPI. As for mechanical detail, it features active area of 18.432(W)×18.432(H) mm, outline size of 21.09(W)×22.77(H)×1.58(D) mm, net weight of 2.00g (Typ.). SY103WAM01 can provides 1800 cd/m² display brightness 500000:1 transimissive contrast ratio, 30/30/30/30 (L/R/U/D) viewing angle . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 90% (DCI-P3). This product emiting itself . SY103WAM01 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 81 pins FPC with power supply voltage of 1.8/5.8_6.0/-4.0_-5.5V (Typ.)(VDDI/AVDD/AVEE). It's typical vertical frame rate (Fv) is 90Hz.

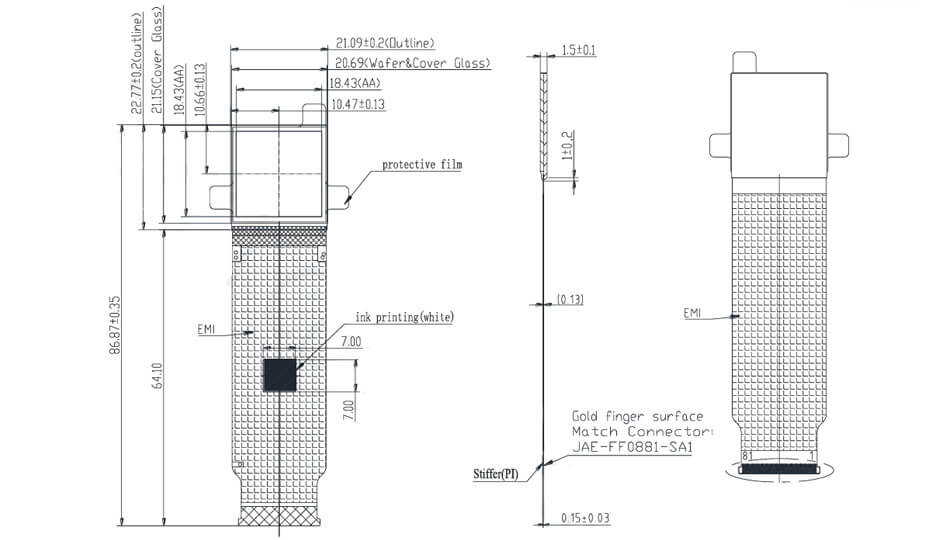

SY103WAM01 1 Inch Micro OLED Display 2560×2560 MIPI 1800nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

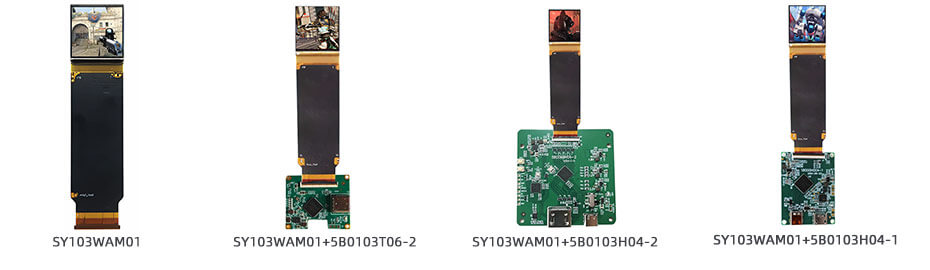

SY103WAM01 1 Inch Micro OLED Display Solution For Reference
SY103WAM01
SY103WAM01+5B0103T06-2
SY103WAM01+5B0103H04-2
SY103WAM01+5B0103H04-1

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
