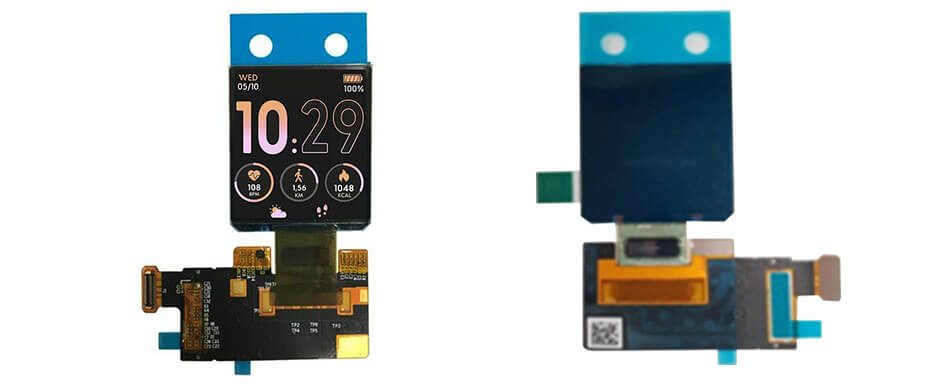

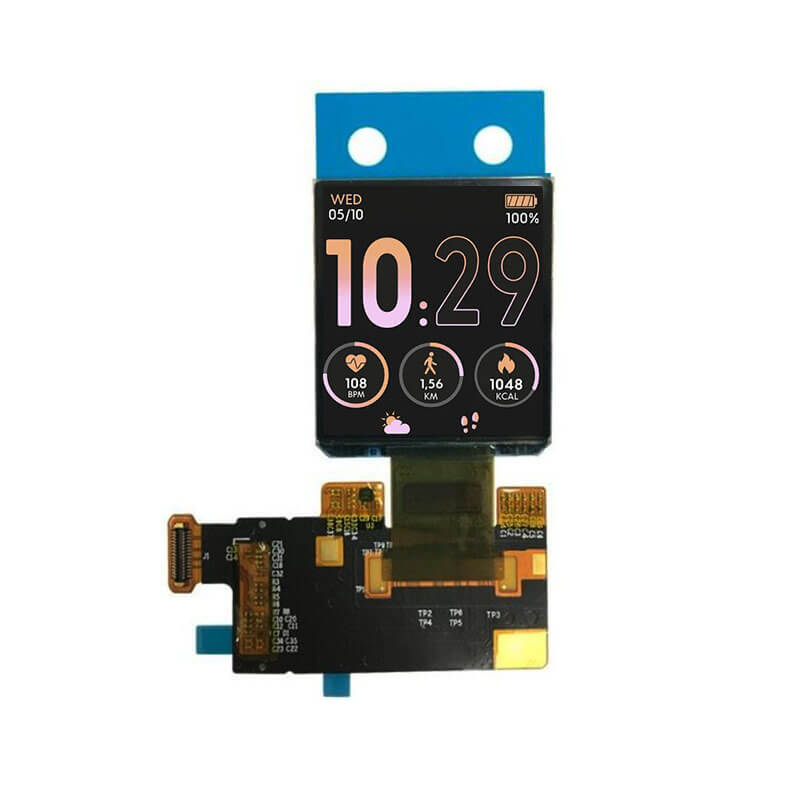

U128BLA03.0 1.28 Inch AMOLED Display 416×416 MIPI OLED Display With In-Cell Touch

U128BLA03.0 1.28 Inch AMOLED Display 416×416 MIPI LCD Display With In-Cell Touch Overview

U128BLA03.0 is a 1.28 inch diagonal AM-OLED display screen product from AUO, it self emiting, touchscreen In-Cell Touch. U128BLA03.0 supports display 416(RGB)×416 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 325 PPI. As for mechanical detail, it features active area of 32.45(W)×32.45(H) mm, outline size of 38.2(W)×79.4(H)×2.1(D) mm. U128BLA03.0 can provides 350 cd/m² display brightness 10000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . U128BLA03.0 utilizes MIPI (2 data lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 1.8/3.3V (Typ.)(VDDIO/VCI). It's typical vertical frame rate (Fv) is 45Hz.

Applications For Youritech In-Cell Touch Display

Consumer Electronics
-Smartphones, tablets, and handheld devices.
Smart Home Devices
-Control panels, smart thermostats, and security systems.
Industrial Equipment
-HMI terminals, automation controls, and portable instruments.
Medical Devices
-Patient monitors, diagnostic equipment, and healthcare tablets.
Automotive Displays
-Infotainment systems, digital dashboards, and EV charging stations.
Retail & POS Systems
-Self-service kiosks, payment terminals, and interactive displays.
Smart Wearables
-Smartwatches, fitness trackers, and wearable electronics.

Youritech In-Cell Touch Display Customer Pain Points & Our Solutions

Many customers face challenges such as bulky display structures, poor outdoor visibility, touch response issues, complex integration processes, and limited customization options. In demanding applications, reliability, durability, and low power consumption are also key concerns.

Youritech's In-Cell Touch Display solutions address these challenges by integrating touch functionality directly into the display, creating thinner and lighter modules with enhanced optical clarity. We offer high-brightness displays, advanced touch performance, optical bonding, custom cover glass design, and controller board integration to improve user experience and simplify product development. With strong R&D, customization, and manufacturing capabilities, we help customers achieve higher reliability, faster time-to-market, and cost-effective production.

Youritech In-Cell Touch Display R&D & Manufacturing Capabilities

Youritech provides comprehensive In-Cell Touch Display development and manufacturing services, from concept design to mass production. Our capabilities include display module customization, touch integration, cover glass design, optical bonding, and embedded controller board development. We support a wide range of sizes, interfaces, brightness levels, and mechanical structures to meet specific application requirements.

With experienced engineering teams, advanced production facilities, and strict quality control systems, Youritech delivers high-performance, reliable display solutions for consumer electronics, industrial equipment, medical devices, automotive systems, smart home products, and other demanding applications. Our end-to-end manufacturing capabilities help customers accelerate product development, reduce integration complexity, and ensure consistent product quality.
