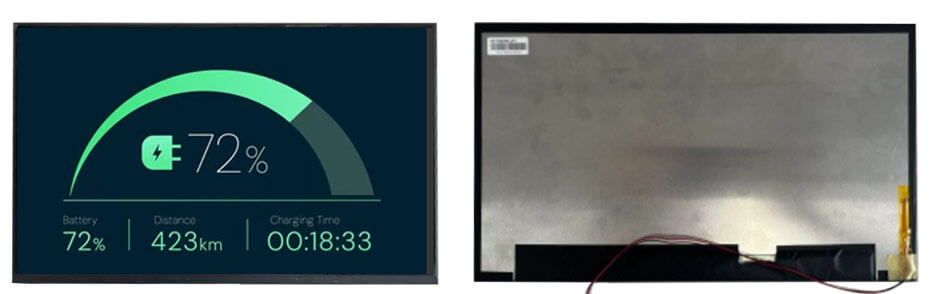

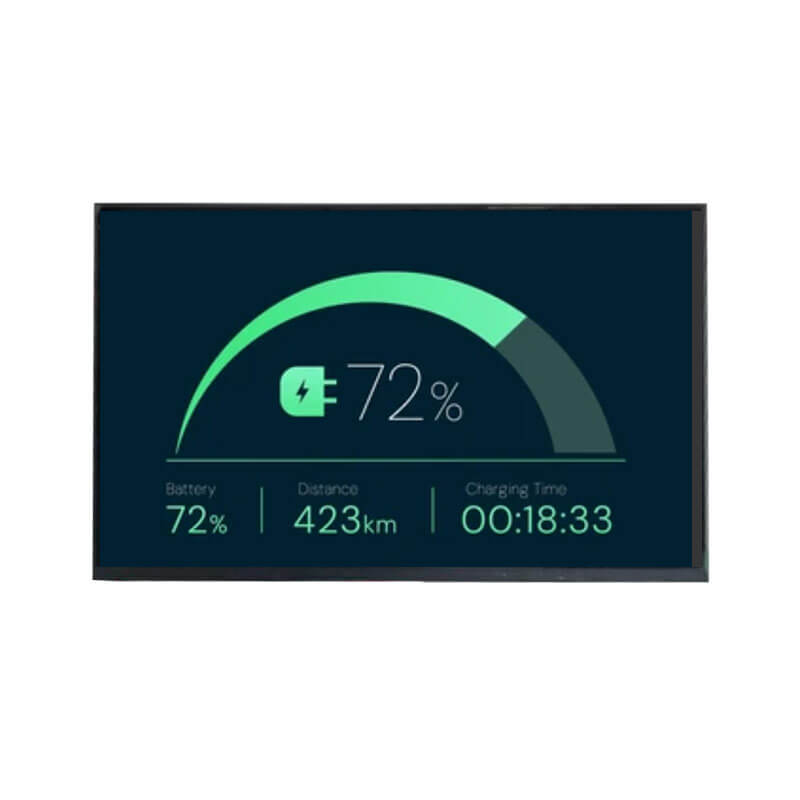

ET156FH01-RT is a 15.6-inch TFT LCD display module with integrated In-Cell touch technology, supporting 1920×1080 (FHD) resolution and an LVDS interface. Operating in Transmissive mode, it features an active area of 344.16(W) × 193.59(H) mm and an outline dimension of 353.36(W) × 208.09(H) mm. With a high brightness of 1500 cd/m² and an ultra-wide viewing angle of 89/89/89/89 (L/R/U/D), the display delivers excellent visibility and image quality even in bright outdoor environments. Designed for demanding applications, it supports an operating temperature range of -20°C to 80°C, making it an ideal display solution for EV charging stations, industrial equipment, and outdoor self-service terminals.
More 15.6 Inch EV Charger Display For Reference
NL13676BC25-07F (1366×768, LVDS, 1250nits, -30~80°C, 363.8×215.9mm)
G156HAN04.0 (1920×1080, LVDS, 1000nits, -30~85°C, 363.8×215.9mm)
G156HCE-LH1 (1920×1080, LVDS, 1200nits, -30~80°C, 363.8×215.9mm)
P1560FHF2MA00 (1920×1080, LVDS, 1000nits, -30~80°C, 363.8×215.9mm)
NL192108BC18-06F (1920×1080, eDP, 1500nits, -30~85°C, 363.8×215.9mm)
HSD156JUW2-A12 (1920×1080, LVDS, 850nits, -30~85°C, 363.7×215.7mm)
G156HAN04.1 (1920×1080, LVDS, 1500nits, -30~70°C, 363.8×215.9mm)
TX40D202VM0BAA (1920×1080, LVDS, 1500nits, -30~85°C, 367.86×219.51mm)
ET156FH06-T (1920×1080, LVDS, 1000nits, -20~70°C, 360×212.3mm)
ET156FH01-RT (1920×1080, LVDS, 1500nits, -20~80°C, 353.36×208.09mm, In-Cell Touch)
-Custom PCAP touch solutions (glove/wet touch, AG/AR/AF glass, optical bonding)
-Embedded mainboards (Android / Linux, ARM platforms, multi-interface support)
-Display + touch + board system integration
-Industrial design for EV chargers (IP65, wide temperature, high reliability)
-Communication & HMI support
High-Brightness LCD Displays
Sunlight-readable screens for outdoor charging stations.
PCAP Touchscreen Integration
Responsive multi-touch operation with glove and wet-touch support.
Rugged Cover Glass
Anti-glare, anti-scratch and impact-resistant protective glass.
Embedded Mainboards
Android, Linux and custom controller board solutions.
Industrial Connectivity
HDMI, USB, CAN Bus, RS232/RS485 and Ethernet interfaces.
Outdoor Protection
IP65 waterproof design, UV resistance and wide-temperature operation.
Optical Bonding Technology
Enhanced visibility, durability and reduced reflection.
Custom HMI Development
Complete display, touch and embedded system integration for EV chargers.
-AC Charging Stations
-DC Fast Charging Stations
-Ultra-Fast Charging Networks
-Smart Charging Kiosks
-Fleet Charging Infrastructure
-Renewable Energy Charging Systems
-Battery Swapping Stations
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
