LA084X02-SL01 8.4 Inch TFT LCD Display 1024x768 LVDS 1200nits Ultra High Brightness Wide Temperature LCD Display With Driver Board

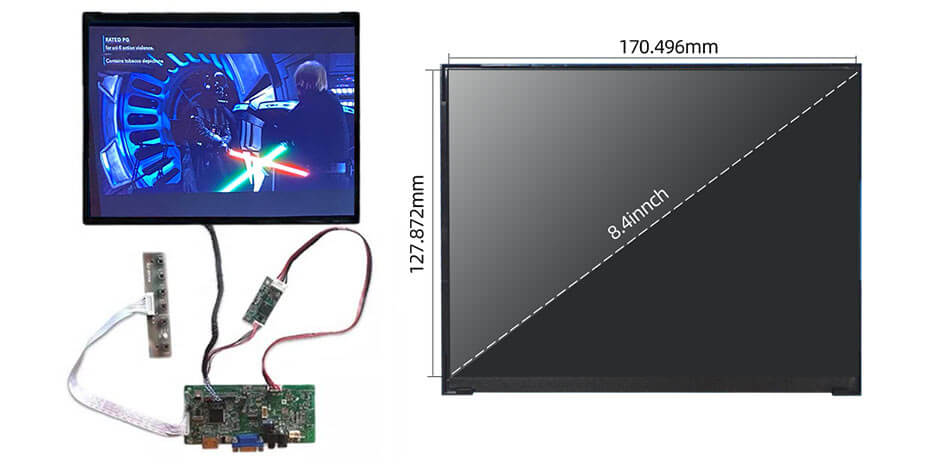

8.4 Inch LCD Display Overview

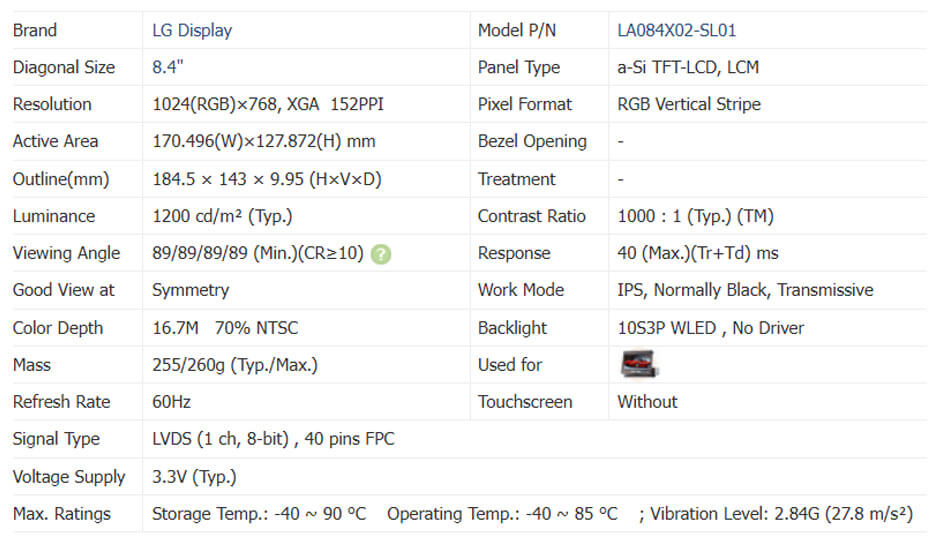

LA084X02-SL01 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 170.496(W)×127.872(H) mm, outline size of 184.5(W)×143(H)×9.95(D) mm, net weight of 255/260g (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LA084X02-SL01 can provides 1200 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 10S3P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LA084X02-SL01 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

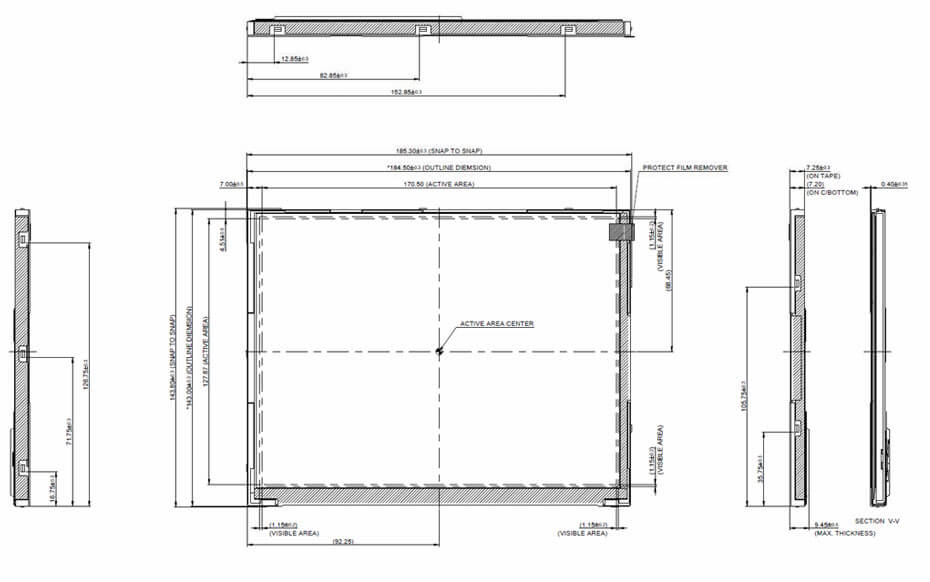

8.4 Inch LCD Display Drawing
