(3.2")

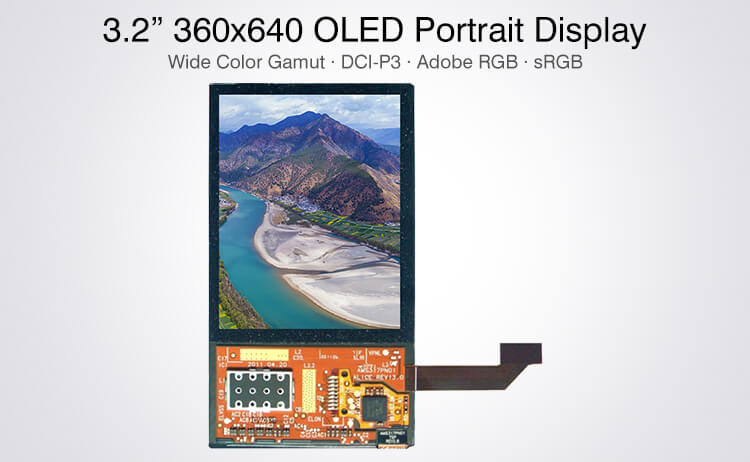

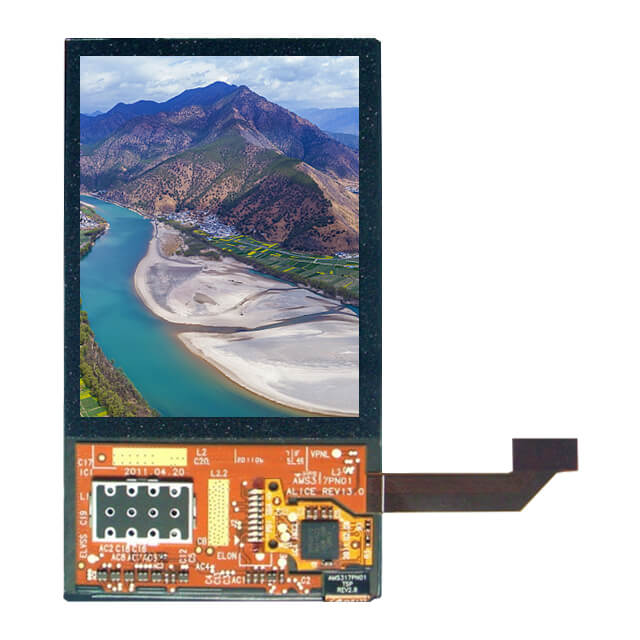

Shenzhen Factory Samsung 3.2 Inch OLED Amoled Screen Display 360x640 Mipi For Industrial

  • Part No.:AMS317PN01
  • Size:0″ inch
  • Resolution:360x640
  • Panel Interface:MIPI (1 data lane)
  • Display mode:/

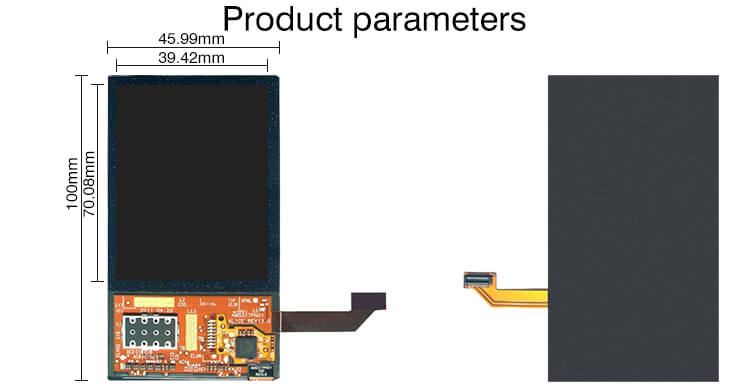

  • Outline Dimension:45.99x100mm(HxV)
  • Active Area:39.42x70.08mm(HxV)
  • Viewing Angle L/R/U/D:/
  • Brightness（cd/m2）:300cd/m²(Typ.)
  • Operation / Storage Temp:-15~70°C / -40~85°C
  • Touch:no
Get a quote

Samsung 3.2 Inch OLED

item
value
Type
COG
Display Size
3.2 inch
Supplier Type
OLED AM-OLED
Place of Origin
China
Brand Name
Sharp
Resolution
360(RGB)*640 (nHD) 231PPI
Size
3.2 Inch
Interface
4-wire SPI 10 pins FPC
Viewing Angle
85/85/85/85 (Typ.)(CR 10)
Contrast Ratio
1300 : 1 (Typ.) (TM)
Luminance
300 (Typ.)(cd/m²)
Active Area
39.42 * 70.08 (H*V)
Outline Dimension
45.99 * 100 (H*V*D)
