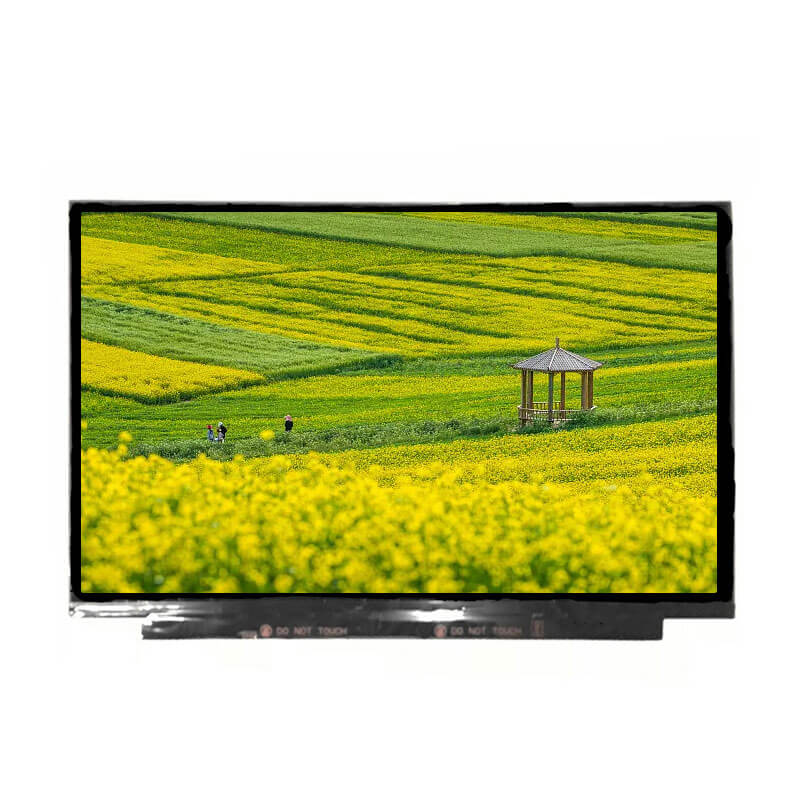

LCD SPECIFICATION
|
||||||
|
Panel Size
|
14.0"
|
Panel Type
|
LCM , Oxide TFT-LCD
|
|||
|
Pixel Number
|
1920(RGB)×1200 161PPI
|
Configuration
|
RGB Vertical Stripe
|
|||
|
Active Area(mm)
|
301.594(H)×188.496(V) mm
|
Outline(mm)
|
306.594 × 197.6 × 4.5 (H×V×D)
|
|||
|
Bezel Area(mm)
|
-
|
Treatment
|
Antiglare, Hard coating (3H)
|
|||
|
Luminance
|
400 cd/m² (Typ.)
|
Contrast Ratio
|
1500:1 (Typ.) (TM)
|
|||
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
Display Mode
|
HADS, Normally Black, Transmissive
|
|||
|
View Direction
|
Symmetry
|
Response Time
|
25 (Typ.)(Tr+Td)
|
|||
|
Support Color
|
16.7M 99% sRGB
|
Backlight
|
11S7P WLED , 15K hours , With LED Driver
|
|||
|
Form Style
|
Slim (PCBA Bent, T≤3.0mm)
|
Used for
|
Laptop
|
|||
|
Frame Rate
|
60Hz
|
Touchscreen
|
Without
|
|||
|
Signal Interface
|
eDP (2 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , 30 pins Connector
|
|||||
|
Input Voltage
|
3.3V (Typ.)
|
|||||
|
Environment
|
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
|
|||||
