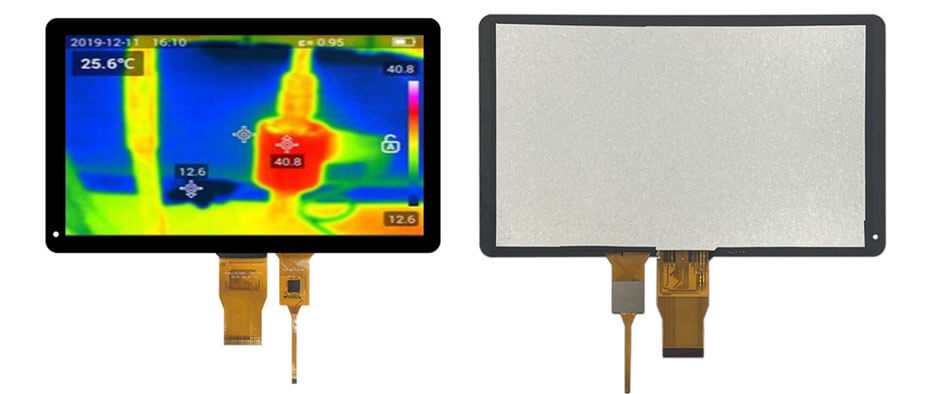

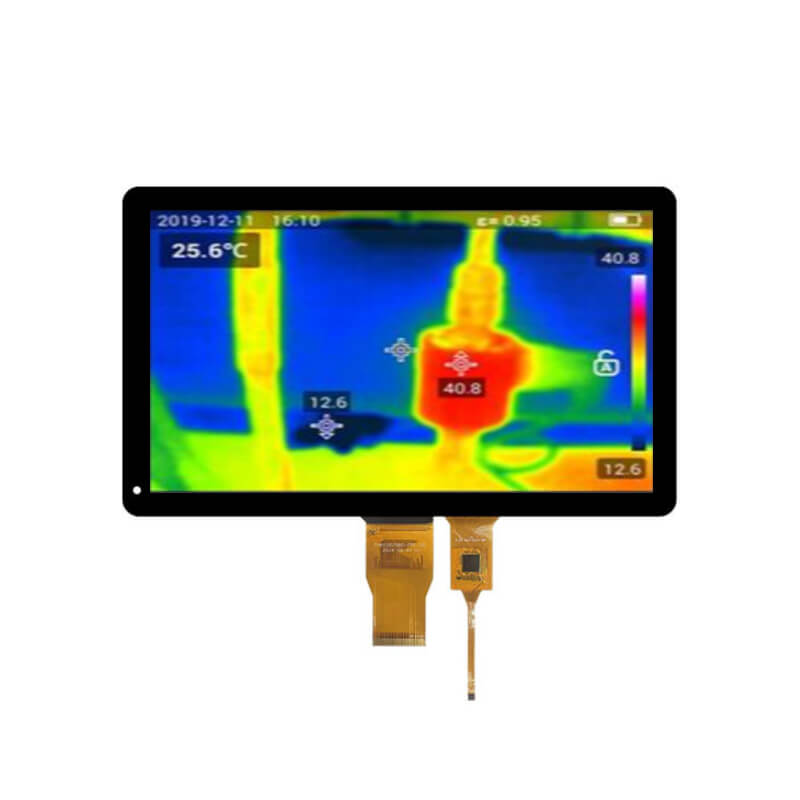

10.1 Inch TFT LCD Display 1024×600 TTL High Brightness LCD Display With Capacitive Touch for Measuring Rangefinder Display Solution OverviewET101WS15-TT is a 10.1-inch TFT LCD display featuring a 1024×600 resolution and a TTL interface, designed for automotive displays, healthcare equipment, industrial systems, and measuring rangefinders. With a typical brightness of 700 cd/m² and an 800:1 contrast ratio, it delivers clear images for applications requiring good screen visibility. The IPS panel supports 16.7 million colors and wide 85° viewing angles in all directions, providing consistent image quality across different viewing positions. Equipped with a PCAP capacitive touch panel, this LCD module enables responsive touch operation and intuitive user interaction. Its 16:9 aspect ratio, WLED backlight, and 50-pin TTL interface support integration into a variety of embedded display systems. With a 6 mm maximum depth and an operating temperature range of -20°C to 70°C, the ET101WS15-TT is a practical touch display solution for industrial instruments, automotive equipment, and portable measuring devices.

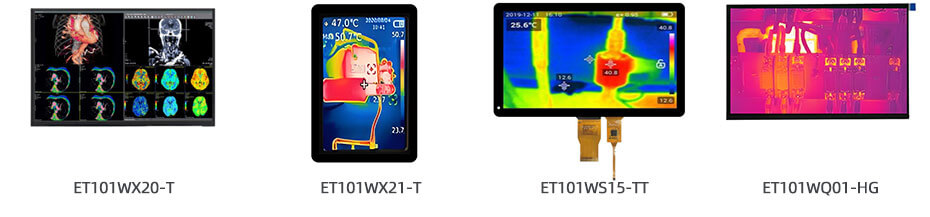

More 10.1 Inch Healthcare & Medical Display Solution For Reference
ET101WX20-T (LCM, 1280×800, LVDS, 900nits, 229.1×148.9mm, -30~80°C)
ET101WX21-T (LCM, 800×1280, MIPI, 750nits, 166.5×249.7mm, -20~70°C)
ET101WS15-TT (LCM, 1024×600, TTL, 700nits, 252×150mm, -20~70°C)
ET101WQ01-HG (LCM, 2560×1600, eDP, 400nits, 221.85×145.15mm, 0~50°C)
High Visibility
-High-contrast display technology ensures clear measurement data in both bright outdoor and low-light indoor conditions.
Low Power Consumption
-Energy-efficient display solutions help extend battery life for portable measuring devices.
Compact Design
-Slim and lightweight display modules enable easy integration into handheld rangefinders with limited installation space.
Multiple Display Technologies
-Available in OLED, TFT LCD, and monochrome LCD options to meet different application requirements.
Flexible Interface Options
-Support for SPI, I²C, MCU, RGB, MIPI, and other interfaces simplifies hardware integration.
Wide Operating Temperature
-Designed to operate reliably in harsh industrial and outdoor environments.
Excellent Viewing Performance
-Wide viewing angles provide clear visibility from different directions for improved user experience.
Custom Display Solutions
-Custom sizes, resolutions, brightness, touch panels, cover glass, and interface configurations are available to match specific project requirements.
Long-Term Supply
-Stable production and long product lifecycle support industrial and professional equipment manufacturers.
Laser Rangefinders
-Display real-time distance measurements, target information, battery status, and operating modes.
Golf Rangefinders
-Provide clear yardage readings and measurement data for enhanced on-course performance.
Hunting Rangefinders
-Ensure high-contrast visibility in various lighting conditions for outdoor use.
Construction Measuring Tools
-Display distance, area, volume calculations, and measurement settings for professional construction applications.
Surveying Instruments
-Support accurate data presentation in total stations, laser measuring devices, and field surveying equipment.
Industrial Measuring Equipment
-Deliver stable display performance for precision measurement, inspection, and automation systems.
Optical Measuring Devices
-Present measurement values and system information with high clarity for optical instruments.
Portable Test & Measurement Instruments
-Ideal for handheld electronic measuring devices that require compact size, low power consumption, and reliable operation.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
