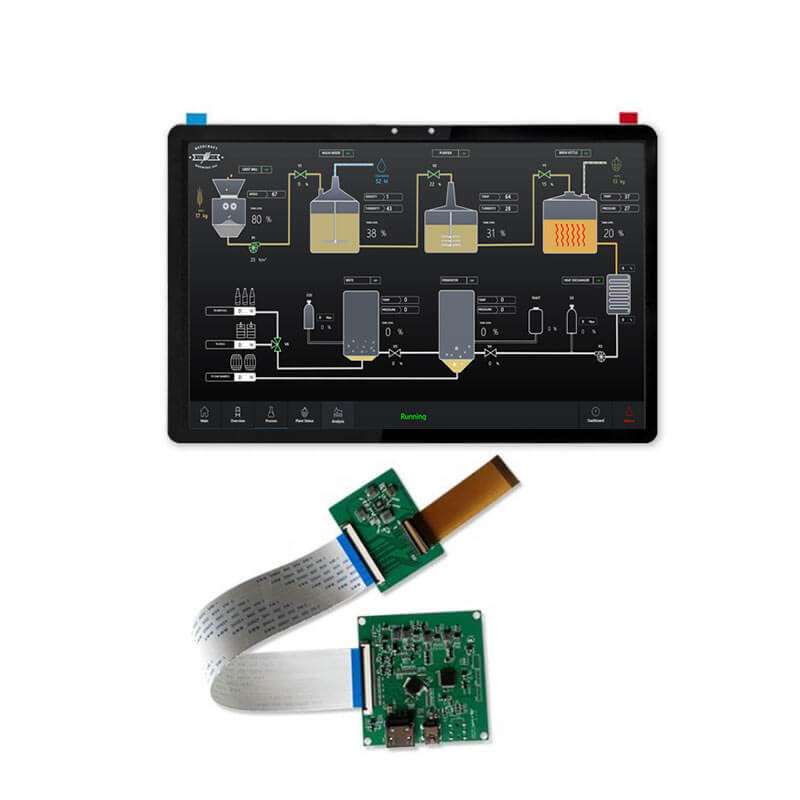

EB50QBC62.B 11.5 Inch AMOLED Display 2560x1600 MIPI Touch OLED Display With Driver Board

11.5 Inch AMOLED Display Overview

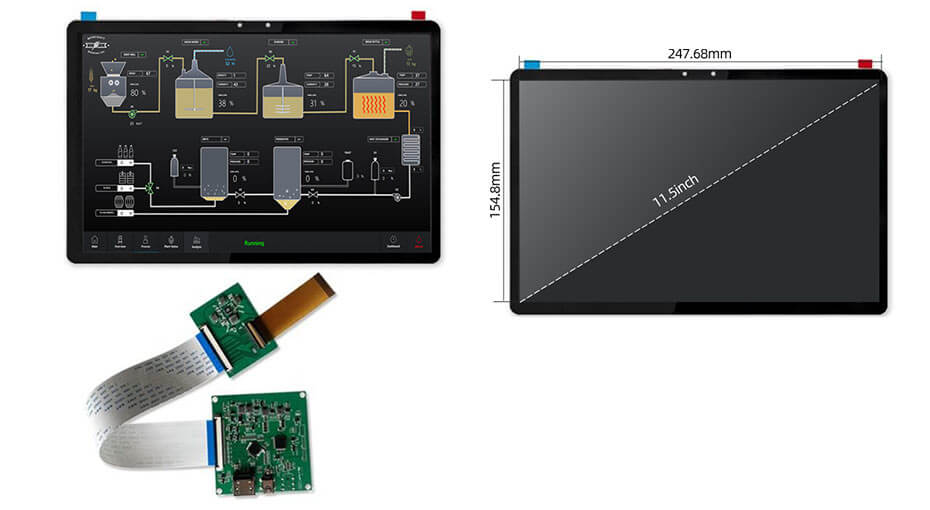

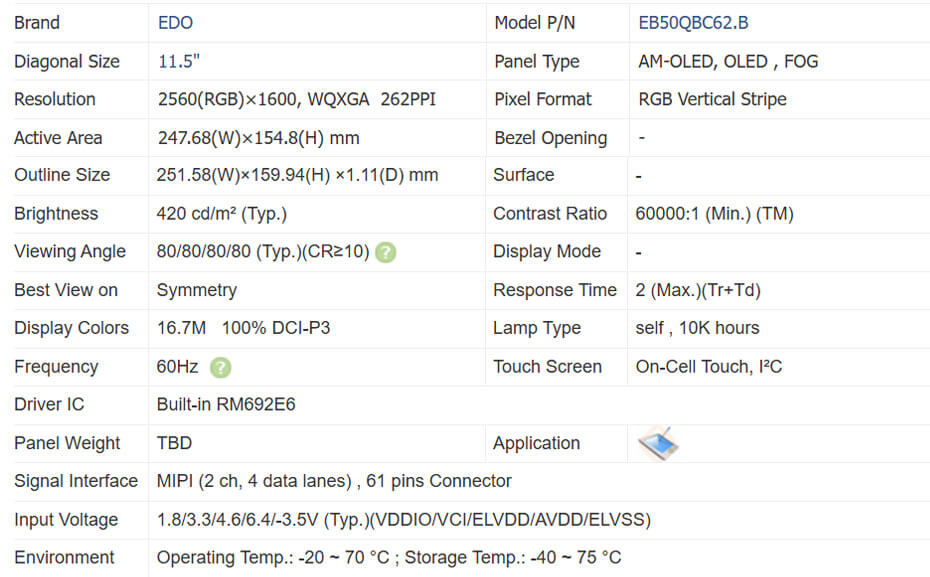

EB50QBC62.B supports display 2560(RGB)×1600 (WQXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 262 PPI. As for mechanical detail, it features active area of 247.68(W)×154.8(H) mm, outline size of 251.58(W)×159.94(H)×1.11(D) mm, net weight of TBD. EB50QBC62.B can provides 420 cd/m² display brightness 60000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 2 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself and have a working life time of 10K hours. EB50QBC62.B utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 61 pins Connector with power supply voltage of 1.8/3.3/4.6/6.4/-3.5V (Typ.)(VDDIO/VCI/ELVDD/AVDD/ELVSS). It's typical vertical frame rate (Fv) is 60Hz.
