HSD078GXN1-A00 7.8 Inch Reflective Display 768x1024 Sunlight Readable MIPI MIP Display

HSD078GXN1-A00 Overview

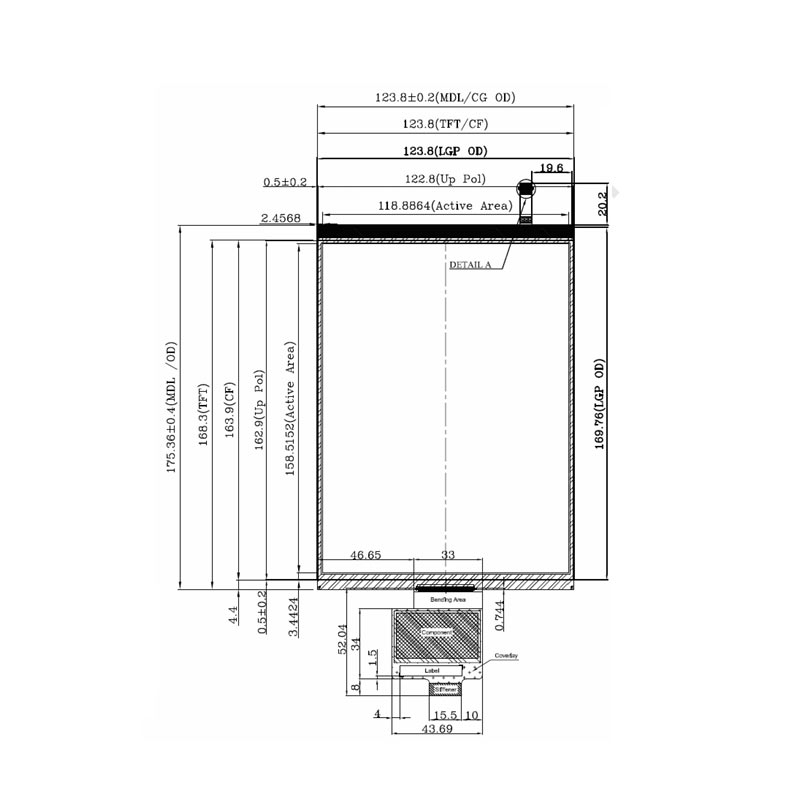

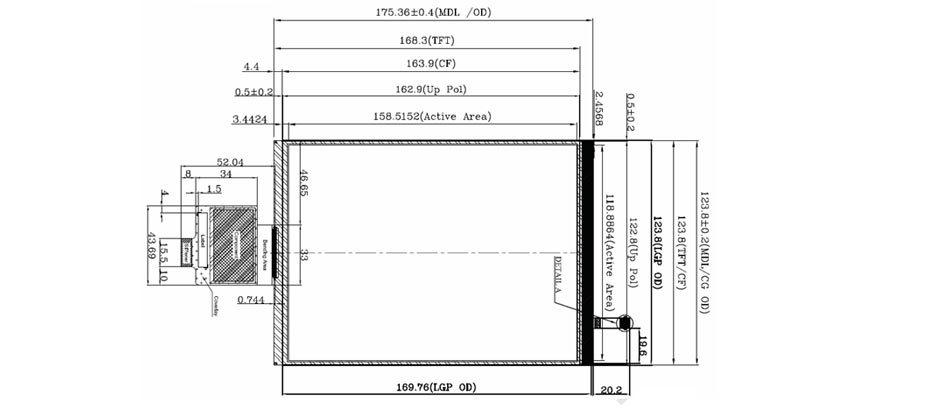

HSD078GXN1-A00 supports display 768(RGB)×1024 (XGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 118.886(W)×158.512(H) mm, outline size of 123.8(W)×175.36(H) mm, net weight of 150g (Typ.). As a TN, Normally White, Reflective LCM product, HSD078GXN1-A00 can provides 100 cd/m² display brightness 5:1 transimissive contrast ratio, 15:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 5 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 5% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Front light type and have a working life time of 15K hours, external backlight driver is additionally needed. HSD078GXN1-A00 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 1.8/3.3V (Typ.)(IOVCC/VCI). It's typical vertical frame rate (Fv) is 60Hz.

HSD078GXN1-A00 Feature
-Reflective
-Sunlight Readable
-WLED Backlight
-Portrait type

Screen Size: 7.8 inch
Resolution: 768x1024
Brand: HannStar
HSD078GXN1-A00 7.8 Inch 768x1024 Reflective TFT LCD Display.

HSD078GXN1-A00 Application
For Wearable & Industrial LCD Display.

Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
