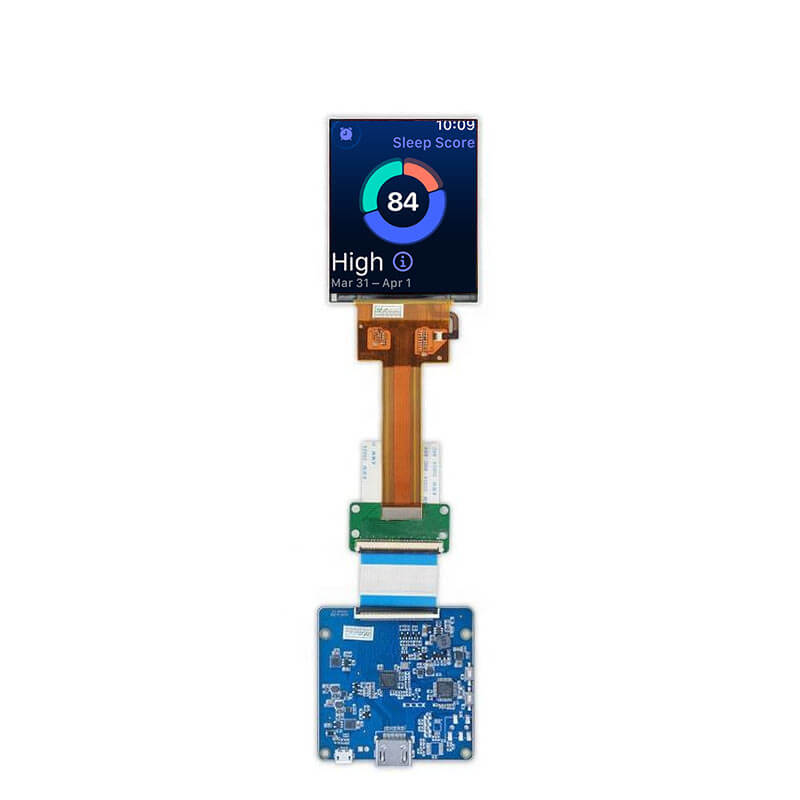

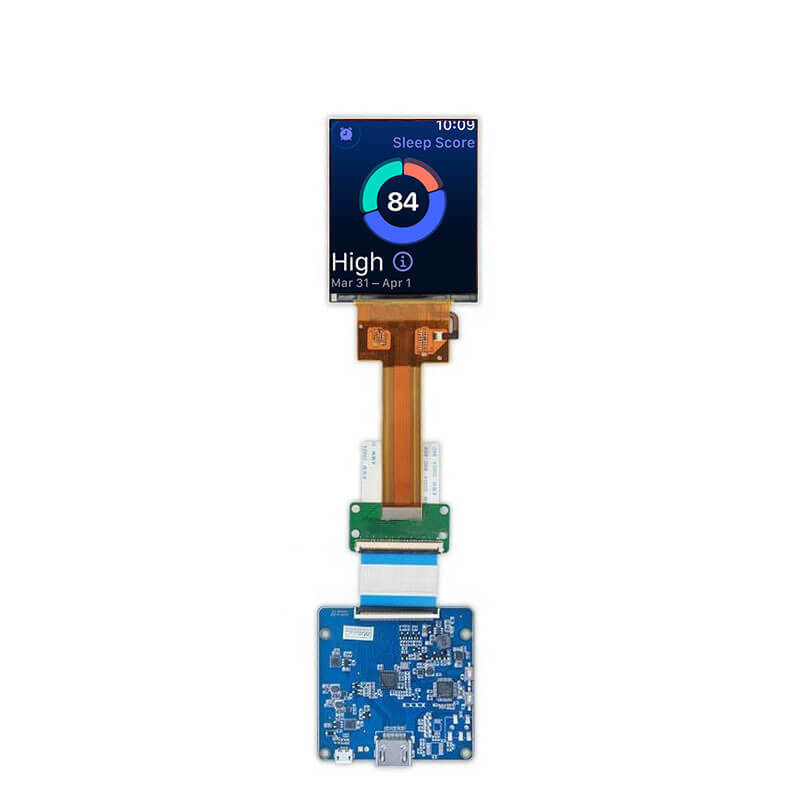

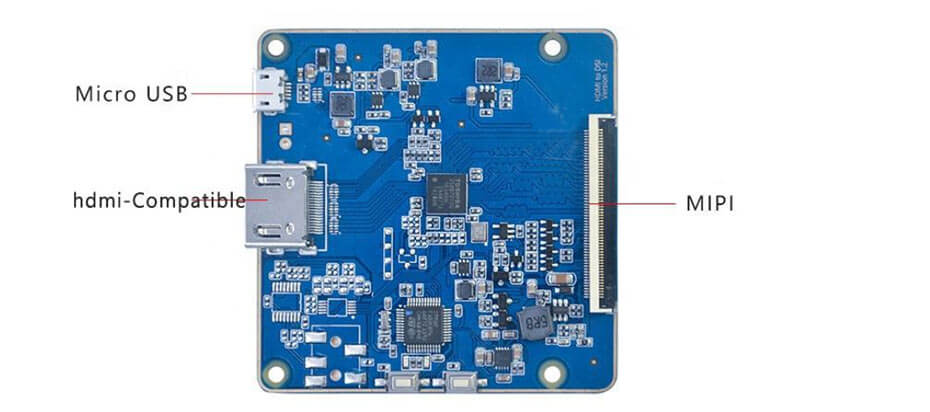

LPM034M131A 3.4 Inch TFT LCD Display 1440x1700 LCD Module Panel With Driver Board For Vr Glass VR Headset.

3.4 Inch LCD Display Overview

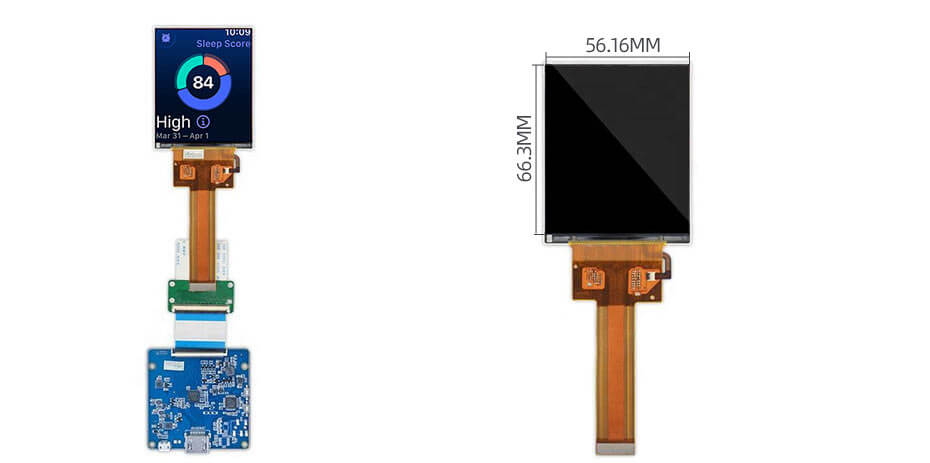

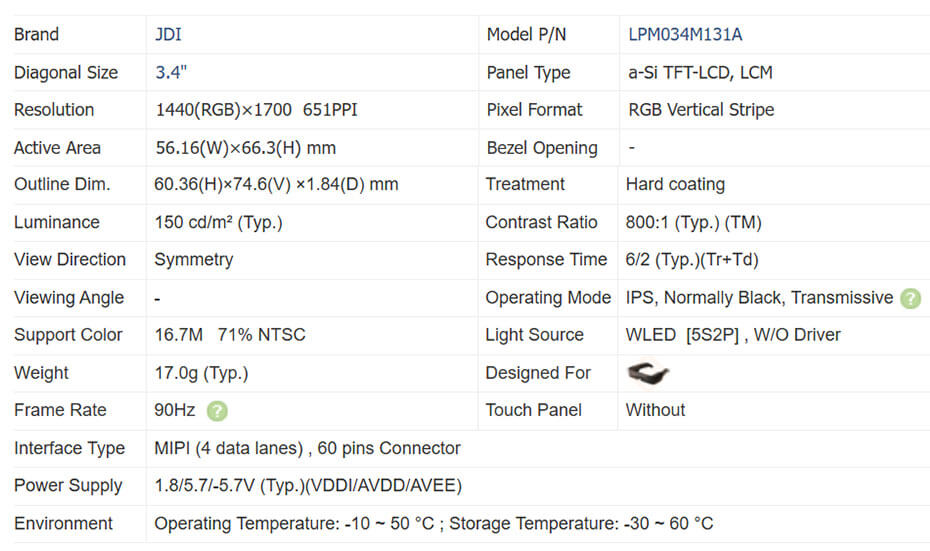

LPM034M131A supports display 1440(RGB)×1700 with aspect ratio of 6:7 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 651 PPI. As for mechanical detail, it features active area of 56.16(W)×66.3(H) mm, outline size of 60.36(W)×74.6(H)×1.84(D) mm, with surface treament of Hard coating, net weight of 17.0g (Typ.). As a IPS, Normally Black, Transmissive LCM product, LPM034M131A can provides 150 cd/m² display brightness 800:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 6/2 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 71% (NTSC).

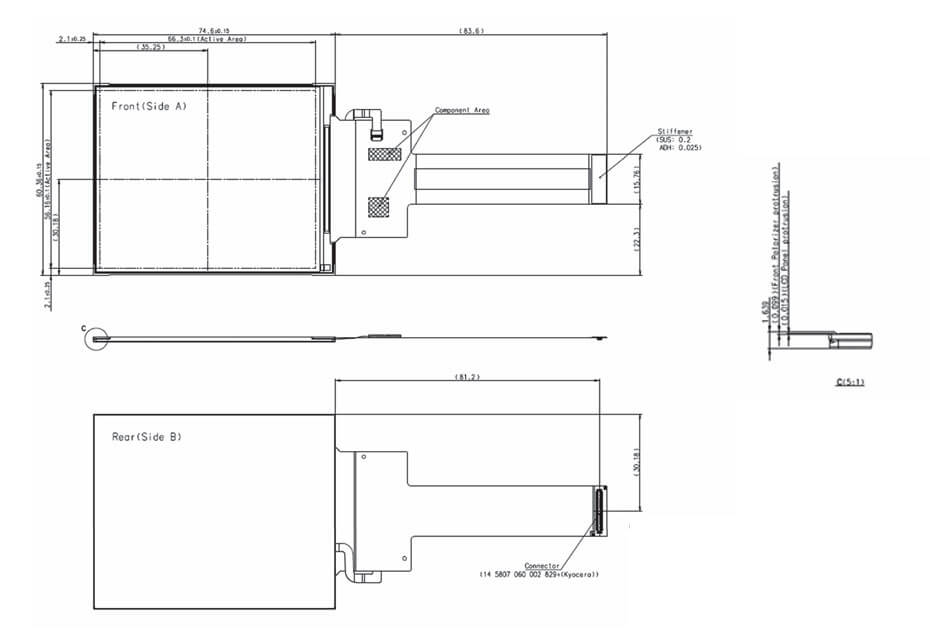

3.4 Inch LCD Display Drawing
