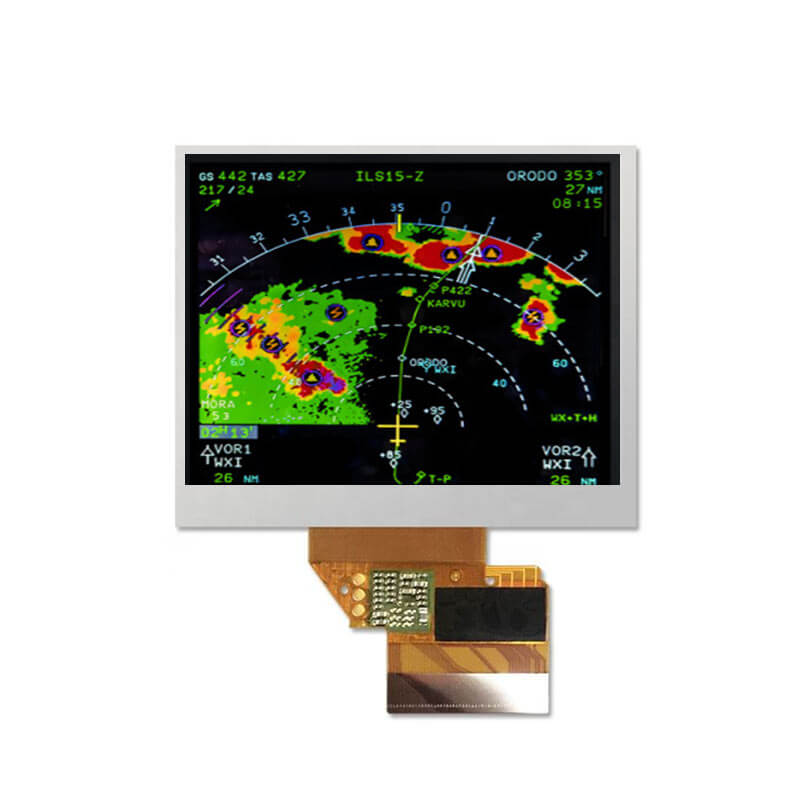

LQ035Q3DG03 3.5 Inch TFT LCD Display 320x240 Parallel RGB+SPI LCD Display With Driver Board For Handheld Pda Industrial

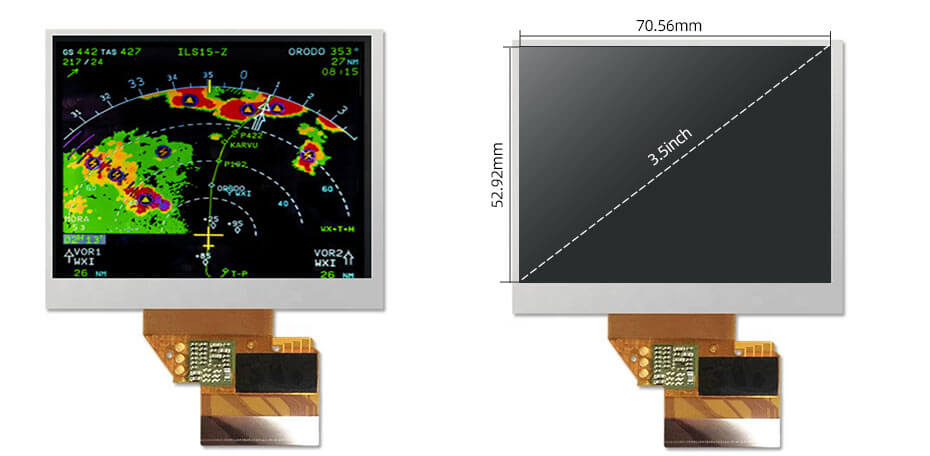

3.5 Inch LCD Display Overview
LQ035Q3DG03 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 70.56(W)×52.92(H) mm, outline size of 76.9(W)×63.9(H)×4.9(D) mm, viewing area size of 71.6(W)×54.0(H) mm, with surface treament of Antiglare, net weight of 42.0g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ035Q3DG03 can provides 450 cd/m² display brightness 300:1 transimissive contrast ratio, 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. LQ035Q3DG03 utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/3.3V (Typ.)(VDDIO/VCI). It's typical vertical frame rate (Fv) is 60Hz.

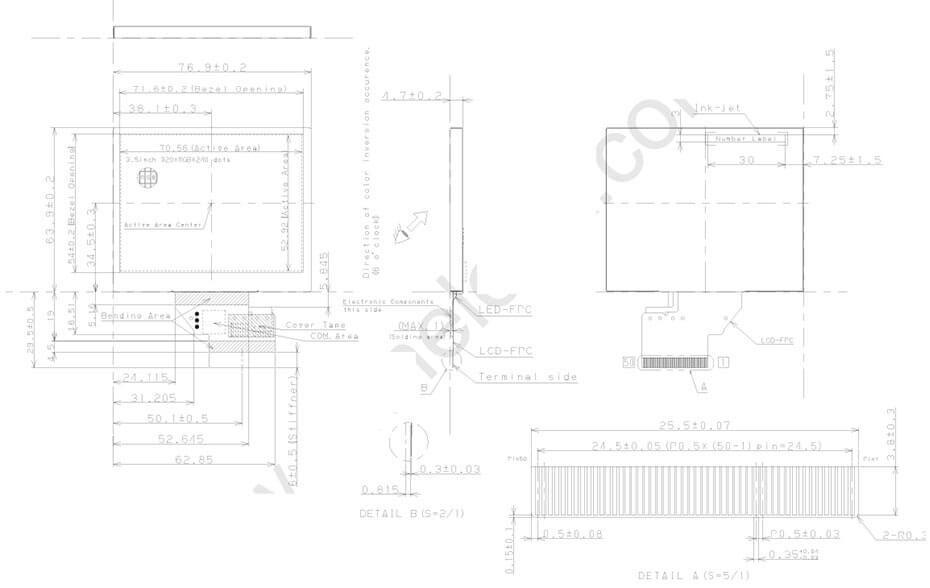

3.5 Inch LCD Display Drawing
