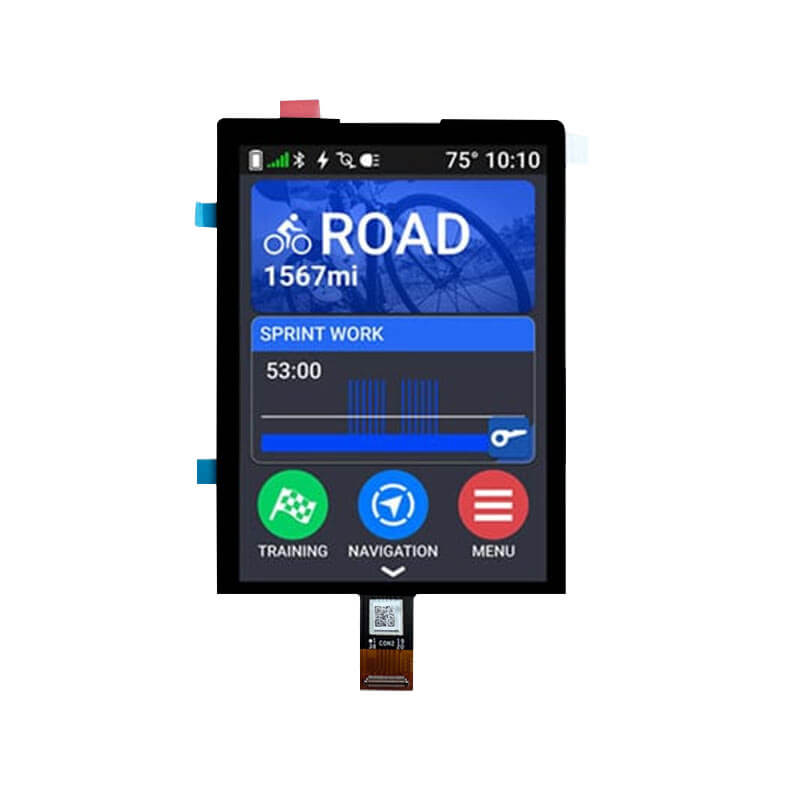

3.92 Inch AMOLED Display 1080x1240 MIPI CH13726 19pin High Brightness 500nit OLED Display With Driver Board

Part No.:ET0392001A
Size:3.92″ inch
Resolution:1080x1240
Panel Interface:MIPI
Display mode:AM-OLED
Outline Dimension:93.1x69.3mm

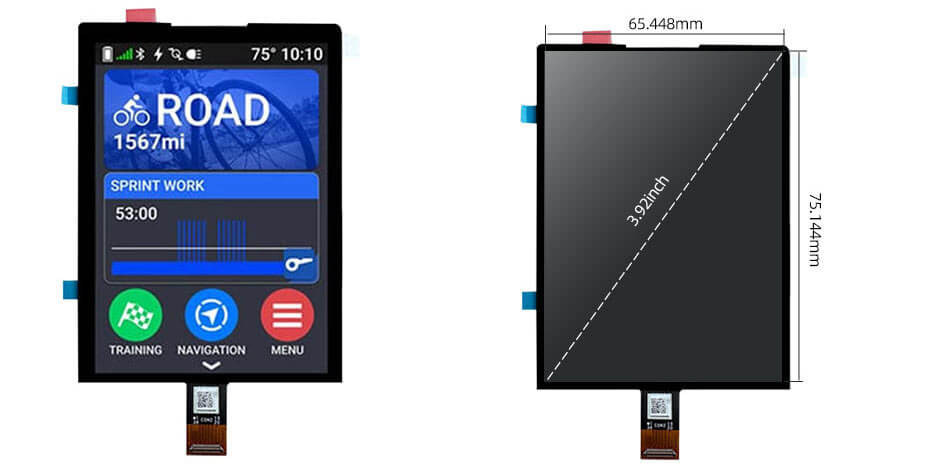

Active Area:65.448x75.144mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:-20~70°C / -40~80°C
Touch:yes

3.92 Inch LCD Display Overview
3.92 Inch AMOLED Display 1080x1240 MIPI CH13726 19pin High Brightness 500nit OLED Display With Driver Board.

Panel Size: 3.9"
Resolution: 1080x1240
Aspect Ratio: 6:7 (W:H)
Form Factor: Flat Rectangle
Active Area: 65.448x75.144mm
Outline Dimension: 93.1x69.3mm
Max. Depth: 1.65 mm
Brightness: 500 (Typ.)
Viewing Angle: 85/85/85/85 (L/R/U/D)
Display Colors: 16.7M
Interface Type: MIPI
Interface Pins: 19 Pins
Touch Panel: On-Cell Touch
Operating Temp.: -20~ 70°C
Storage Temp.: -40~80°C
