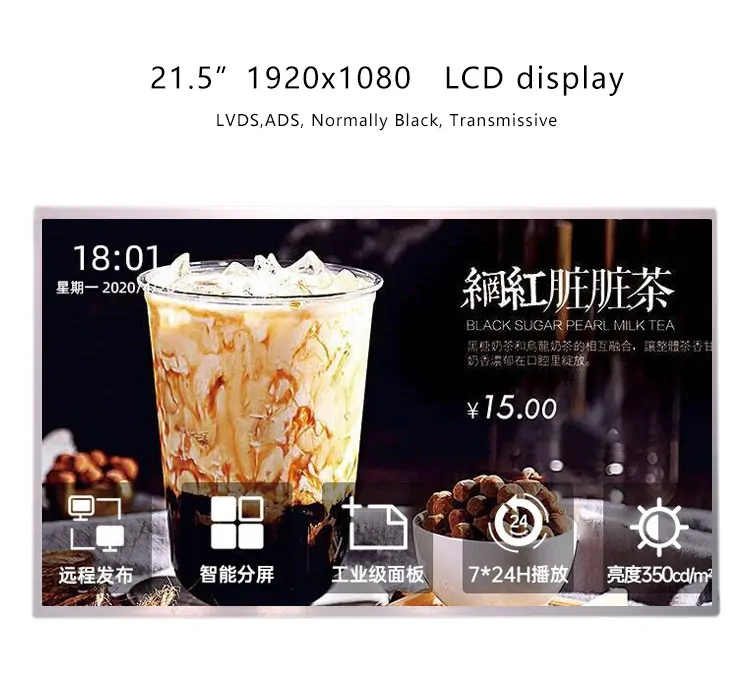

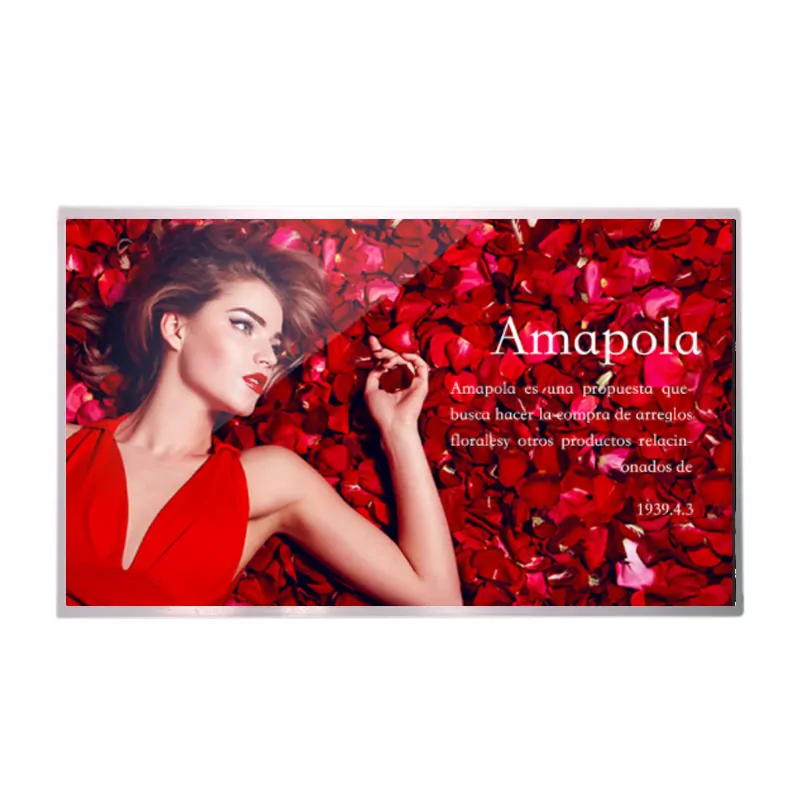

DV215FHM-NN0 21.5 Inch 1920x1080 Resolution Free Angle with LVDS 30 Pins LCD Display For Digital Signage

Part No.:DV215FHM-NN0
Size:21.5″ inch
Resolution:1920x1080
Panel Interface:LVDS (2 ch,8-bit)
Display mode:Transmissive
Outline Dimension:485.6(W)x292.2(H)mm
Active Area:476.64(W)x268.11(H)mm
Viewing Angle L/R/U/D:89/89/89/89 (Typ.)
Brightness（cd/m2）:350cd/m²(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

Products Description

LCD SPECIFICATION
Panel Size	21.5"	Panel Type	a-Si TFT-LCD, LCM
Pixel Number	1920(RGB)×1080, FHD, 102PPI	Configuration	RGB Vertical Stripe
Active Area(mm)	476.064(W)×267.786(H) mm	Outline(mm)	495.6(W)×292.2(H) ×11.2(D) mm
Bezel Area(mm)	479.8(W)×271.2(H) mm	Treatment	Antiglare, Hard coating (3H)
Luminance	500 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	ADS, Normally Black, Transmissive
View Direction	Symmetry	Response Time	14 (Typ.)(G to G)
Support Color	16.7M 73% NTSC	Backlight	24S3P WLED , 30K hours , Without Driver
Weight	1.97Kgs (Typ.)	Used for	Digital Signage
Frame Rate	60Hz	Touchscreen	Without
Signal Interface	LVDS (2 ch, 8-bit) 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
