2.88 Inch Square Display 480x640 RGB/MIPI LCD Display With Driver Board For Digital Camera

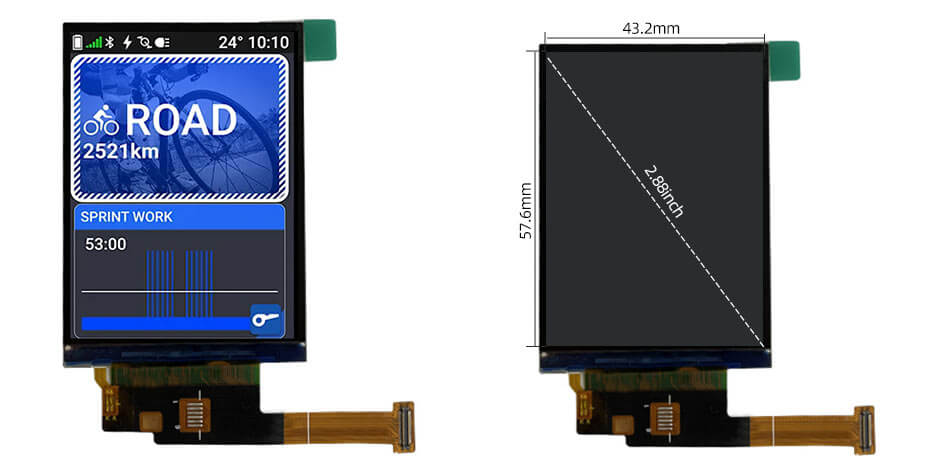

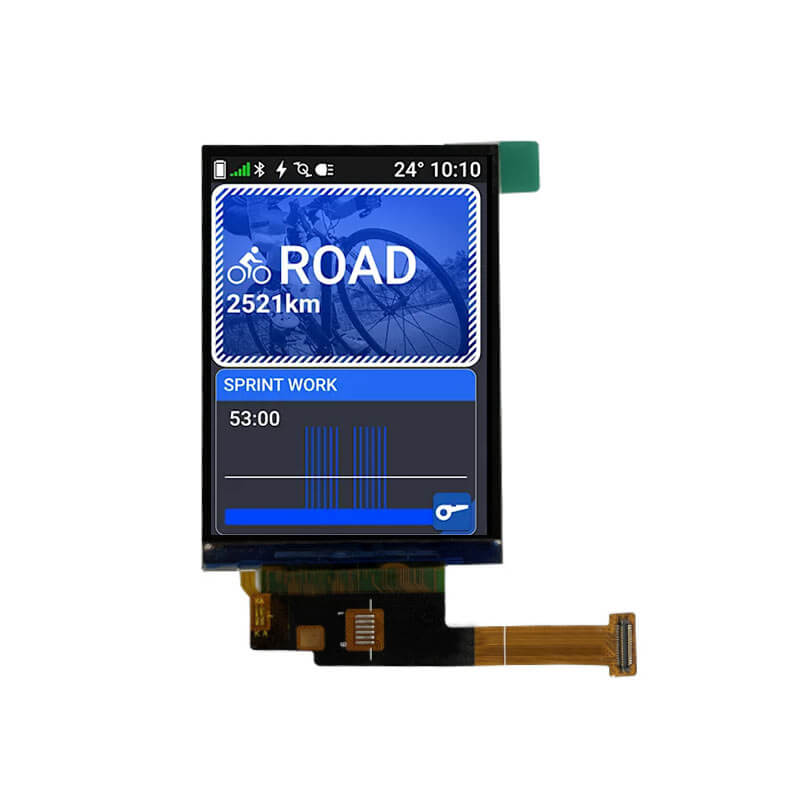

2.88 Inch LCD Display Overview
ET0288S023V0 is a 2.88-inch square IPS TFT display module designed for digital camera applications. It features a 480 × 640 resolution and supports RGB and MIPI interfaces, providing flexible connectivity options. The display offers an active area of 43.2 × 57.6 mm within a compact outline dimension of 46.2 × 65.18 × 1.65 mm. With wide viewing angles of 85° in all directions and a brightness of 350 nits, it ensures clear and consistent image quality. The module operates reliably over a wide temperature range of −30 to 80 °C (storage −30 to 80 °C), making it suitable for demanding environments.

Resolution:480x640
Type:IPS TFT
Interface:RGB/MIPI
Application:Medical Instrument
Viewing Angle:85/85/85/85
Operating Temperature:-30~+80°C
Display Area:43.2x57.6mm
Outter dimension:46.2x65.18x1.65mm

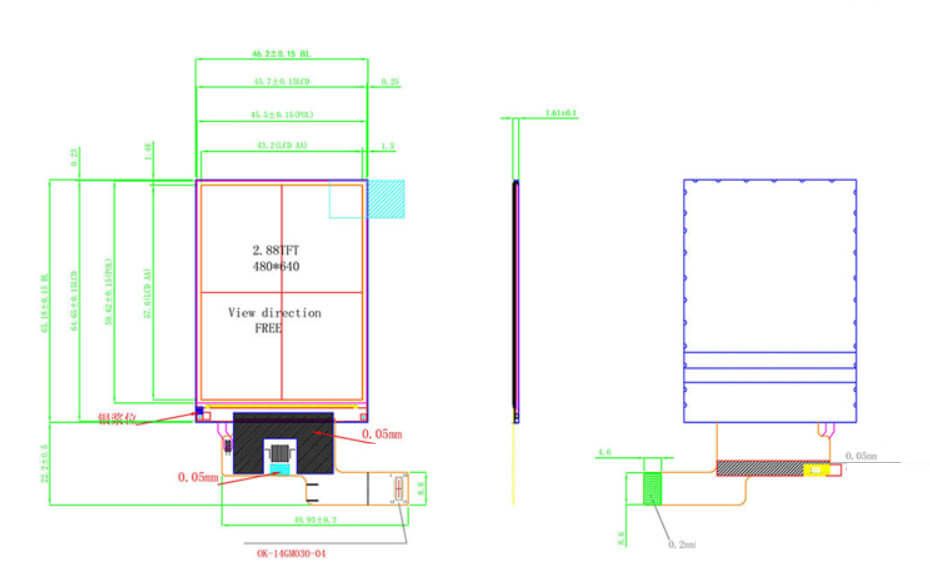

2.88 Inch LCD Display Drawing
