3.4 Inch Square Display Overview

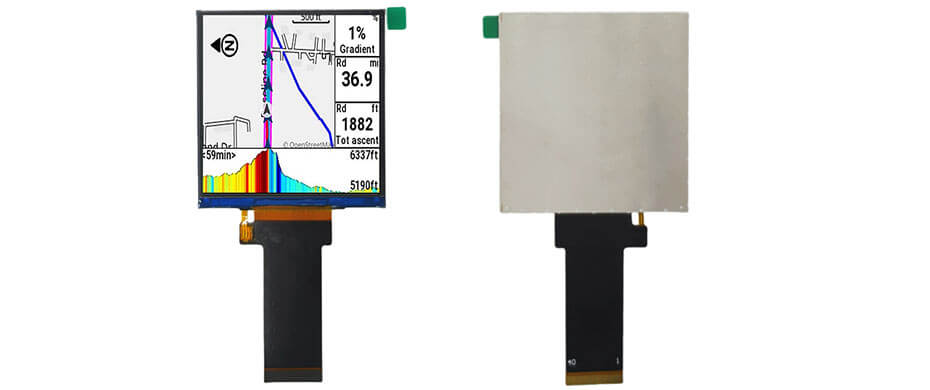

ET034SQ01-A is a 3.4-inch diagonal square TFT LCD display featuring a 480×480 resolution and supporting CPU, RGB, and SPI interfaces. The display operates in transmissive mode and provides an active area of 60.48(W)×60.48(H) mm, with an outline size of 65.72(W)×69.64(H) mm. ET034SQ01-A delivers a typical brightness of 550 cd/m² and offers wide viewing angles of 85° in all directions (L/R/U/D). It is designed for reliable operation over a temperature range of –10 °C to 60 °C and storage from –20 °C to 70 °C. This model does not include touch functionality.
More 3.4 Inch Square Display For Reference
ET034SQ01-Z (480x480, MIPI, 550nits, -20~70°C, 65.72x69.64mm)
ET034SQ01-A (480x480, CPU/RGB/SPI, 550nits, -10~60°C, 65.72x69.64mm)
ET034WV02-KT (480x480, MIPI, 850nits, -20~70°C, 69.64x65.72mm)
