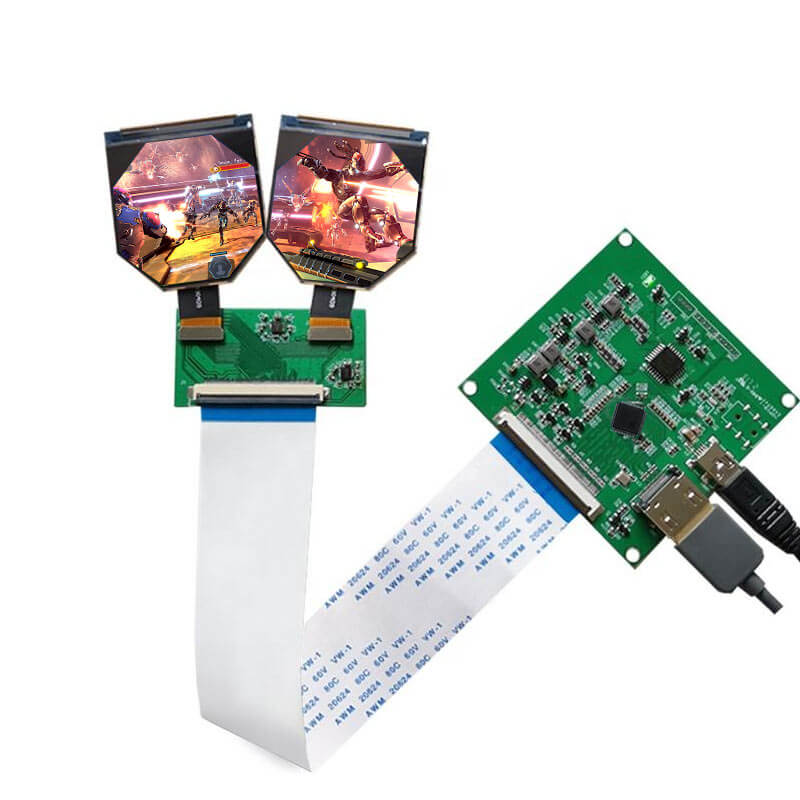

LPM021M528C JDI 2.1 Inch TFT LCD Display 1600x1600 MIPI LCD Display With Driver Board For VR

2.1 Inch LCD Display Overview

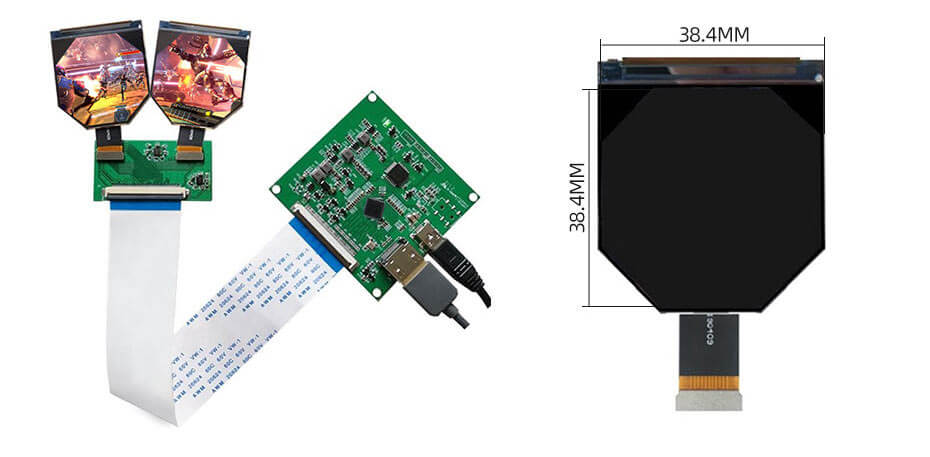

LPM021M528C is a 2.1 inch diagonal LTPS TFT-LCD display screen product from JDI, with a built-in WLED backlight, without backlight driver, without touch screen. LPM021M528C supports display 1600(RGB)×1600 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 1058 PPI. It features active area of 38.4(W)×38.4(H) mm, outline size of 41.2(W)×45.3(H)×1.85(D) mm, with surface treament of Hard coating, net weight of 5.90g (Typ.). As a IPS, Normally Black, Transmissive LCM product, LPM021M528C can provides 430 cd/m² display brightness 700:1 transimissive contrast ratio, best view direction on Symmetry , and response time of 4.5 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 71% (NTSC).

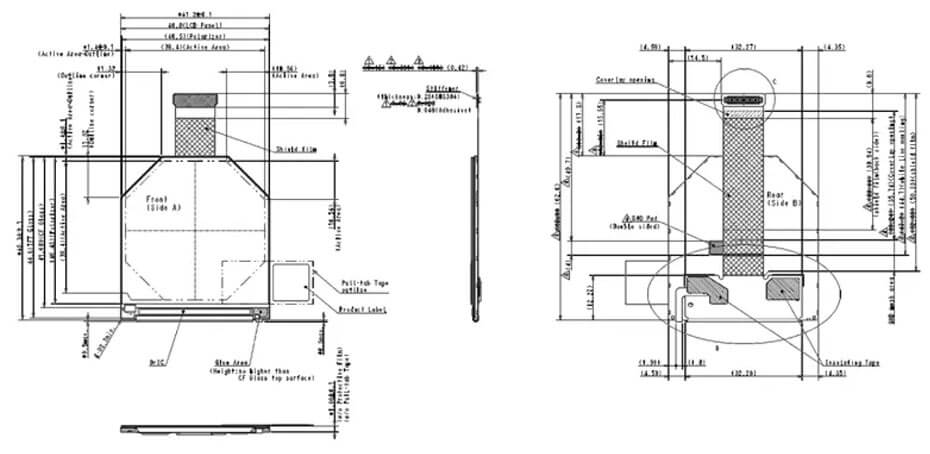

2.1 Inch LCD Display Drawing
