1.6 Inch Round TFT Knob LCD Display 400x400 SPI/USB Capacitive Touch Knob Panel With Board

Part No.:ET016SK01-XL
Size:1.6″ inch
Resolution:400x400
Panel Interface:SPI/USB
Display mode:TFT
Outline Dimension:/
Active Area:45.1x42.5mm
Viewing Angle L/R/U/D:/
Brightness（cd/m2）:230cd/m2
Operation / Storage Temp:-10~70°C / -20~80°C
Touch:yes

1.6 Inch Knob Display Overview

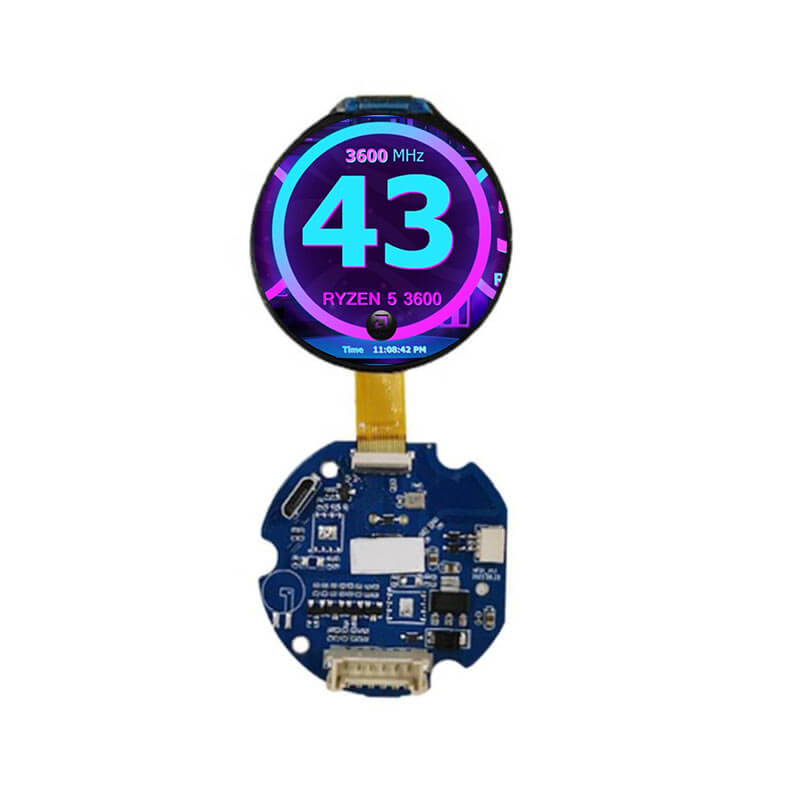

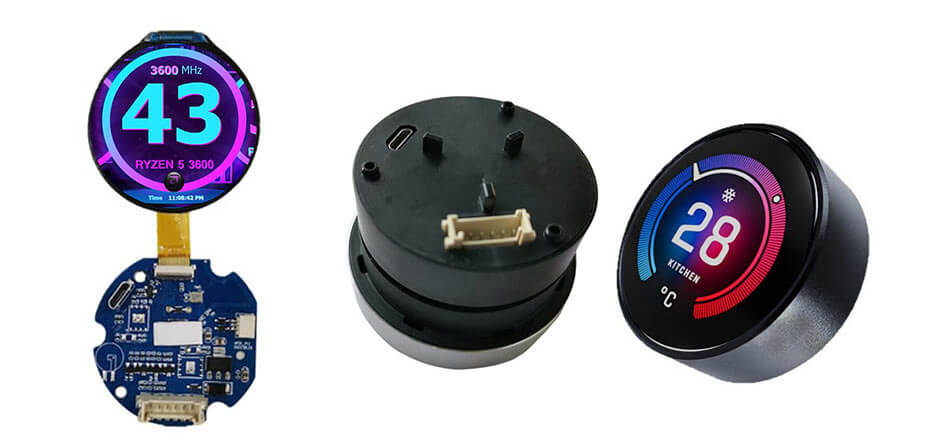

ET016SK01-XL is a 1.6-inch round TFT knob display with a resolution of 400×400. It supports SPI and USB interfaces and integrates a capacitive touch knob panel with driver board. The display offers an active area of 45.1 × 42.5 mm, typical brightness of 230 cd/m², and operates from −10 to 70 °C (storage −20 to 80 °C).

Type: TFT Display
Size: 1.6 inch
Resolution: 400x400
Interface: SPI/USB
Application: Smart Products
Brightness:230cd/m2
Contrast Ratio:1000:1
Color :16.7M
Touch panel: Capacitive Touch Optional
