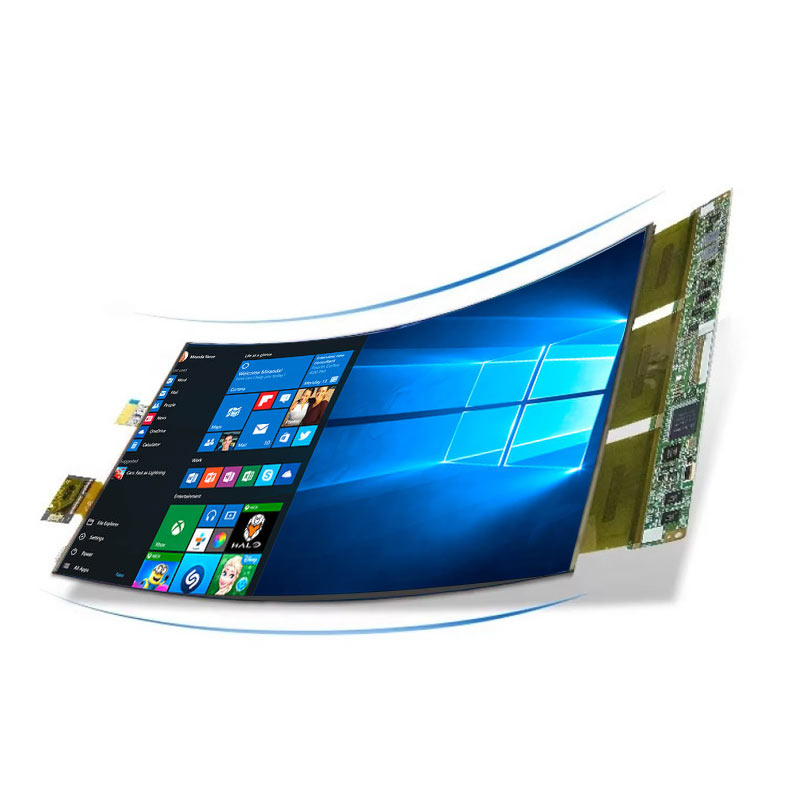

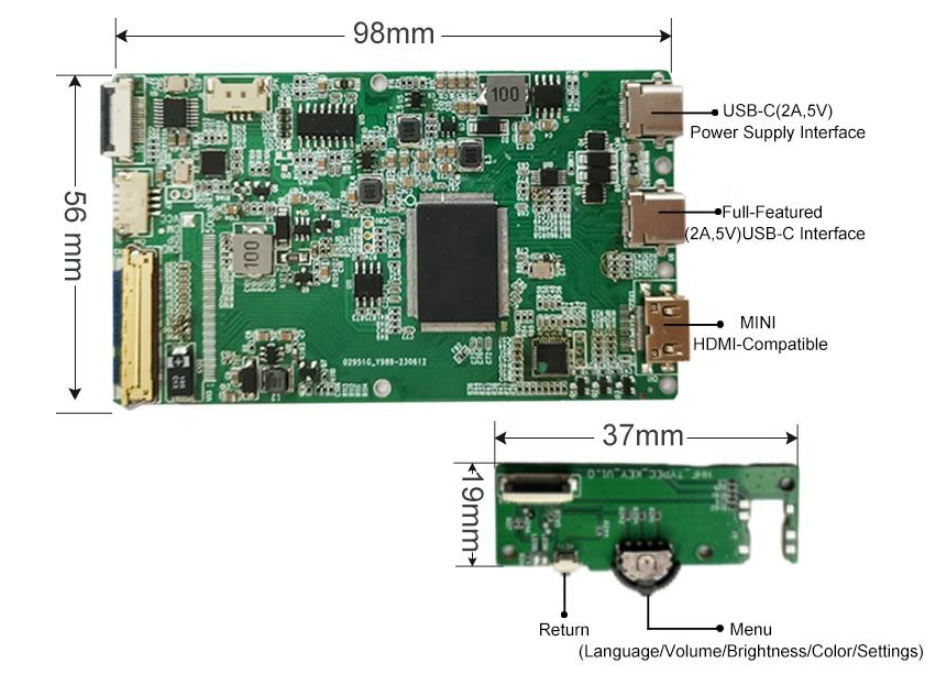

LP133QX1-EPA1 LG 13.3 Inch AMOLED Display 1536x2048 eDP Touch OLED Display With Driver Board

13.3 Inch LCD Display Overview

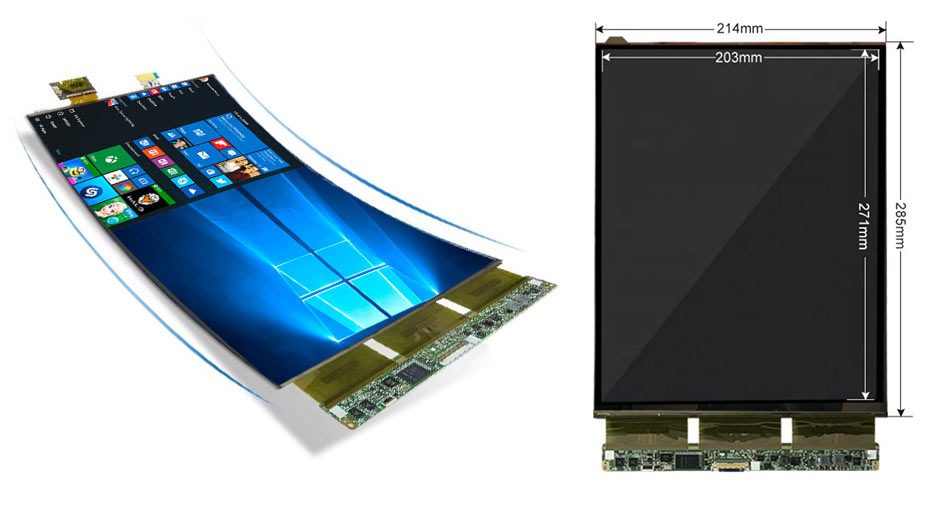

LP133QX1-EPA1 is a 13.3 inch diagonal AM-OLED display screen product, it self emiting, touchscreen On-Cell Touch. LP133QX1-EPA1 supports display 1536(RGB)×2048 with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 202.752(W)×270.336(H) mm, outline size of 213.8(W)×284.8(H) mm, with surface treament of Glare (Haze 0%), Hard coating (6H), net weight of 120g (Max.). LP133QX1-EPA1 can provides 300 cd/m² display brightness 5000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 2 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 117% (NTSC). This product emiting itself and have a working life time of 15K hours. LP133QX1-EPA1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
