10.2"-17.3" LCD Display (13.3")

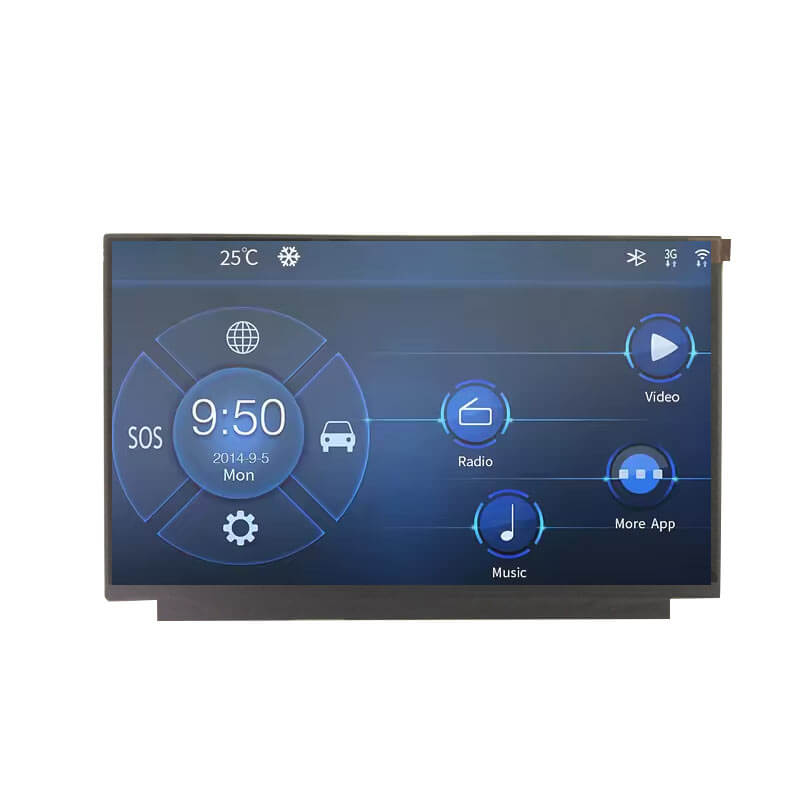

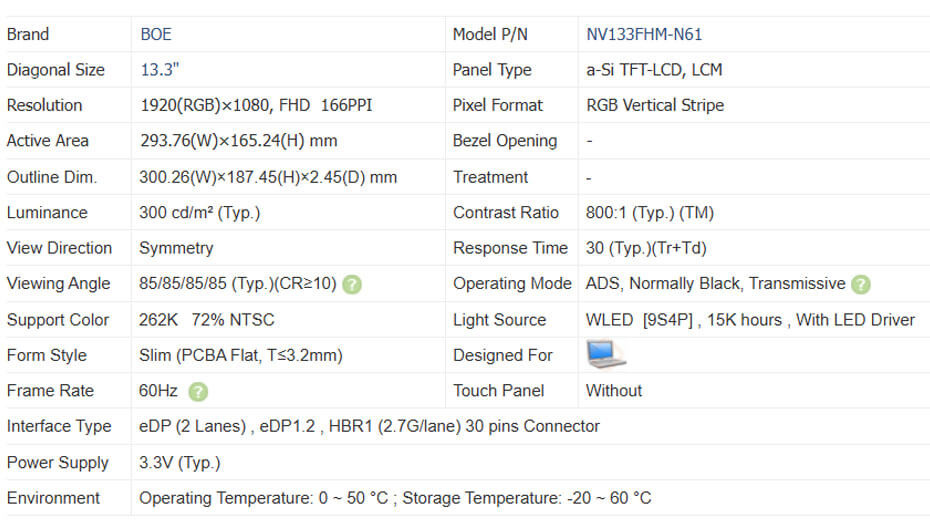

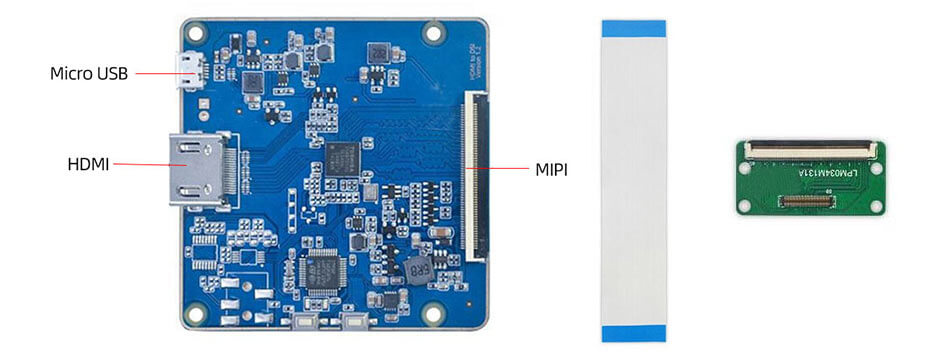

NV133FHM-N61 BOE 13.3 Inch TFT LCD Display 1920x1080 eDP LCD Panel With Driver Board

Part No.:NV133FHM-N61
Size:13.3″ inch
Resolution:1920x1080
Panel Interface:eDP (2 Lanes)
Display mode:ADS,Transmissive
Outline Dimension:300.26x187.45x2.45mm

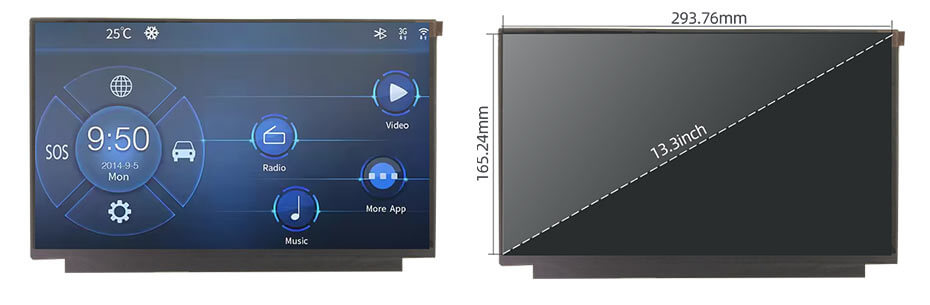

Active Area:293.76x165.24mm
Viewing Angle L/R/U/D:85/85/85/85 (Typ.)
Brightness（cd/m2）:300cd/m²(Typ.)
Operation / Storage Temp:0~50°C / -20~60°C
Touch:no

13.3 Inch LCD Display Overview
NV133FHM-N61 is a 13.3 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by Panelook in the following: WLED Backlight, With LED Driver, Reverse I/F , eDP1.2.
