10.2"-17.3" LCD Display (12.8)

12.8 Inch LCD Display 5448x3064 EDP 5K Monochrome LCD Display With Driver Board For 3D Printer

Part No.:ET128MONO-W
Size:12.8″ inch
Resolution:5448x3064
Panel Interface:EDP
Display mode:Monochrome LCD
Outline Dimension:297.1x165.1x1.25mm
Active Area:/
Viewing Angle L/R/U/D:ALL O\\\'Clock
Brightness（cd/m2）:/
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

12.8 Inch LCD Display Overview

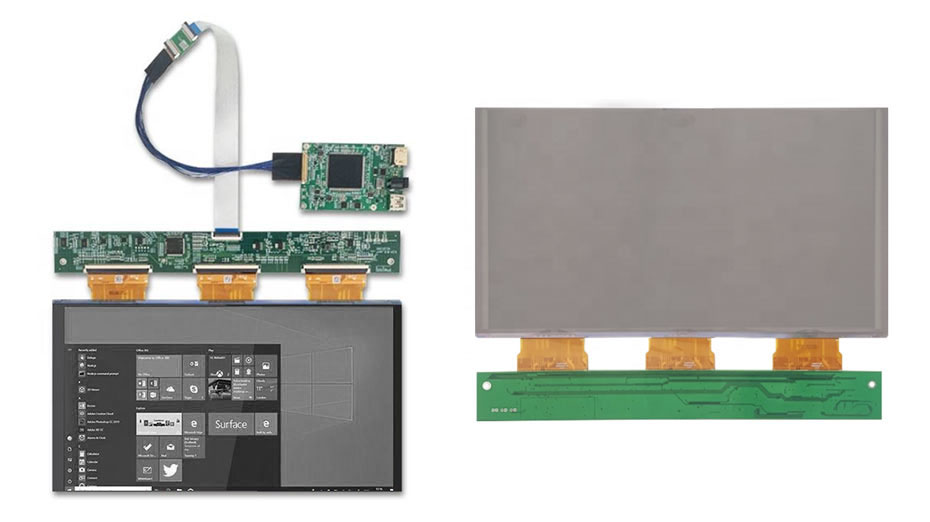

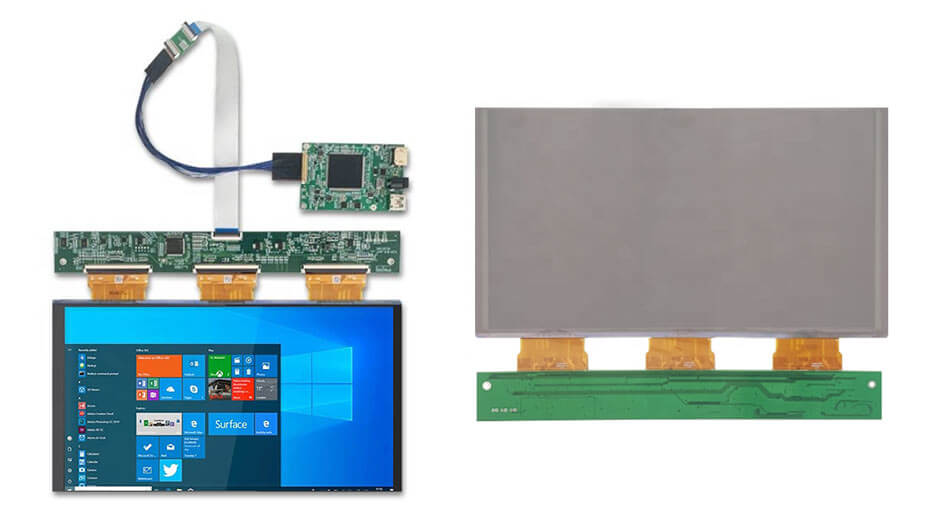

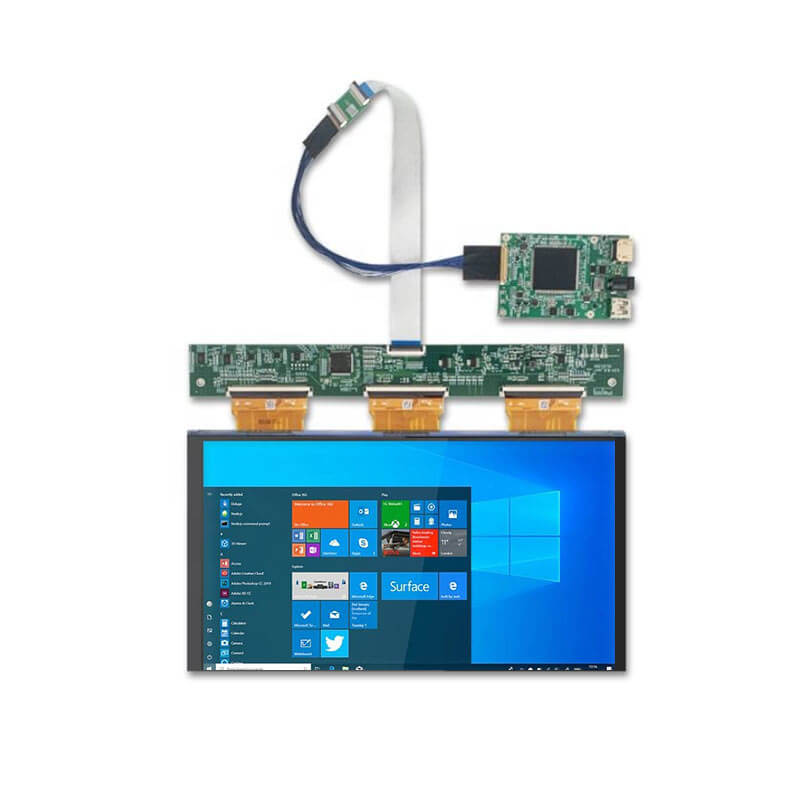

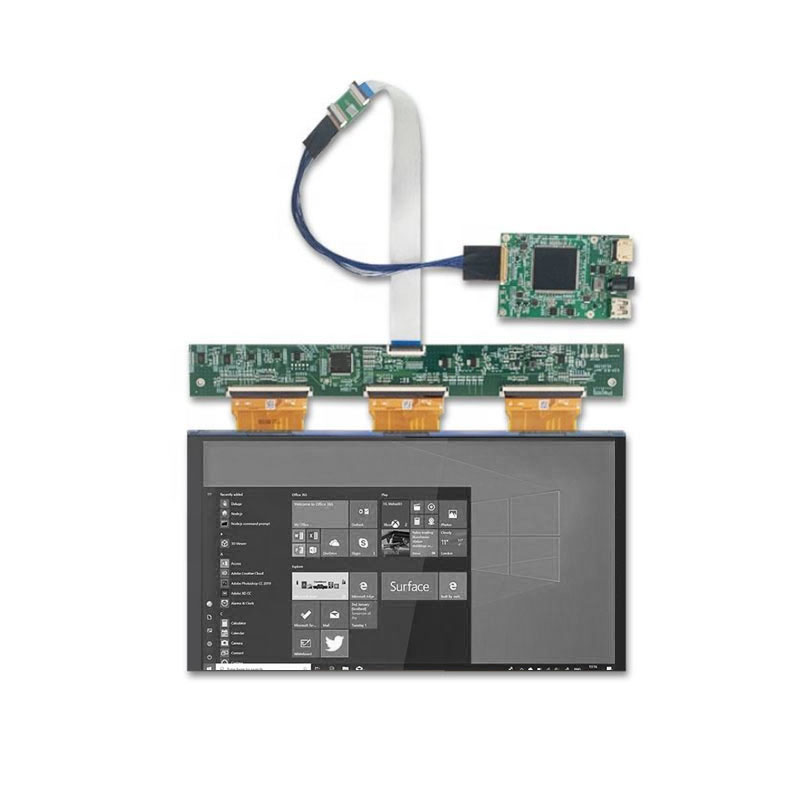

ET128MONO-W is a 12.8-inch monochrome LCD display with an ultra-high 5K resolution of 5448×3064, designed for precision applications such as 3D printing. It uses an eDP interface and is supplied with a driver board. The module features a slim outline dimension of 297.1 × 165.1 × 1.25 mm, offers all-direction viewing angles, operates reliably from −20 to 70 °C (storage −30 to 80 °C), and does not support touch functionality.

1. High Transmittance: under 405 nm UV light, monochrome 6% VS RGB LCD <1% Better than ordinary LCD, save much time during printing process;
2. 5K High Resolution : Real 5K, 5448x3064;
3. Durable LCD and driver IC: 1.25 mm thickness,not easily to be broken;
4. Original Open Cell Screen (monochrome LCD without backlight);
5. High PPI: 488PPI
