1.9 Inch High Brightness Display 1000nits IPS 1600x1200 MIPI TFT LCD Display For Handheld PDA

1.9 Inch High Brightness LCD Display Overview

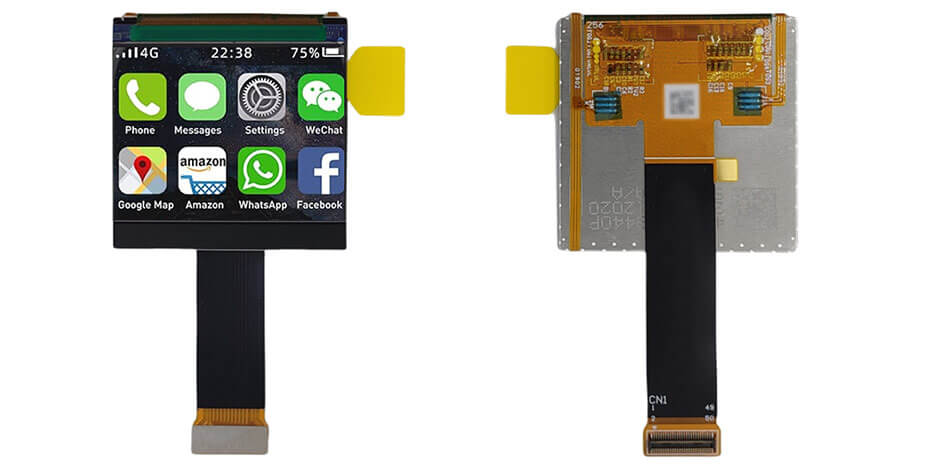

ET019HD01-AM is a 1.9-inch diagonal high-brightness IPS TFT LCD display designed for handheld PDAs. It supports a resolution of 1600×1200 with a MIPI interface. The display features an active area of 38.4(W)×28.8(H) mm and an outline dimension of 41.2×40.6 mm. ET019HD01-AM provides a typical brightness of 1000 cd/m², offers viewing angles of 25°/25°/35°/35° (L/R/U/D), operates within –10 °C to 55 °C (storage –30 °C to 70 °C), and does not include touch functionality.

More 1.9 Inch High Brightness LCD Display For Reference

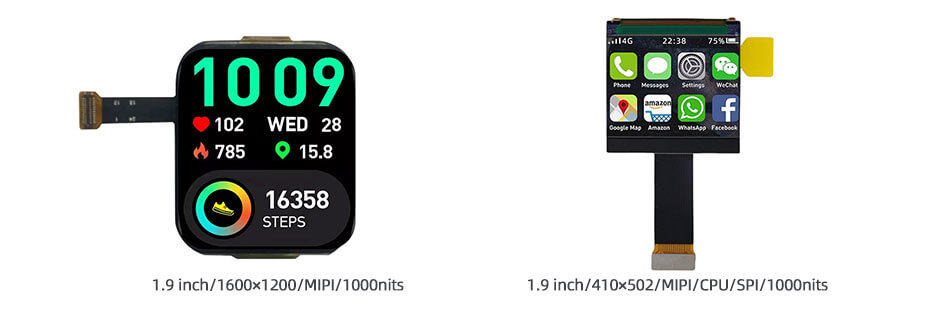

ET019HD01-AM (1600x1200, MIPI, 1000nits, -10~55°C, 41.2x40.6mm)
ET019AM01-TT (410x502, MIPI/CPU/SPI, 800nits, -20~70°C, 38.27x45.25mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
