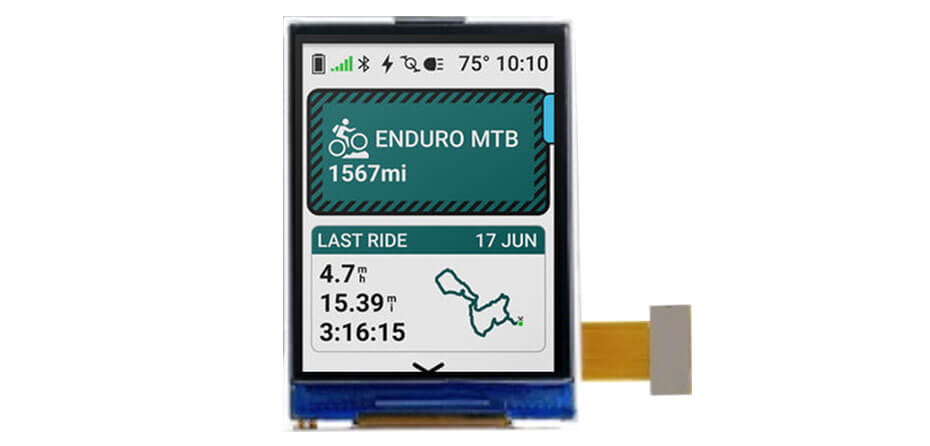

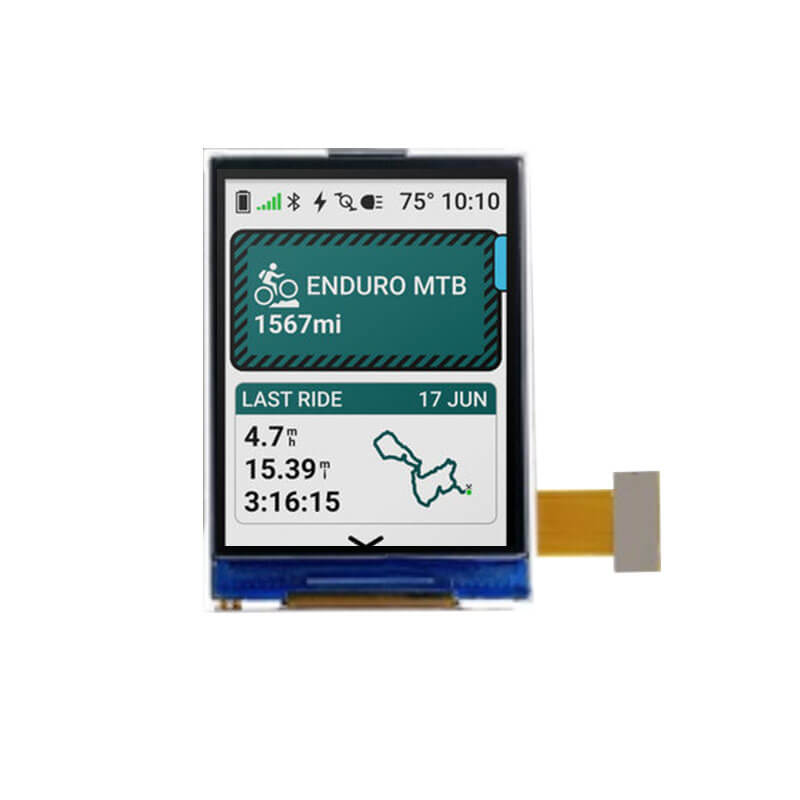

2.2 Inch TFT LCD Display 240×320 CPU RGB Transflective LCD Display For Cycling Computer Bike Display

Part No.:ET022QV02-R
Size:2.2″ inch
Resolution:240x320
Panel Interface:CPU/RGB
Display mode:Transflective
Outline Dimension:40.4x56.48mm
Active Area:33.84x45.12mm
Viewing Angle L/R/U/D:35/35/35/65
Brightness（cd/m2）:160nits
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

2.2 Inch TFT LCD Display 240×320 CPU RGB Transflective LCD Display For Cycling Computer Bike Display Video

2.2 Inch TFT LCD Display 240×320 CPU RGB Transflective LCD Display For Cycling Computer Bike Display Overview

ET022QV02-R is a 2.2-inch diagonal TFT-LCD display module featuring a transflective display mode. It supports a resolution of 240×320 with a 3:4 aspect ratio (W:H) and adopts CPU/RGB interfaces for flexible integration. The display offers an active area of 33.84 (W) × 45.12 (H) mm and an outline dimension of 40.4 (W) × 56.48 (H) mm. With a brightness of 160 cd/m², it ensures readable performance under both ambient and low-light conditions, making it suitable for cycling computer and bike display applications. It provides viewing angles of 35/35/35/65 (L/R/U/D) and operates within a temperature range of -20°C to 70°C (storage: -30°C to 80°C). This module does not include a touch panel.

More 2.2 Inch Cycling Computer Bike Display For Reference
ET022QV02-R (240×320, CPU/RGB, LCM, 160nits, -20~70°C, 40.4×56.48mm)
ET022LQ03-K (240×320, CPU/RGB/SPI , LCM, 1170nits, -20~70°C, 41.7×56.16mm)
COM22H2P84ULC (240×320, CPU, LCM, 400nits, -20~70°C, 38.64×53.72mm)
TN0216ANVNANN-GN00 (320×176, SPI, LCM, -25~80°C, 51.1×31.85mm)
ET022QV01-H (640×320, MIPI, LCM, 900nits, -20~70°C, 51.94×31.39mm)
