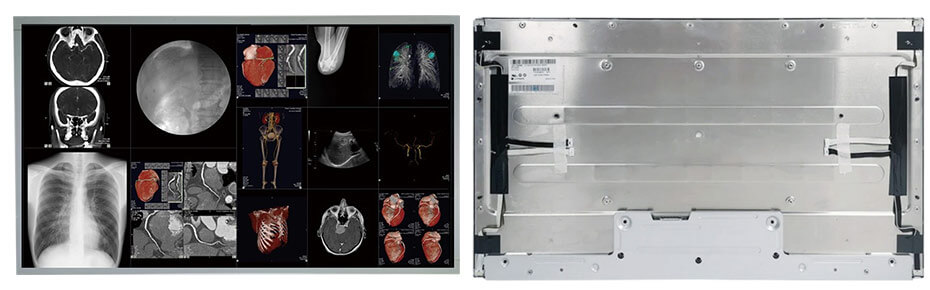

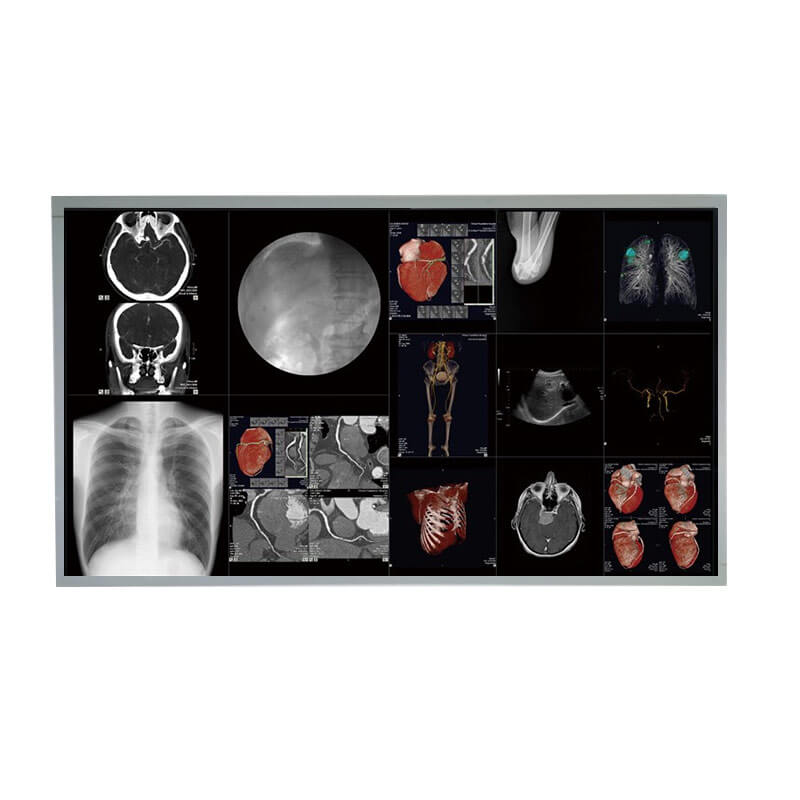

LB315WRM-SVA1 32 Inch 4K LCD Display 3840x2160 V-by-One 8 lane IPS LCD Module

32 Inch 4k Display Overview
LB315WRM-SVA1 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 697.306(W)×392.234(H) mm, outline size of 730.7(W)×425.2(H) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 6.00/6.30Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LB315WRM-SVA1 can provides 1000 cd/m² display brightness 1300:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Direct light type and have a working life time of 30K hours, external backlight driver is additionally needed. LB315WRM-SVA1 utilizes V-by-One 8 lane as it's signal inputting systerm, which connected by 51 pins Connector with power supply voltage of 10V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 32 Inch 4k Display For Reference
LM315WR1-SSB1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.11x405.48mm)
LM315WR1-SSB2 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 709.4x405.85mm)
LM315WR5-SSA1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.1x411.4mm)
LM315WR6-SSA1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 709.4x405.95mm)
LM315WR4-SSA1 (LCM, 3840x2160, eDP, 750nits, 0~50°C, 713.1x415.25mm)
LB315WR6-SSZ1 (LCM, 3840x2160, eDP, 1000nits, 5~50°C, 730.7x425.2mm)
LM315WR7-SSA1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 709.4x405.95mm)
LM315WR7-SSB1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 709.4x405.95mm)
LM315STA-SSA1 (LCM, 6144x3456, eDP, 450nits, 0~50°C, 713.6x408.75mm)
LM315STA-SSB1 (LCM, 6144x3456, eDP, 450nits, 0~50°C, 713.6x408.75mm)
LB315WRM-SVA1 (LCM, 3840x2160, V-by-One, 1000nits, 0~50°C, 730.7x425.2mm)
LB315WRM-SVA3 (LCM, 3840x2160, V-by-One, 1000nits, 0~50°C, 730.7x425.2mm)
LM315QU1-SSA2 (LCM, 7680x4320 , V-by-One, 400nits, 0~50°C, 717.8x412.5mm)
LW315PQ2-HSG1 (LCM, 3840x2160, V-by-One, 275nits, 0~45°C, 709.68x407.43mm)
M320QAN02.6 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 721.88x417.87mm)
M320QAN02.3 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 721.88x417.93mm)
M320QAN02.A (LCM, 3840x2160, eDP, 400nits, 0~50°C, 721.88x417.78mm)
G320ZAN02.2(LCM, 3840x2160, eDP, 850nits, 0~50°C, 727.3x424.5mm)
G320ZAN02.1 (LCM, 3840x2160, V-by-One, 850nits, 0~50°C, 727.3x424.5mm)
M315WAN01.R (LCM, 6016x3384, eDP, 400nits, 0~50°C, 709.4x411.9mm)
MV315QUM-N10 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.4x412mm)
MV315QUM-N20 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.4x412mm)
MV315QUM-N40 (LCM, 3840x2160, eDP, 550nits, 0~50°C, 709.5x412mm)
MV315QUM-N70 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 709.4x412.2mm)
MV315QUM-NM0 (LCM, 3840x2160, eDP, 600nits, 0~50°C, 709.6x417.8mm)
ME315QUM-NF0 (LCM, 3840x2160, V-by-One, 360nits, 0~50°C, 709.14x417.75mm)
ET320UH01-R (LCM, 3840x2160, LVDS, 800nits, 0~50°C, 731.96x431.4mm)
ET320UH02-R (LCM, 3840x2160, LVDS, 2500nits, 0~50°C, 731.9x431.4mm)
ET320FUH01-R (LCM, 7680x4320, LVDS, 1500nits, 0~50°C, 731.96x431.4mm)
LS315C1VX01 (LCM, 7680x4320, V-by-One, 800nits, 0~40°C, 729.8x424.8mm)
