LM315STA-SSB1 32 Inch 8K LCD Display 6144x3456 eDP (16 Lanes) IPS LCD Module

32 Inch 8k Display Overview
LM315STA-SSB1 is a 32.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.LM315STA-SSB1 supports display 6144(RGB)×3456 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 696.73(W)×391.91(H) mm, outline size of 713.6(W)×408.7(H)×17.3(D) mm, with surface treament of Antiglare (Haze 25%), Hard coating (3H), net weight of 3.83/4.02Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM315STA-SSB1 can provides 450 cd/m² display brightness 2000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 96% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. LM315STA-SSB1 utilizes eDP (16 Lanes) as it's signal inputting systerm, which connected by 120 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

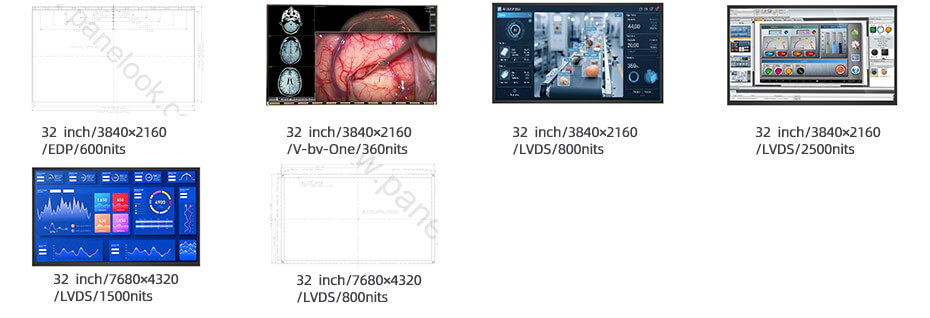

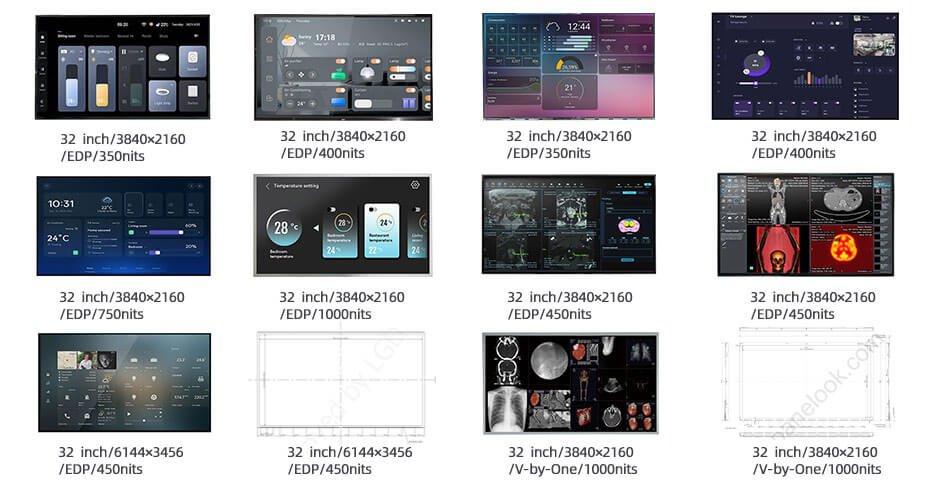

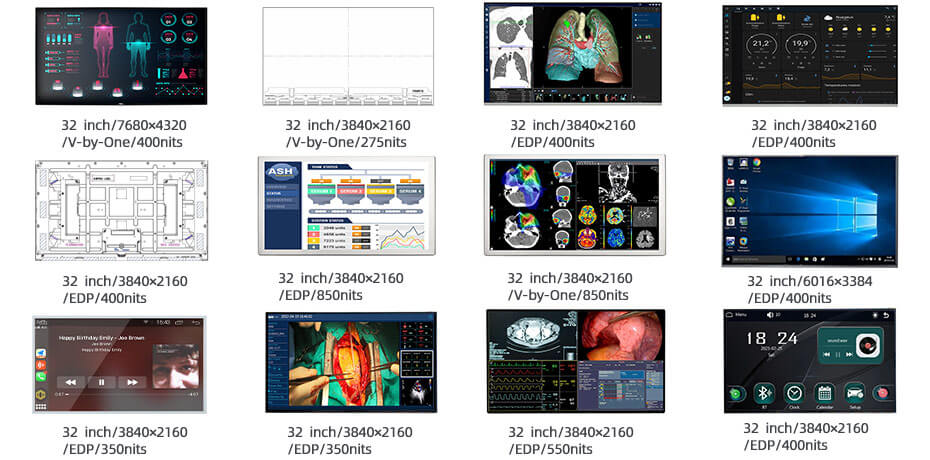

More 32 Inch 4k 8k Display For Reference
LM315WR1-SSB1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.11x405.48mm)
LM315WR1-SSB2 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 709.4x405.85mm)
LM315WR5-SSA1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.1x411.4mm)
LM315WR6-SSA1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 709.4x405.95mm)
LM315WR4-SSA1 (LCM, 3840x2160, eDP, 750nits, 0~50°C, 713.1x415.25mm)
LB315WR6-SSZ1 (LCM, 3840x2160, eDP, 1000nits, 5~50°C, 730.7x425.2mm)
LM315WR7-SSA1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 709.4x405.95mm)
LM315WR7-SSB1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 709.4x405.95mm)
LM315STA-SSA1 (LCM, 6144x3456, eDP, 450nits, 0~50°C, 713.6x408.75mm)
LM315STA-SSB1 (LCM, 6144x3456, eDP, 450nits, 0~50°C, 713.6x408.75mm)
LB315WRM-SVA1 (LCM, 3840x2160, V-by-One, 1000nits, 0~50°C, 730.7x425.2mm)
LB315WRM-SVA3 (LCM, 3840x2160, V-by-One, 1000nits, 0~50°C, 730.7x425.2mm)
LM315QU1-SSA2 (LCM, 7680x4320 , V-by-One, 400nits, 0~50°C, 717.8x412.5mm)
LW315PQ2-HSG1 (LCM, 3840x2160, V-by-One, 275nits, 0~45°C, 709.68x407.43mm)
M320QAN02.6 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 721.88x417.87mm)
M320QAN02.3 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 721.88x417.93mm)
M320QAN02.A (LCM, 3840x2160, eDP, 400nits, 0~50°C, 721.88x417.78mm)
G320ZAN02.2(LCM, 3840x2160, eDP, 850nits, 0~50°C, 727.3x424.5mm)
G320ZAN02.1 (LCM, 3840x2160, V-by-One, 850nits, 0~50°C, 727.3x424.5mm)
M315WAN01.R (LCM, 6016x3384, eDP, 400nits, 0~50°C, 709.4x411.9mm)
MV315QUM-N10 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.4x412mm)
MV315QUM-N20 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.4x412mm)
MV315QUM-N40 (LCM, 3840x2160, eDP, 550nits, 0~50°C, 709.5x412mm)
MV315QUM-N70 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 709.4x412.2mm)
MV315QUM-NM0 (LCM, 3840x2160, eDP, 600nits, 0~50°C, 709.6x417.8mm)
ME315QUM-NF0 (LCM, 3840x2160, V-by-One, 360nits, 0~50°C, 709.14x417.75mm)
ET320UH01-R (LCM, 3840x2160, LVDS, 800nits, 0~50°C, 731.96x431.4mm)
ET320UH02-R (LCM, 3840x2160, LVDS, 2500nits, 0~50°C, 731.9x431.4mm)
ET320FUH01-R (LCM, 7680x4320, LVDS, 1500nits, 0~50°C, 731.96x431.4mm)
LS315C1VX01 (LCM, 7680x4320, V-by-One, 800nits, 0~40°C, 729.8x424.8mm)
