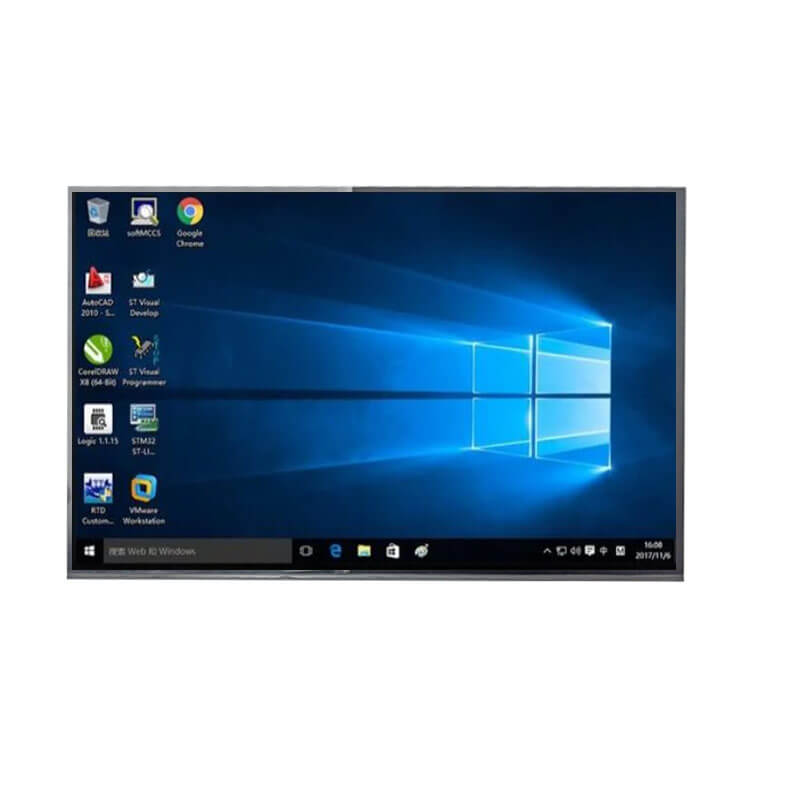

M315WAN01.R 32 Inch 8K LCD Display 6016x3384 eDP (16 Lanes) IPS LCD Module

32 Inch 8k Display Overview

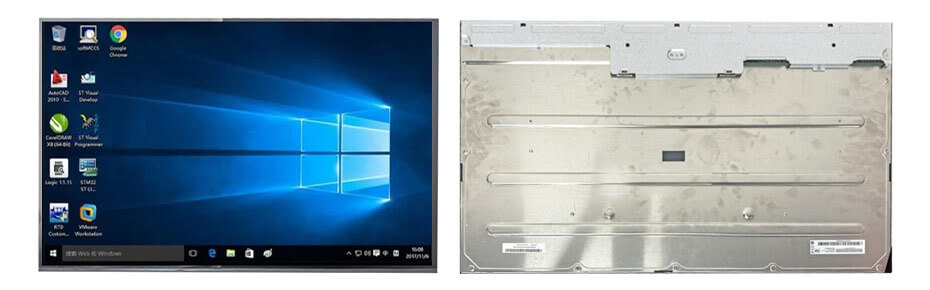

M315WAN01.R supports display 6016(RGB)×3384 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 697.194(W)×392.172(H) mm, outline size of 709.4(W)×411.9(H)×14.9(D) mm, with surface treament of Antiglare (Haze 50%), Reflection 2.9% (Typ.), net weight of 3.36/3.53Kgs (Typ./Max.). As a AHVA, Normally Black, Transmissive LCM product, M315WAN01.R can provides 400 cd/m² display brightness 1500:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 99% (DCI-P3). This product adopted WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. M315WAN01.R utilizes eDP (16 Lanes) as it's signal inputting systerm, which connected by 102 pins Connector with power supply voltage of 10.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 32 Inch 4k Display For Reference
LM315WR1-SSB1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.11x405.48mm)
LM315WR1-SSB2 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 709.4x405.85mm)
LM315WR5-SSA1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.1x411.4mm)
LM315WR6-SSA1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 709.4x405.95mm)
LM315WR4-SSA1 (LCM, 3840x2160, eDP, 750nits, 0~50°C, 713.1x415.25mm)
LB315WR6-SSZ1 (LCM, 3840x2160, eDP, 1000nits, 5~50°C, 730.7x425.2mm)
LM315WR7-SSA1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 709.4x405.95mm)
LM315WR7-SSB1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 709.4x405.95mm)
LM315STA-SSA1 (LCM, 6144x3456, eDP, 450nits, 0~50°C, 713.6x408.75mm)
LM315STA-SSB1 (LCM, 6144x3456, eDP, 450nits, 0~50°C, 713.6x408.75mm)
LB315WRM-SVA1 (LCM, 3840x2160, V-by-One, 1000nits, 0~50°C, 730.7x425.2mm)
LB315WRM-SVA3 (LCM, 3840x2160, V-by-One, 1000nits, 0~50°C, 730.7x425.2mm)
LM315QU1-SSA2 (LCM, 7680x4320 , V-by-One, 400nits, 0~50°C, 717.8x412.5mm)
LW315PQ2-HSG1 (LCM, 3840x2160, V-by-One, 275nits, 0~45°C, 709.68x407.43mm)
M320QAN02.6 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 721.88x417.87mm)
M320QAN02.3 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 721.88x417.93mm)
M320QAN02.A (LCM, 3840x2160, eDP, 400nits, 0~50°C, 721.88x417.78mm)
G320ZAN02.2(LCM, 3840x2160, eDP, 850nits, 0~50°C, 727.3x424.5mm)
G320ZAN02.1 (LCM, 3840x2160, V-by-One, 850nits, 0~50°C, 727.3x424.5mm)
M315WAN01.R (LCM, 6016x3384, eDP, 400nits, 0~50°C, 709.4x411.9mm)
MV315QUM-N10 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.4x412mm)
MV315QUM-N20 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.4x412mm)
MV315QUM-N40 (LCM, 3840x2160, eDP, 550nits, 0~50°C, 709.5x412mm)
MV315QUM-N70 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 709.4x412.2mm)
MV315QUM-NM0 (LCM, 3840x2160, eDP, 600nits, 0~50°C, 709.6x417.8mm)
ME315QUM-NF0 (LCM, 3840x2160, V-by-One, 360nits, 0~50°C, 709.14x417.75mm)
ET320UH01-R (LCM, 3840x2160, LVDS, 800nits, 0~50°C, 731.96x431.4mm)
ET320UH02-R (LCM, 3840x2160, LVDS, 2500nits, 0~50°C, 731.9x431.4mm)
ET320FUH01-R (LCM, 7680x4320, LVDS, 1500nits, 0~50°C, 731.96x431.4mm)
LS315C1VX01 (LCM, 7680x4320, V-by-One, 800nits, 0~40°C, 729.8x424.8mm)
