LW315PQ2-HSG1 32 Inch 4K OLED Display 3840x2160 V-by-One 32 lane IPS LCD Module

32 Inch 4k Display Overview

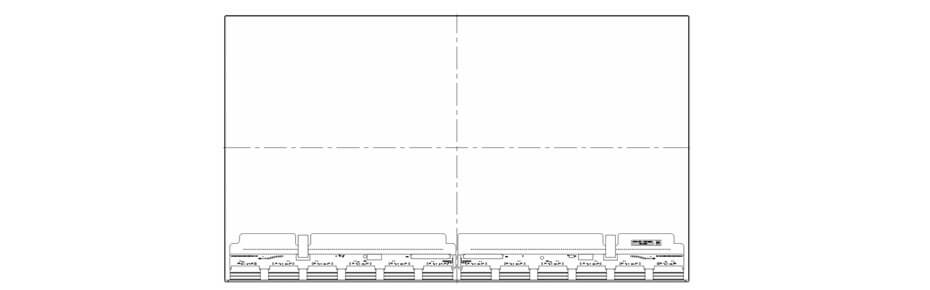

LW315PQ2-HSG1 supports display 3840(RGBW)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGBW Vertical Stripe. As for mechanical detail, it features active area of 699.48(W)×394.73(H) mm, outline size of 709.68(W)×407.43(H) mm, with surface treament of Antiglare (Haze 35%), Reflection 2.0% (Typ.), net weight of 680g (Typ.). LW315PQ2-HSG1 can provides 275 cd/m² display brightness 1500000:1 transimissive contrast ratio, 60/60/60/60 (Min.) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 0.03 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 97% (DCI-P3). This product emiting itself and have a working life time of 30K hours. LW315PQ2-HSG1 utilizes V-by-One 32 lane as it's signal inputting systerm, which connected by 172 pins Connector with power supply voltage of 12.0/19.5V (Typ.)(VDD/ELVDD). It's typical vertical frame rate (Fv) is 240Hz.

More 32 Inch 4k Display For Reference
LM315WR1-SSB1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.11x405.48mm)
LM315WR1-SSB2 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 709.4x405.85mm)
LM315WR5-SSA1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.1x411.4mm)
LM315WR6-SSA1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 709.4x405.95mm)
LM315WR4-SSA1 (LCM, 3840x2160, eDP, 750nits, 0~50°C, 713.1x415.25mm)
LB315WR6-SSZ1 (LCM, 3840x2160, eDP, 1000nits, 5~50°C, 730.7x425.2mm)
LM315WR7-SSA1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 709.4x405.95mm)
LM315WR7-SSB1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 709.4x405.95mm)
LM315STA-SSA1 (LCM, 6144x3456, eDP, 450nits, 0~50°C, 713.6x408.75mm)
LM315STA-SSB1 (LCM, 6144x3456, eDP, 450nits, 0~50°C, 713.6x408.75mm)
LB315WRM-SVA1 (LCM, 3840x2160, V-by-One, 1000nits, 0~50°C, 730.7x425.2mm)
LB315WRM-SVA3 (LCM, 3840x2160, V-by-One, 1000nits, 0~50°C, 730.7x425.2mm)
LM315QU1-SSA2 (LCM, 7680x4320 , V-by-One, 400nits, 0~50°C, 717.8x412.5mm)
LW315PQ2-HSG1 (LCM, 3840x2160, V-by-One, 275nits, 0~45°C, 709.68x407.43mm)
M320QAN02.6 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 721.88x417.87mm)
M320QAN02.3 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 721.88x417.93mm)
M320QAN02.A (LCM, 3840x2160, eDP, 400nits, 0~50°C, 721.88x417.78mm)
G320ZAN02.2(LCM, 3840x2160, eDP, 850nits, 0~50°C, 727.3x424.5mm)
G320ZAN02.1 (LCM, 3840x2160, V-by-One, 850nits, 0~50°C, 727.3x424.5mm)
M315WAN01.R (LCM, 6016x3384, eDP, 400nits, 0~50°C, 709.4x411.9mm)
MV315QUM-N10 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.4x412mm)
MV315QUM-N20 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 709.4x412mm)
MV315QUM-N40 (LCM, 3840x2160, eDP, 550nits, 0~50°C, 709.5x412mm)
MV315QUM-N70 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 709.4x412.2mm)
MV315QUM-NM0 (LCM, 3840x2160, eDP, 600nits, 0~50°C, 709.6x417.8mm)
ME315QUM-NF0 (LCM, 3840x2160, V-by-One, 360nits, 0~50°C, 709.14x417.75mm)
ET320UH01-R (LCM, 3840x2160, LVDS, 800nits, 0~50°C, 731.96x431.4mm)
ET320UH02-R (LCM, 3840x2160, LVDS, 2500nits, 0~50°C, 731.9x431.4mm)
ET320FUH01-R (LCM, 7680x4320, LVDS, 1500nits, 0~50°C, 731.96x431.4mm)
LS315C1VX01 (LCM, 7680x4320, V-by-One, 800nits, 0~40°C, 729.8x424.8mm)
