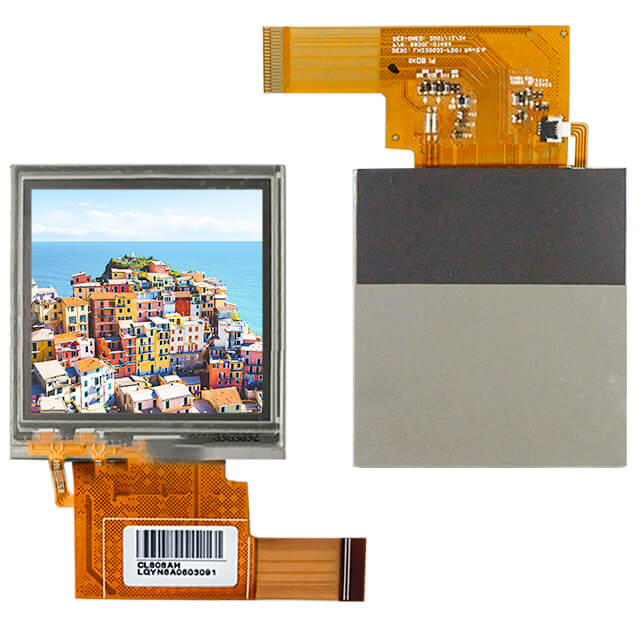

Good quality transflective square lcd screen sunlight readable display 320x320 2.2 inch lcd for handheld PDA

Part No.:LH220Q32-FD01
Size:2.2″ inch
Board Resolutions:320(RGB)x320
Panel Interface:Parallel RGB,39 pins FPC
Signal Input:TN,NormallyWhite,Transflective
Panel Power:3.0V(Typ.)
Outline Dimension:47.4x51.85(HxVxD)
Temperature Range:- / -

Product Description

Product size	2.2-inch	Type	LCM , a-Si TFT-LCD
Pixel Format	320(RGB)x320 206PPI	Configuration	RGB Vertical Stripe
Active Area	39.36 x 39.36 (H×V)	Outline Dim.	47.4 x 51.85 (H×V×D)
Bezel Area	-	Treatment	Hard coating (3H)
Luminance	160 cd/m² (Typ.)	Contrast Ratio	120 : 1 (Typ.) (TM) 5:1 (Typ.) (RF)
View Direction	-	Response Time	35 (Typ.)(Tr+Td) ms
Viewing Angle	45/45/40/50 (Typ.)(CR≥5)	Operating Mode	TN, Normally White, Transflective
Support Color	65K 45% NTSC	Light Source	3S1P WLED , No Driver
Weight	18.0g (Typ.)	Designed For	Mobile Phone
Frequency	-	Touch Panel	4-wire Resistive Touch
Interface Type	Parallel RGB , 39 pins FPC
Power Supply	3.0V (Typ.)
