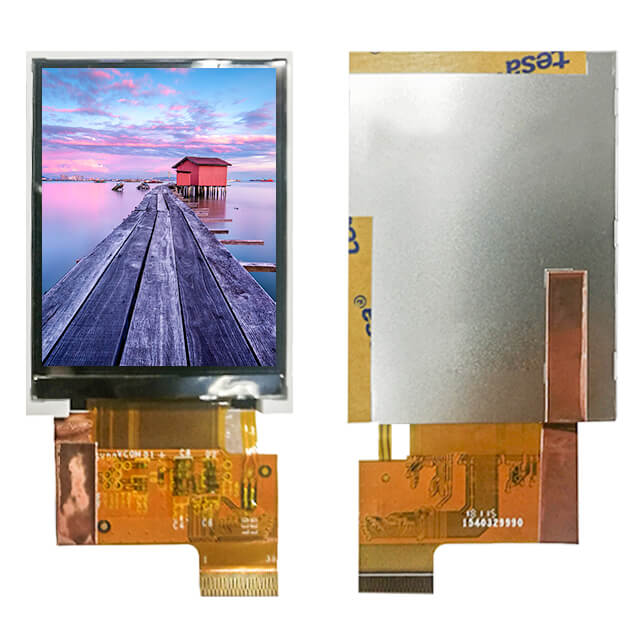

Original new In stock Transflective 2.2 inch LCD screen 240*320 lcd 39 pins RGB SPI for handheld&PDA

Part No.:TM022HDHT11
Size:2.2″ inch
Resolution:240x320
Panel Interface:Parallel RGB+SPI
Display mode:ECB,Transflective

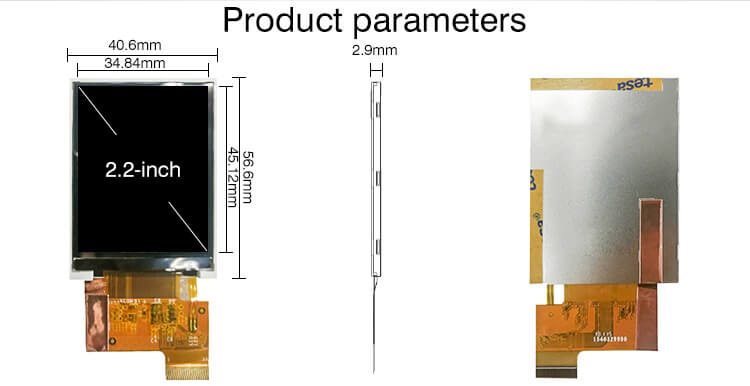

Outline Dimension:40.6x56.6mm
Active Area:33.84x45.12mm
Viewing Angle L/R/U/D:40/45/48/45 (Typ.)
Brightness（cd/m2）:90cd/m²(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

Product Description

Panel Brand	TIANMA	Panel Model	TM022HDHT11
Panel Size	2.2 inch	Panel Type	IGZO TFT-LCD, LCM
Resolution	240(RGB)*320	Pixel Format	RGB Vertical Stripe
Display Area	33.84(W)×45.12(H) mm	Luminance	90 cd/m² (Typ.)
Bezel Area	34.84(H)×46.12(V) mm	Outline	40.6(H)×56.6(V) ×2.9(D) mm
Viewing Angle	40/45/48/45	Contrast Ratio	120:1
Good View at	40/45/48/45	Response	35 (Typ.)(Tr+Td)
Interface Type	Parallel RGB (1 ch, 6-bit) + SPI , 39 pins , FPC	Light Source	WLED
Support Color	262K 50% NTSC	Touchscreen	Without
Weight	-
Power Supply	2.8V (Typ.)(VDD)
Environment	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
