4 Inch OLCD Display 960×160 MIPI AMOLED Display With Capacitive Touch

4 Inch AMOLED Display Overview

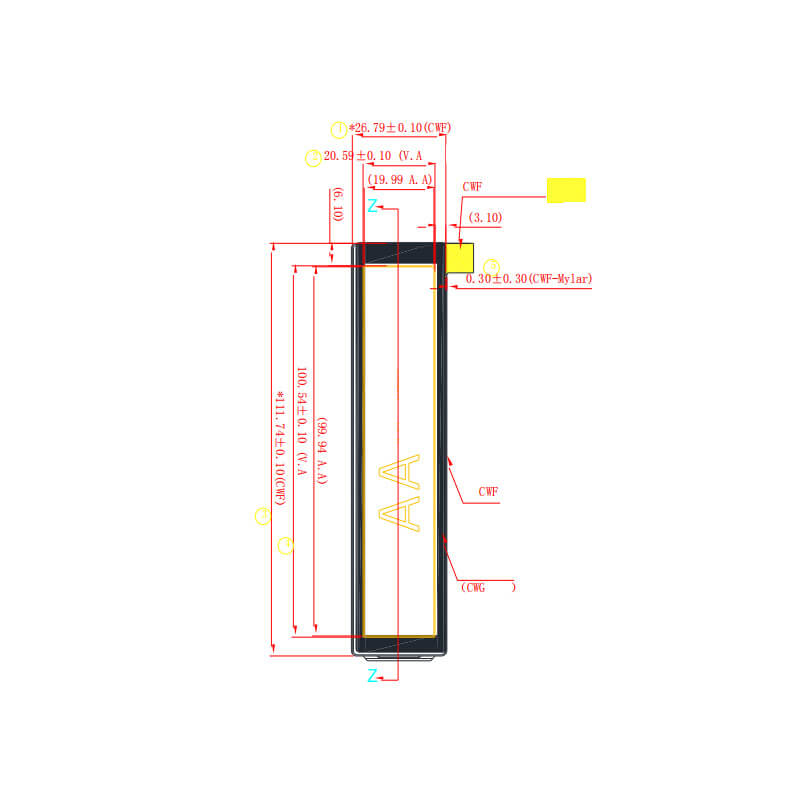

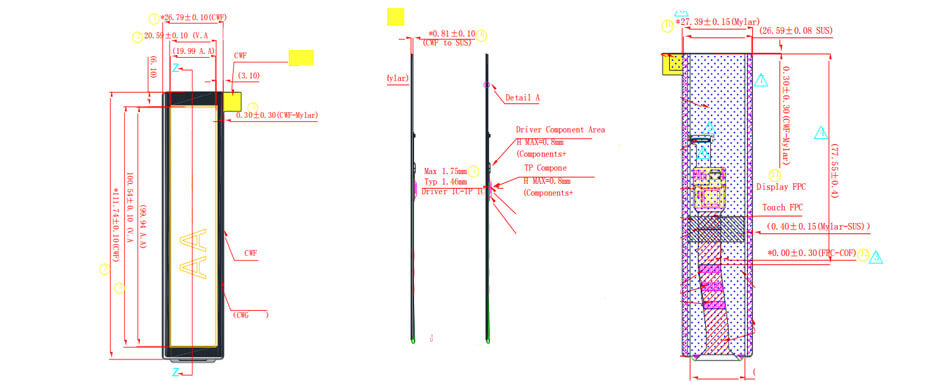

ET-G1323TC101FF-002 is a 4 inch diagonal AMOLED display screen product, featuring self-emissive technology. ET-G1323TC101FF-002 supports a resolution of 960×160 with an approximate 6:1 aspect ratio (W:H) and offers wide viewing angles of 85/85/85/85 (L/R/U/D). It features an active area of 19.99(W) × 99.94(H) mm and an outline dimension of 27.39(W) × 111.74(H) mm, and adopts a MIPI interface for signal transmission. The display provides a brightness of 350 nits and operates within a temperature range of -20°C to 70°C (storage: -30°C to 80°C). With integrated capacitive touch functionality, ET-G1323TC101FF-002 is suitable for interactive applications requiring compact, high-quality display performance.

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing
