0.48"-5" LCD Display (1.45")

1.45 Inch High Brightness Display 750nits Sunlight Readable IPS 172x320 Serial RGB TFT LCD Display

Part No.:ET015QV01-TS
Size:1.45″ inch
Resolution:172x320
Panel Interface:Serial RGB
Display mode:Transmissive

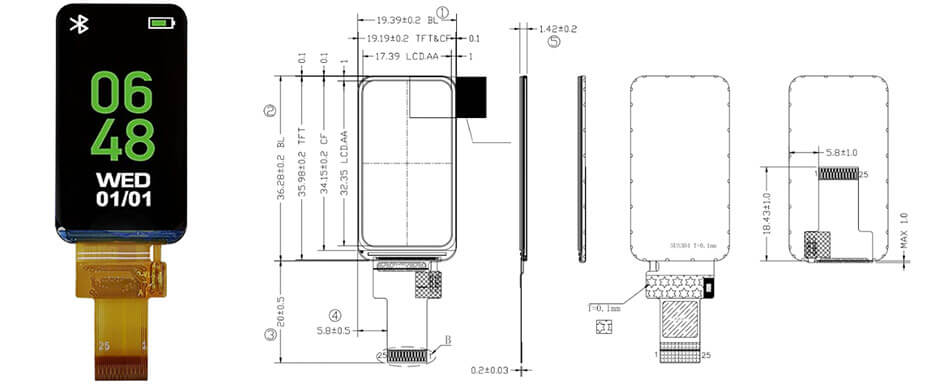

Outline Dimension:19.39x36.28mm
Active Area:17.39x32.35mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:750(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

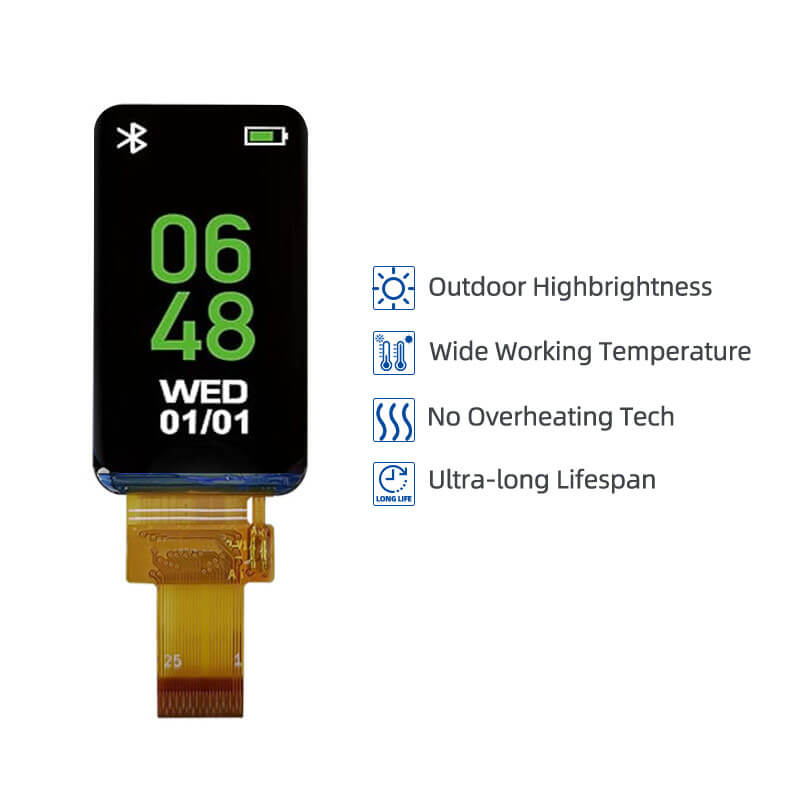

1.45 Inch High Brightness LCD Display Overview
ET015QV01-TS is a 1.45-inch diagonal high-brightness IPS TFT LCD display, featuring a resolution of 172×320 with a Serial RGB interface. This transmissive display has an active area of 17.39(W)×32.35(H) mm, with an outline size of 19.39×36.28 mm. ET015QV01-TS provides a typical brightness of 750 cd/m², supports a viewing angle of 80°/80°/80°/80°, operates within –20 °C to 70 °C (storage –30 °C to 80 °C), and does not include touch functionality.

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
